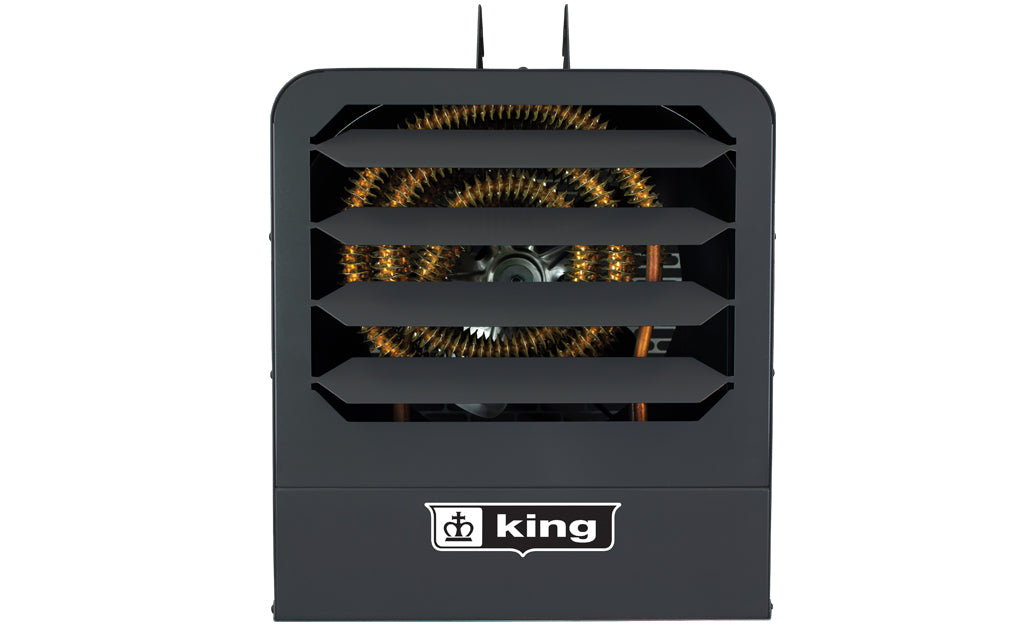

King Electric KB2404-1-T-B1 Unit Heater 4kW

Product Description

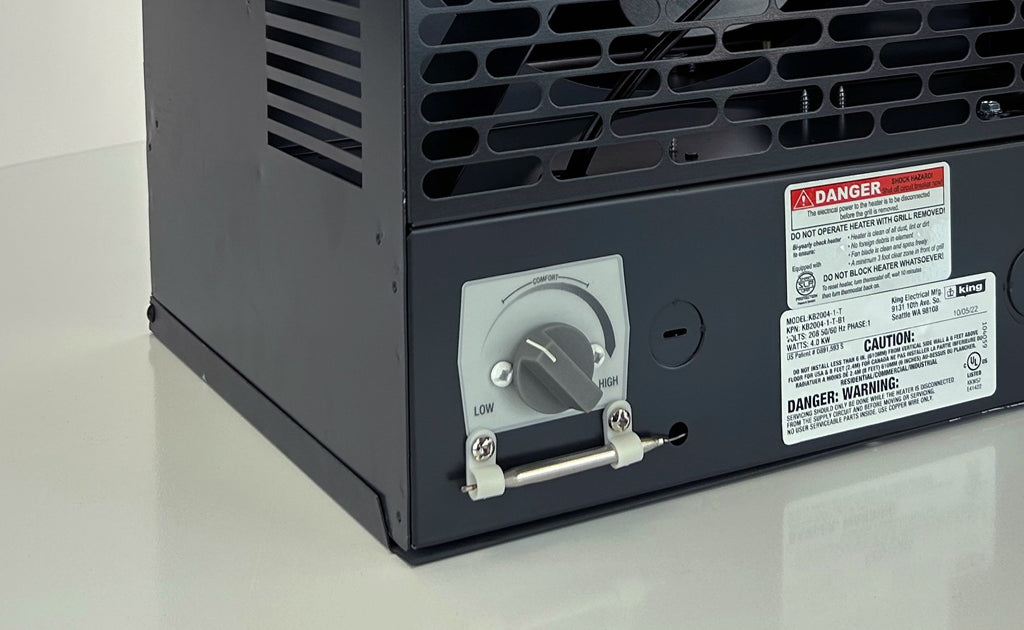

The King Electric KB2404-1-T-B1 unit heater is suitable for both primary and supplemental heating in spacious or open areas. This heater has spiral finned steel elements designed to provide uniform air distribution throughout the space. It includes adjustable louvers to control airflow direction and a versatile mounting bracket for installation on walls or ceilings. The built-in thermostat and a permanently lubricated motor enhance its functionality.

• Designed for primary or supplemental heat in large areas.

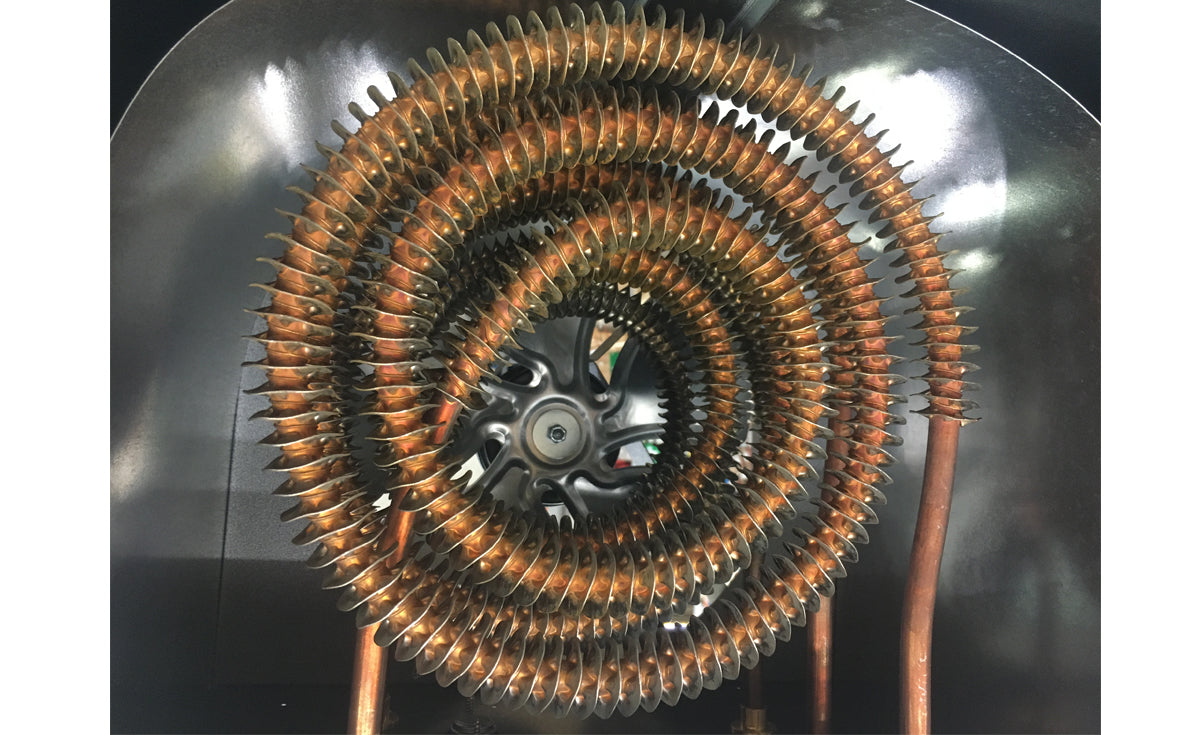

• Features spiral finned steel elements for even air distribution.

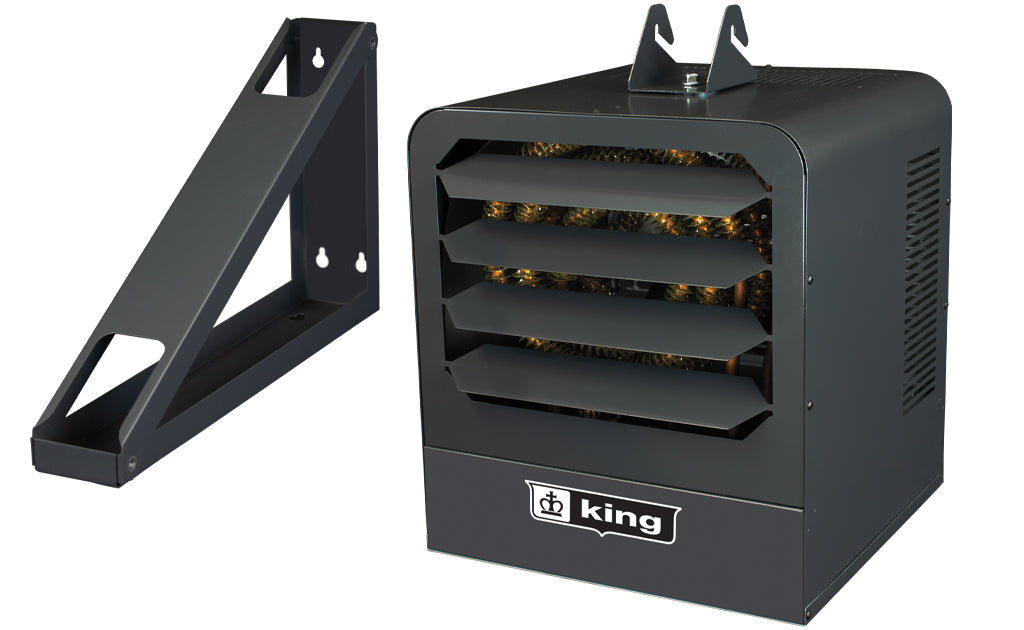

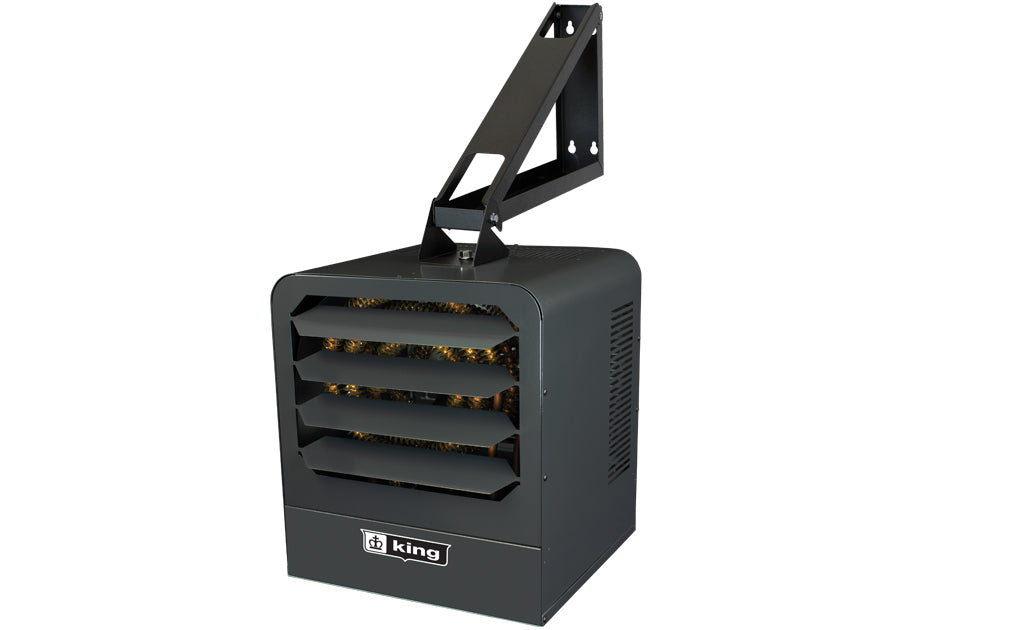

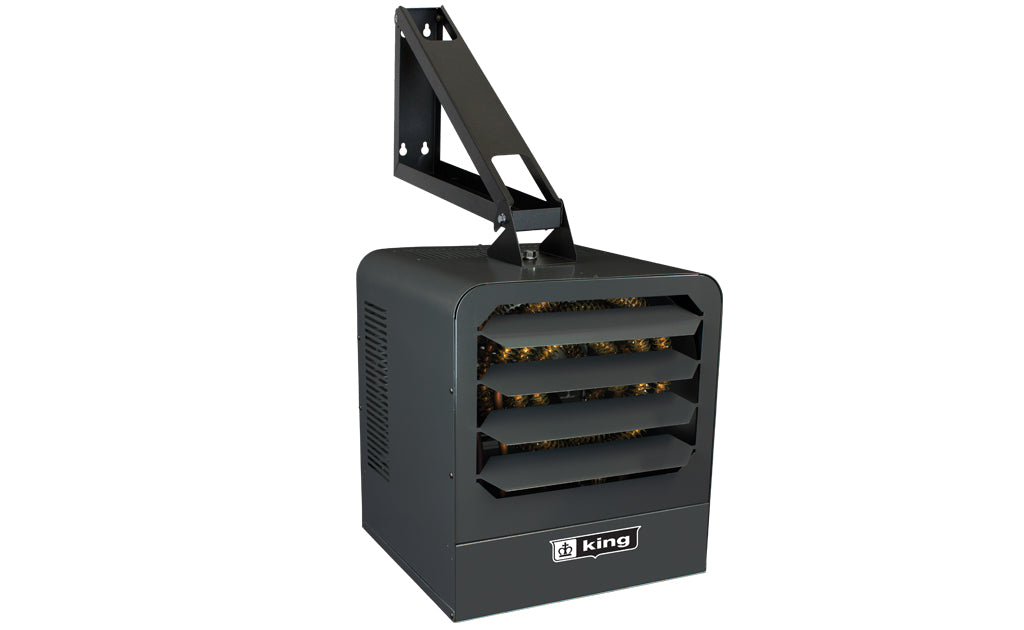

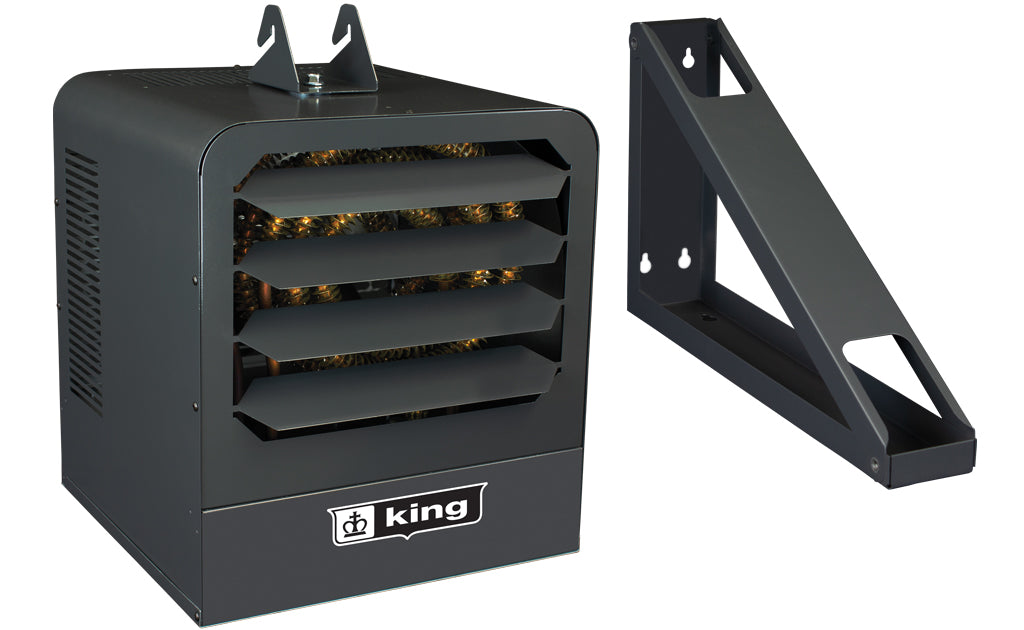

• Includes adjustable louvers and universal mounting bracket.

Product Highlights

Product Information

Standard Information

• Brand: King Electric
• MPN: KB2404-1-T-B1

Technical Specifications

• Power: 4kW
• BTU: 13,652
• Input Voltage: 240/208
• Input Phase: 1 Ph
• Input Current: 16.7/14.4
• Air Flow (CFM): 520
• Temperature Rise: 24
• Air Throw: 15ft.
• Maximum Mounting Height: 8ft.
• Motor Power: 9W
• Control Style: Single Pole
• Material: Steel
• Color: Gray
• Weight: 30.5 lbs
• Product Dimensions: 16.50 inches X 15 inches X 11 inches
• Certifications: cUL/UL Listed
• Warranty: 5 Yr
• Made in USA: Yes
