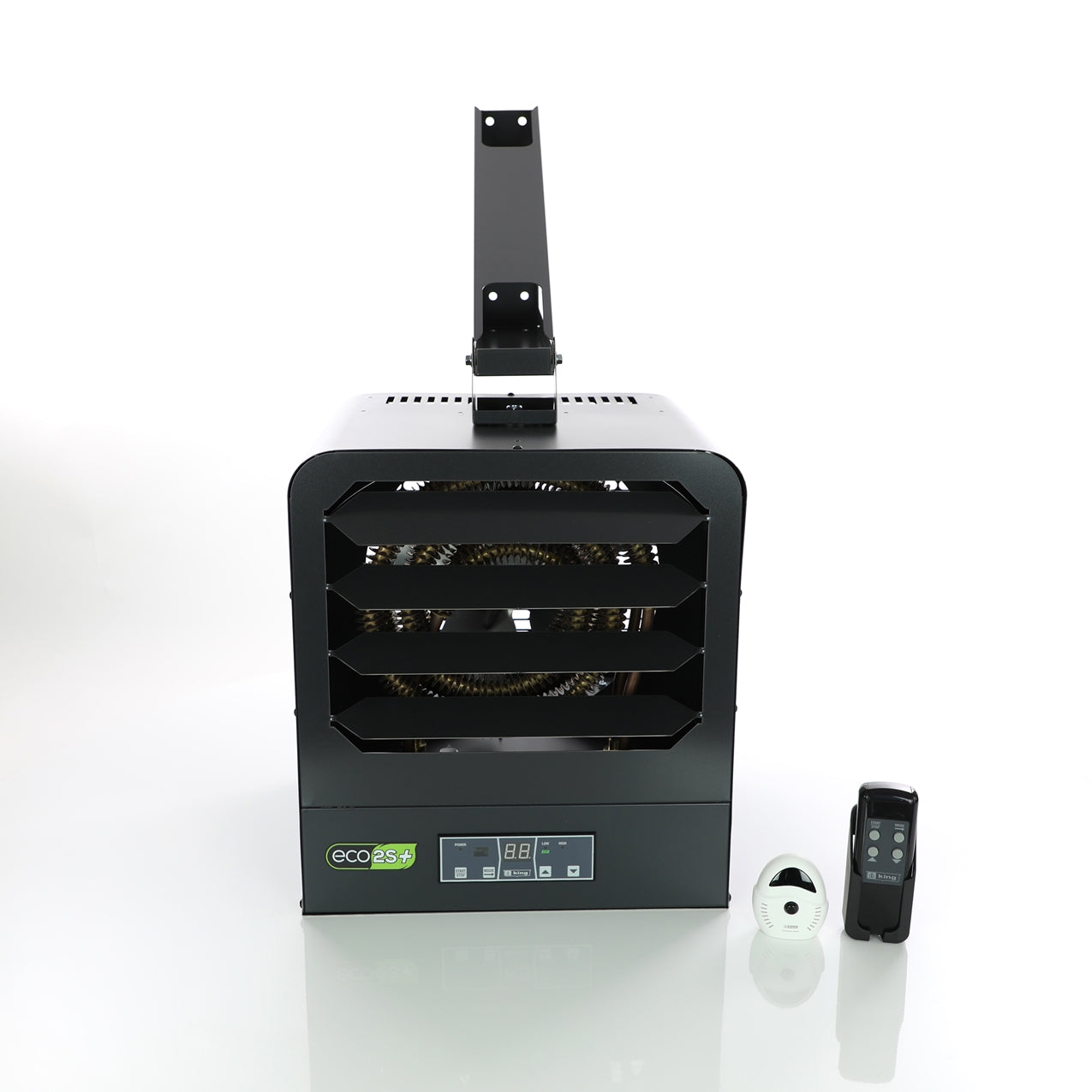

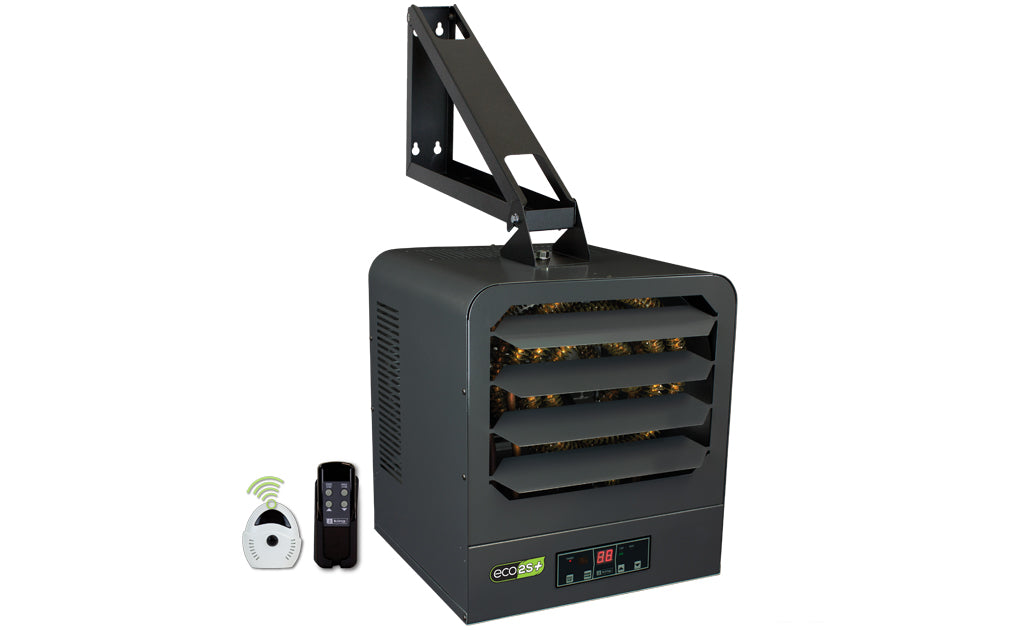

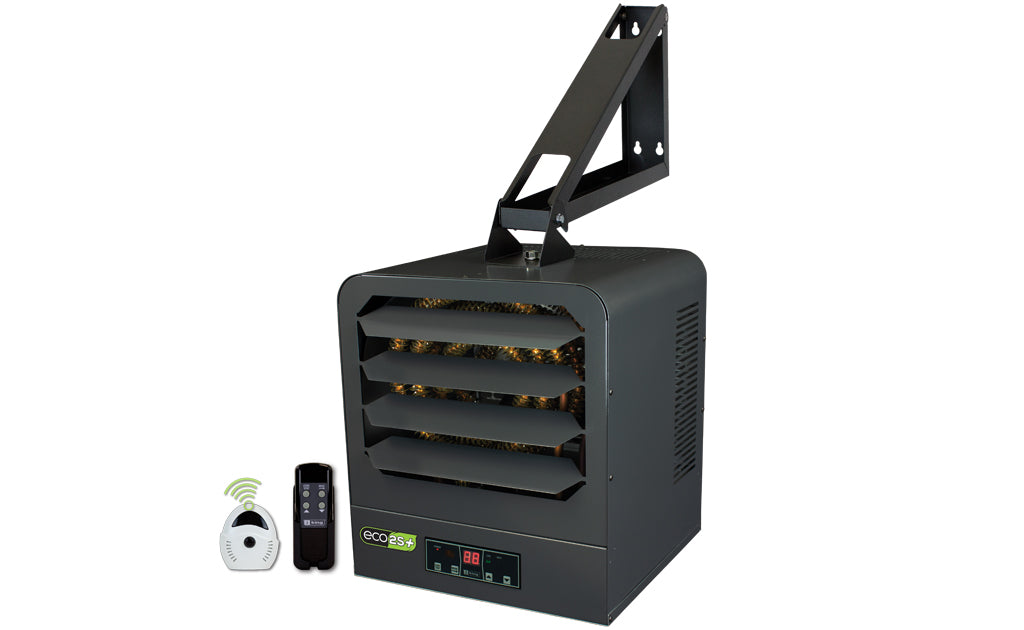

King Electric KB2010-1-ECO2S-PLUS KB Electronic 2-Stage Unit Heater 208V 10Kw 1Ph 24V Control W/Remote Sensor

Product Description

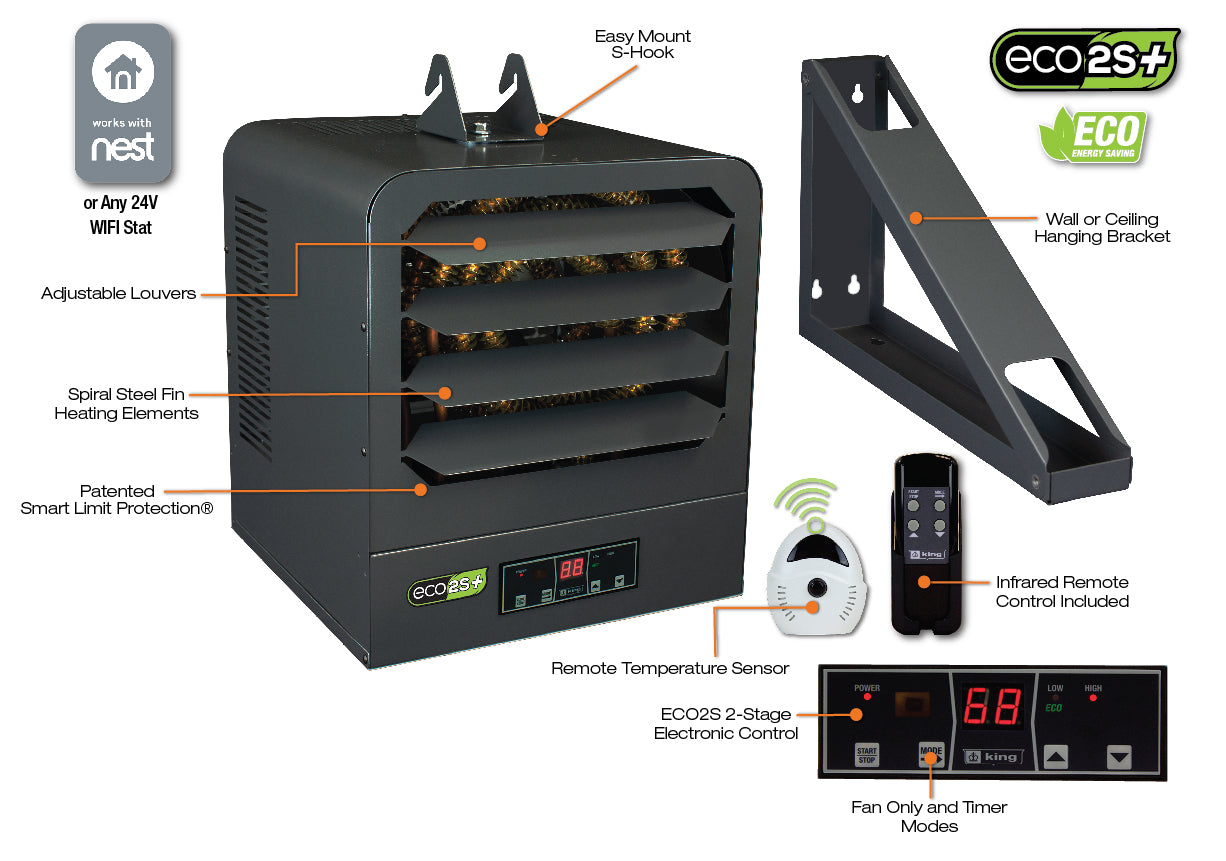

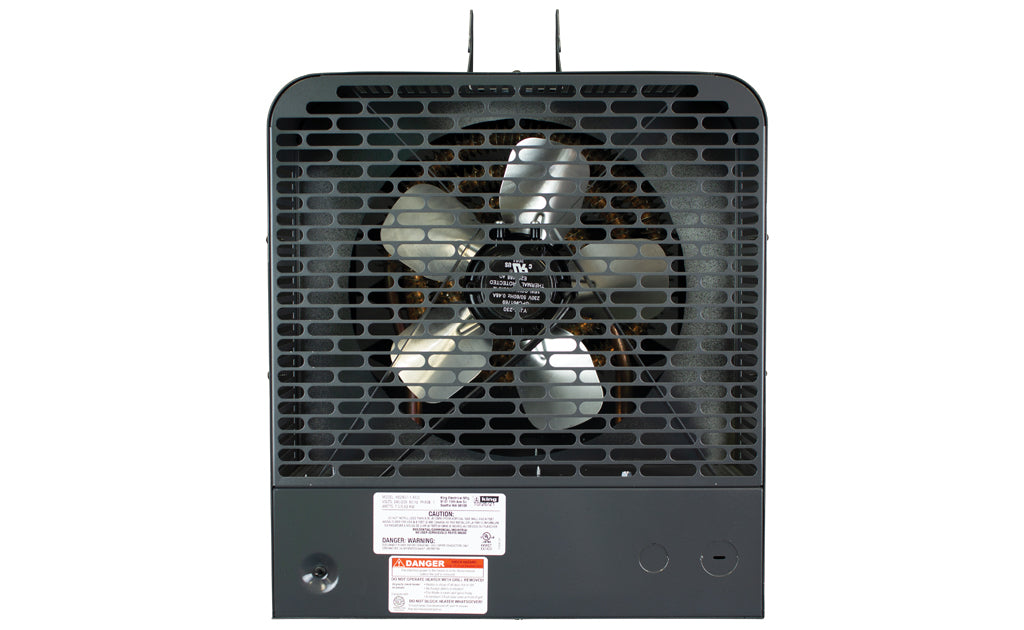

The King Electric KB2010-1-ECO2S-PLUS is a KB Electronic 2-Stage Unit Heater, operating at 208V, 10Kw, 1Ph, with 24V Control and a remote sensor. Designed for warehouses, stores, and garages, it provides primary or supplemental heat. Features include a dynamically balanced fan blade and spiral steel elements for efficient air distribution and cooler element operation, prolonging the heater's life.

• Smart ECO2S+ Energy-Saving Design
• 2-Stage Heating: Automatically Uses Lowest Wattage Needed
• Includes ECO2S Remote Temperature Sensor

Product Highlights

This unit heater offers energy-efficient 2-stage heating, remote control, and compatibility with Nest and other WiFi thermostats. It also features summer fan only and timer modes.

Product Information

Standard Information

• Brand: KING ELECTRIC
• Manufacturer Part Number: KB2010-1-ECO2S-PLUS
• Country of Origin: USA

Technical Specifications

• Volts: 208
• Watts: 9980
• Amps: 48
• CFM: 800
• Phase: 1
• BTUH: 34,062
• Temp Rise: 39.0
• Air Throw: 24ft.
• Thermostat Temperature Range: 40℉ to 95℉
• Part Number: KB2010-1-ECO2S-PLUS
• Certificate: cUL/UL Listed
• Electrical Phase: 1 Ph
• Made in USA: YES
• Material: Steel
• Maximum Amperage: 48.1 Amp
• Maximum Voltage: 208V
• Warranty: 5 Yr
• Wattage: 10000W
• Volts AC: 208
