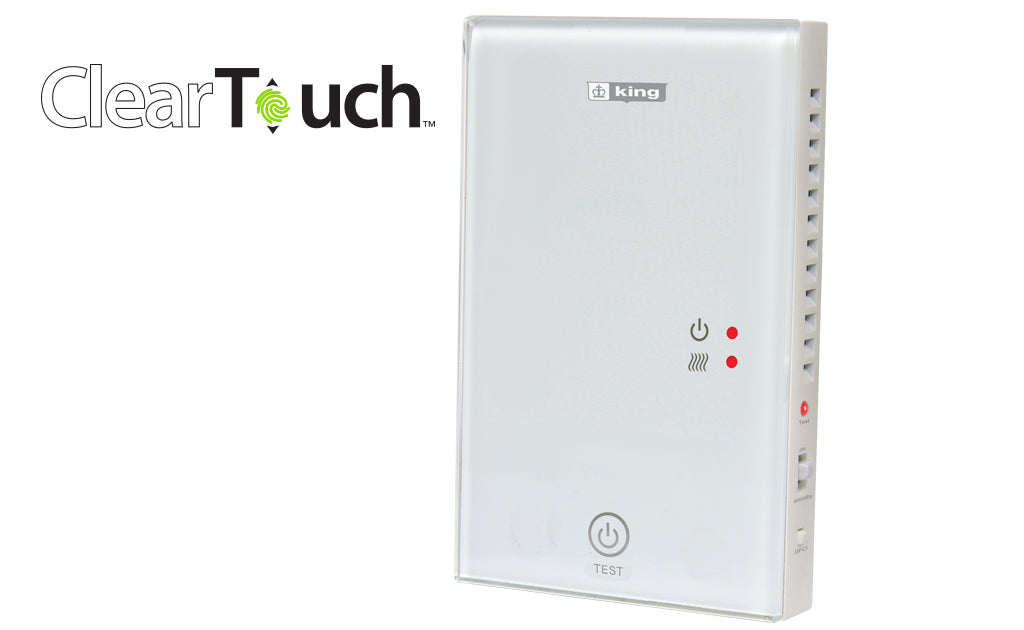

King Electric K312RELAY Thermostat Slave Relay 120/208/240V

Product Description

The King Electric K312RELAY is a thermostat slave relay designed for dual voltage systems of one hundred twenty, two hundred eight, or two hundred forty volts. This relay can handle a load of up to fifteen amps and is used to control larger heated areas when the load exceeds that capacity.

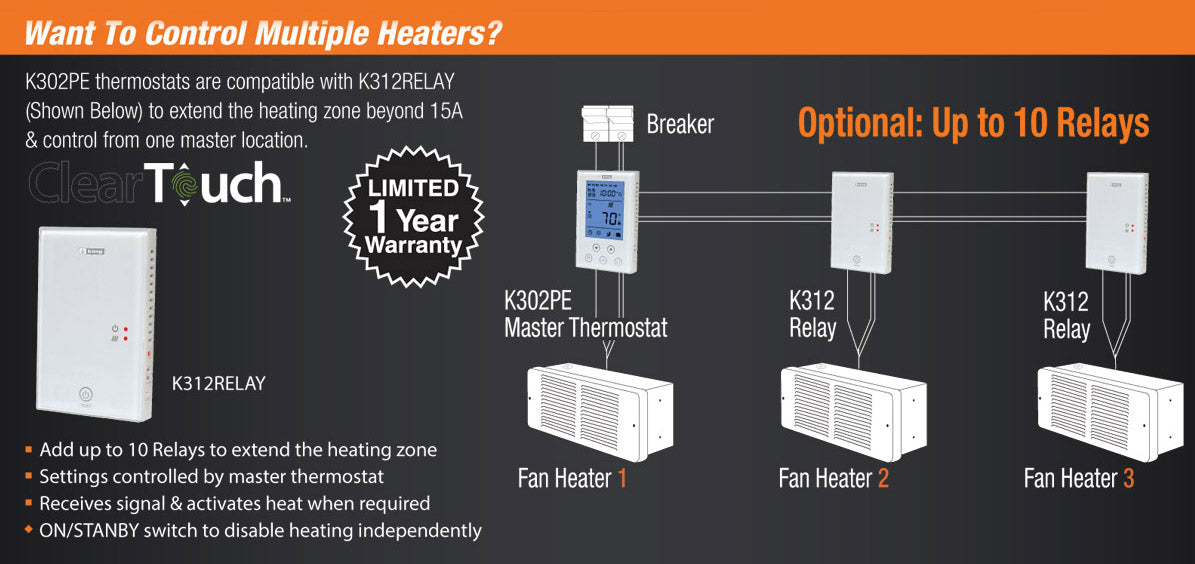

• Links with K302PE and K322E for single control of larger heating areas.
• Receives signals from the master thermostat to activate the heating as needed.
• ON/STANDBY switch for independent control of heating zones.

Product Highlights

This relay allows for the addition of up to ten relays using low voltage wiring, which is ideal for expanding heating zones.

Product Information

Standard Information

• Brand: King Electric
• MPN: K312RELAY

Technical Specifications

• Power Supply: 120/208/240V
• Maximum Load: 15A
• Dimensions: 3.5 inches x 2.75 inches x 7.25 inches
• Design: Clear acrylic panel
• Control: Settings managed by the master thermostat
