Product Description

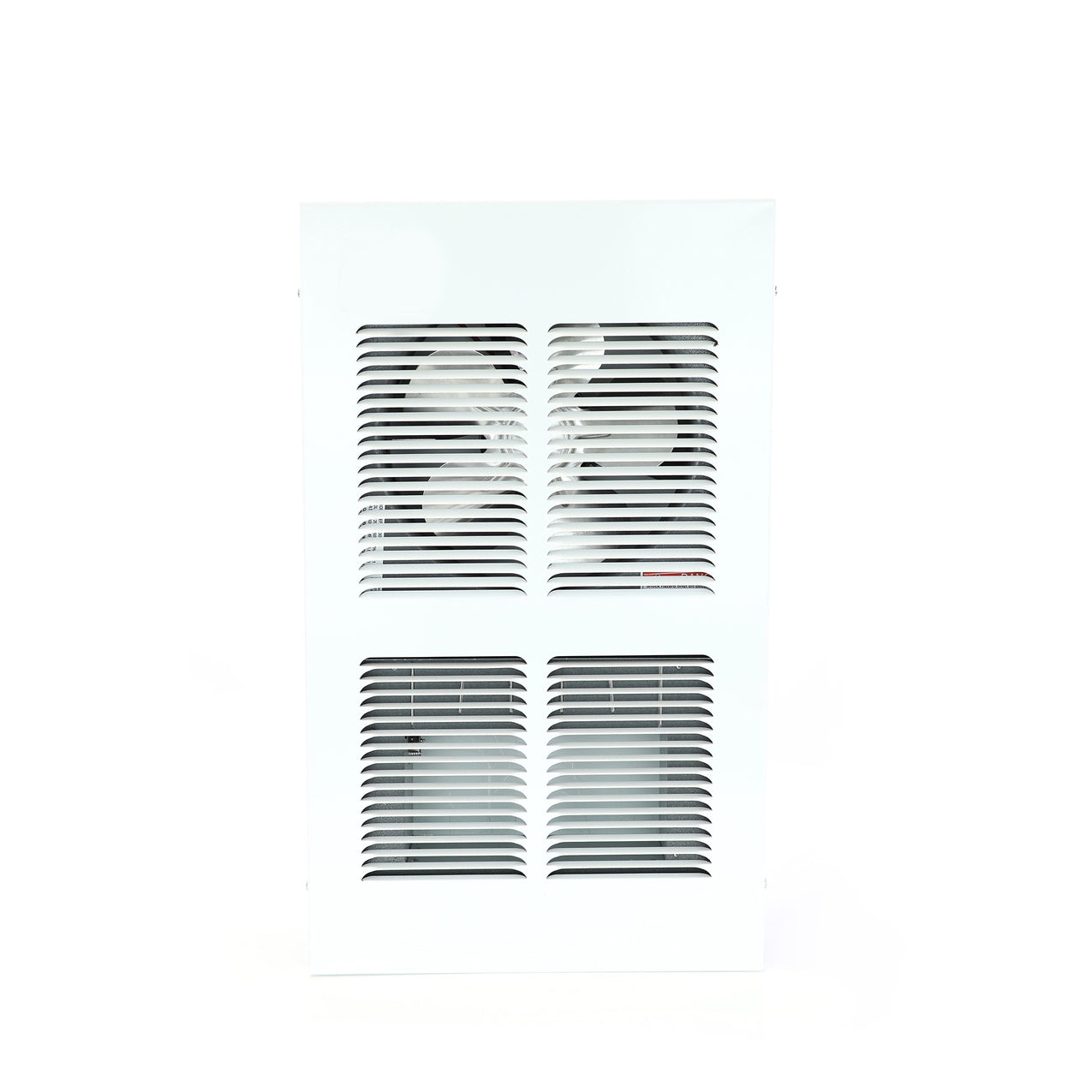

The KING ELECTRIC EFW1210-LD-W EFW-LD heater is designed for facilities with high-risk occupants, such as assisted living and daycare centers, where temperatures should not exceed 120 degrees. This 1000W, 120V wall heater replaces high-density heaters to keep patients safe and can be ganged together to work on one thermostat if higher output is required.

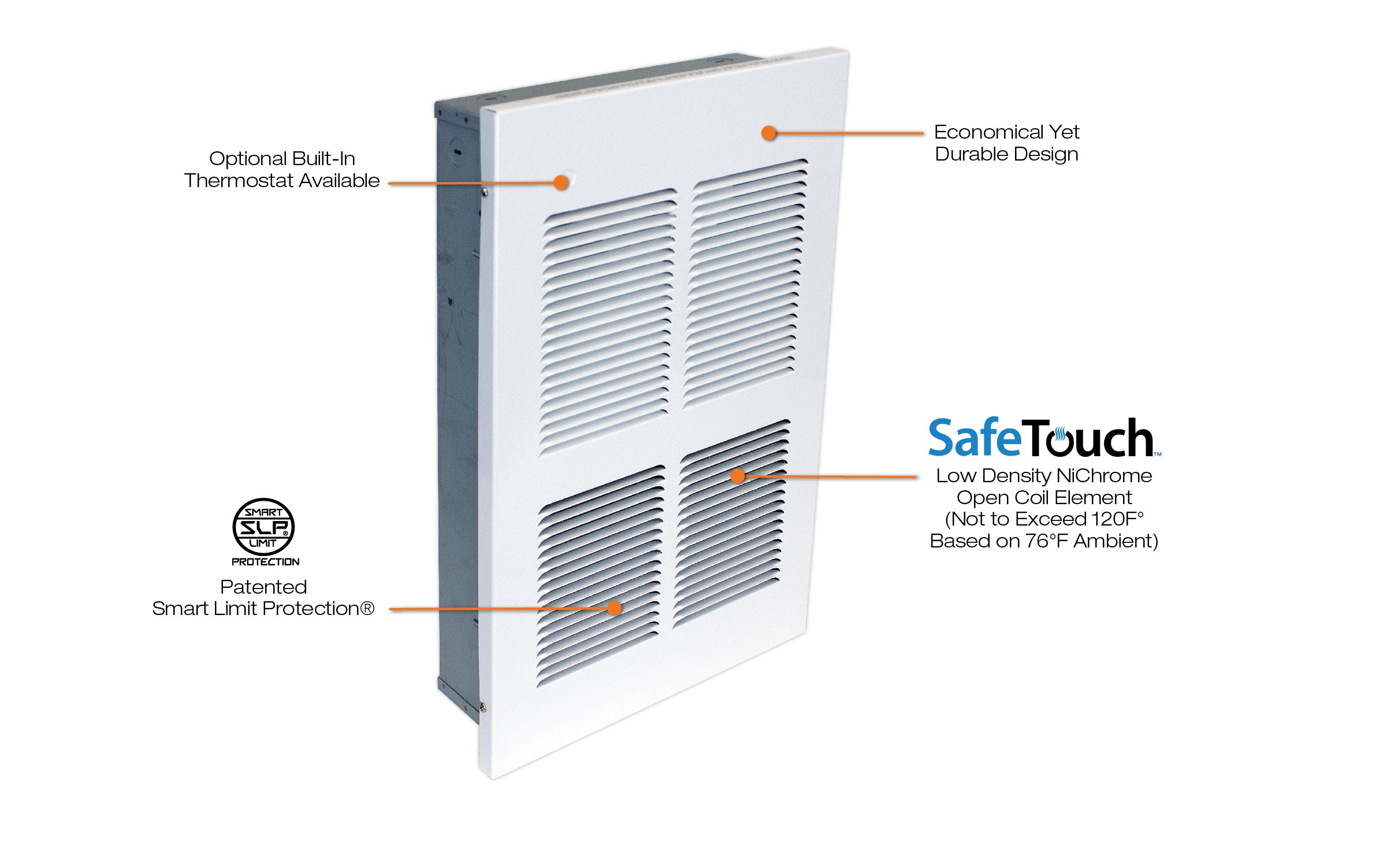

- Low Density Heat Output with a max surface temperature of 120F
- Features NiChrome open coil element for quick heat transfer
- Includes patented Smart Limit Protection®
Product Highlights
The EFW-LD wall heater is ideal for facilities with high-risk occupants. It features low-density heat output, a NiChrome open coil element, and Smart Limit Protection.
Product Information
Standard Information
-
Brand: KING ELECTRIC
-
Manufacturer Part Number: EFW1210-LD-W
-
Country of Origin: USA
Technical Specifications
-
Volts: 120
-
Watts: 1000
-
Amps: 8.3
-
Voltage: 120V
-
Product Type: Wall Heater
-
Surface Temperature: Not to exceed 120F based on 77F ambient.
-

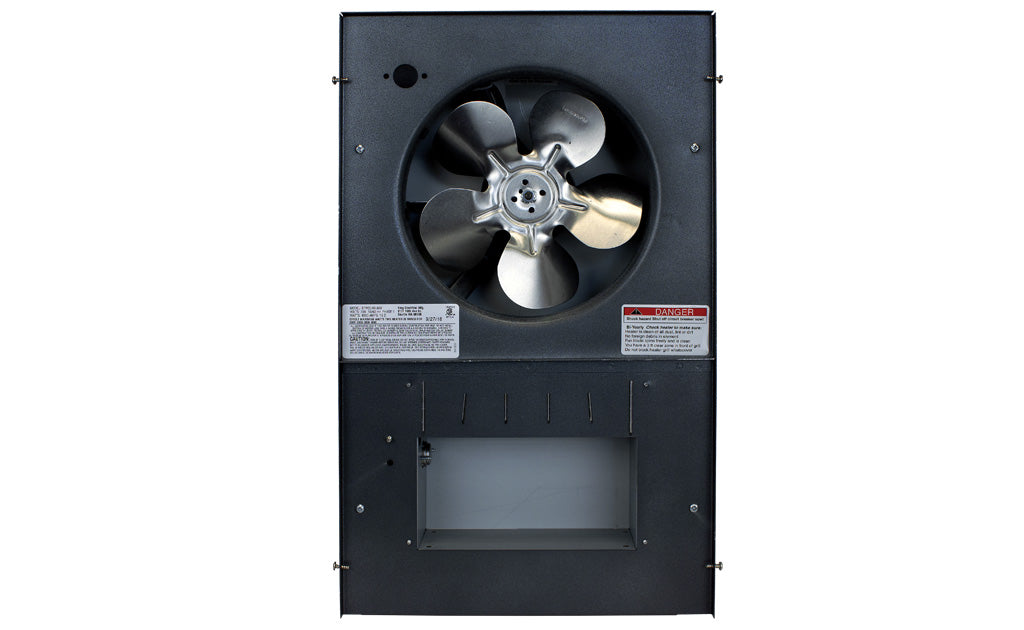

Motor: Heavy-duty cast aluminum 4 pole unit bearing, permanently lubricated with 10cc oil reservoir, 1440 RPM. Enclosed impedance protected with intake air cooling motor for increased bearing life.
-
Fan: High efficiency, dynamically balanced 5-blade aluminum fan. 185 CFM.
-
Heating Elements: Element assemblies shall be constructed of coiled Nickel Chromium alloy, corrosion-resistant wire strung through a minimum of four rows of mica insulator.
-
Thermal Overload: Heaters shall be equipped with King’s patented thermal overload Smart Limit Protection®, which disconnects elements and motor in the event normal operating temperatures are exceeded. If thermal overload trips due to abnormal operating temperatures, thermal overload shall remain open until manually reset by turning the heater off for 15 minutes.
-

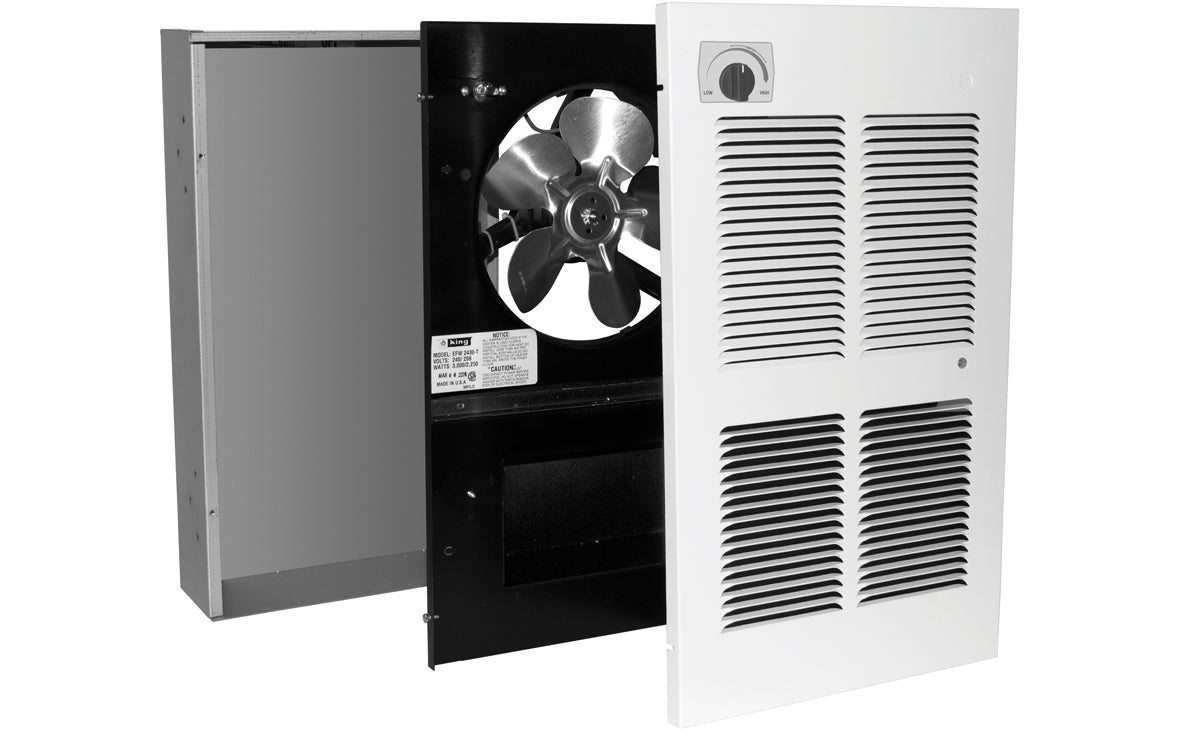

Wall-box: 20 gauge electro-galvanized steel with factory installed ground-wire. Minimum 4”clearance to floors and 6” to sidewalls. Zero clearance to insulation in the wall. Recommended 10” clearance to floors and 16” to sidewalls.
-

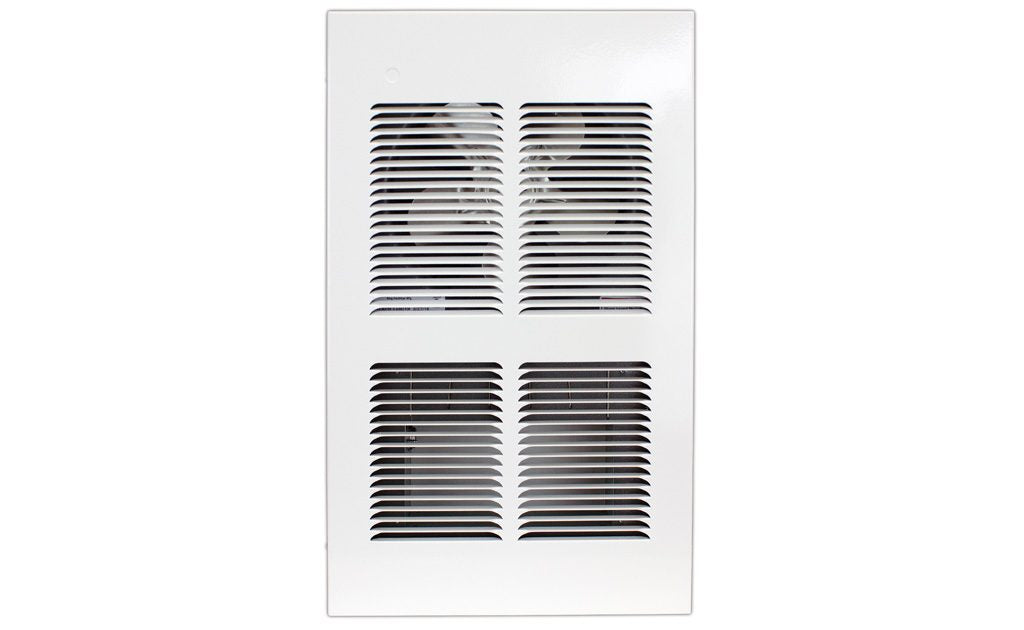

Grill: 20 gauge steel finished in a gloss white, powder-coated paint. Optional Almond color.
-
Options: 1-Pole or 2-Pole built-in thermostat 45-80°F operating range, retrofit grill, and surface wall-box.
-
Approvals: cCSAus
-
Installation Type: Wall Mount / Recessed
-
Fuel Type: Electric
-
Blower: Fan Driven
-
Remote: Not Available
-
Oscillating: No
-
Tip-Over Safety Switch: No
-
Wall Can Width (in.): 11.563
-
Wall Can Depth (in.): 3.813
-
Wall Can Height (in.): 21.063
-
Grille Dimensions (H x W x D - in.): 21.75 x 13 x 0.75
-
Weight (lbs.): 16
-
UPC/GTIN Code: 093319700471
-
Manufacturer Part Number: EFW1210-LD-W
-
Manufacturer: King Electric
-
Phase: 1 Phase
-
Wattage: 1000 Watt
-
Amperage: 8.3 Amp
-
Plug Type: Hardwired
-
Finish: Powder Coat
-
Width of Product: 13 Inch
-
Height of Product: 21.75 Inch
-
Listing Agency: CSA
-
Back Box Depth: 3.8125 Inch
-
Grille Depth: .8125 Inch
-
Grille Height: 21.75 Inch
-
Grille Width: 13 Inch
-
Heater Type: Commercial Wall Heaters
-
Type of Product: Commercial Wall Heaters
-
Product Condition: New
-
Certificate: CSA US
-
Maximum Voltage: 120V
-
Product ID: King-Electric-EFW1210-LD-W
