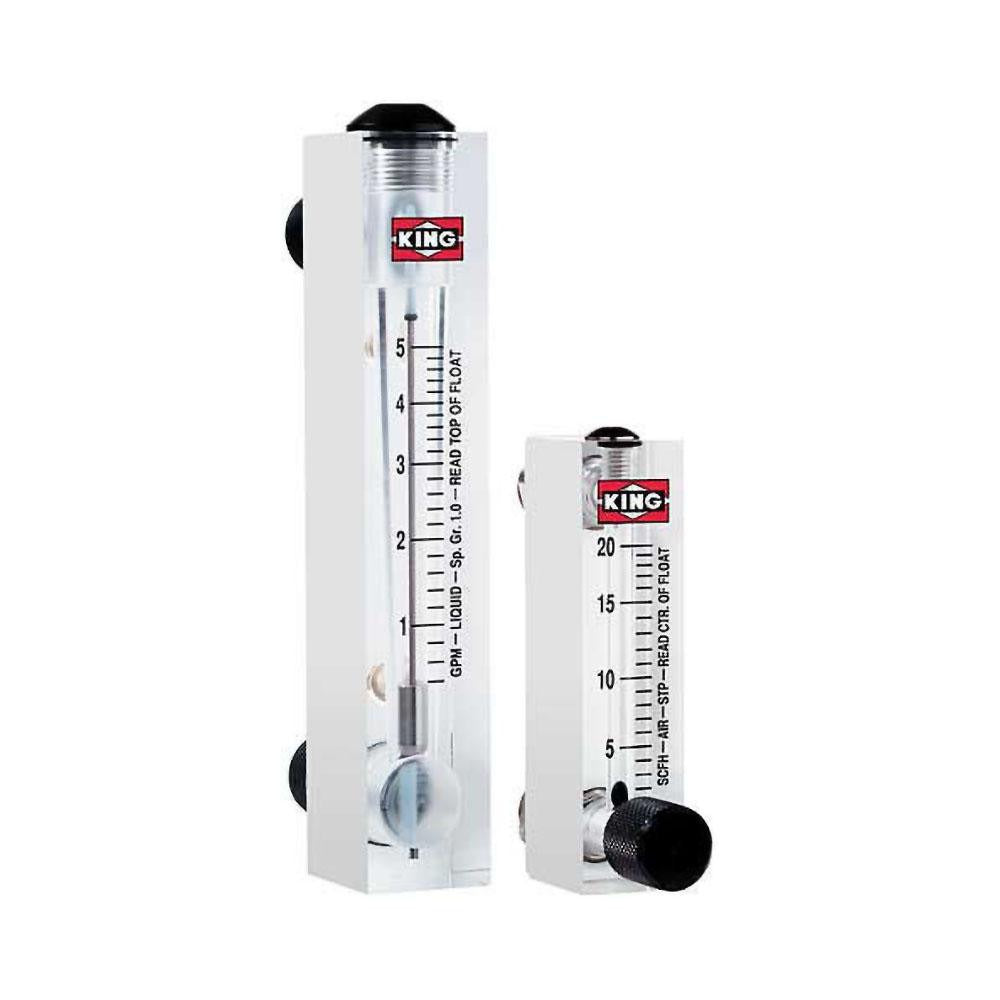

King 75302117C-06 Panel Mount Flowmeter 5 Gpm 1/2 Inch Npt

Product Description

The KING 75302117C-06 is a block-style, panel-mount flowmeter rated for up to 5 GPM and 100 psi maximum working pressure. The housing and body are constructed from acrylic, providing a clear visual reading of flow rate without additional instrumentation. The fitting material is PVC, and the unit connects via 1/2-inch NPT female ports with tube-style connections. At 14.5 inches in overall length, this meter is sized for panel integration in OEM equipment builds, water treatment skids, and air or water distribution systems. Accuracy is rated at 2 percent. Installation is horizontal, and the unit mounts directly to a panel surface. Licensed tradespeople and OEM equipment assemblers are the primary installers.

This flowmeter is designed for use in air and water service applications. Its block-style panel-mount form factor makes it well-suited for OEM equipment builds, industrial process panels, and light commercial or residential water distribution systems where a direct-reading flow indicator is needed. The 1/2-inch NPT female port size fits standard half-inch plumbing connections, and the acrylic body allows operators to visually confirm flow rate during system operation or commissioning.

Key Features

• 5 GPM maximum flow rate for air and water service
• 100 psi maximum working pressure
• Acrylic housing and body for clear visual flow indication
• 1/2-inch NPT female ports with tube-style connections
• PVC fitting material for corrosion resistance in water service
• 2 percent accuracy rating
• Horizontal mounting orientation for panel integration

Compatibility

Rated for use with air and water media. Designed for OEM equipment builds and panel-mount installations requiring a 1/2-inch NPT female port block-style flowmeter with horizontal orientation.

Installation Notes

Installation should be performed by a qualified plumber, pipefitter, or OEM equipment assembler familiar with NPT threaded connections and panel-mount instrumentation. Depressurize and isolate the system completely before connecting or removing the flowmeter. Use appropriate thread sealant on NPT connections and verify the unit is mounted in the correct horizontal orientation per application requirements. Follow applicable plumbing codes and the equipment manufacturer guidelines for flow instrument installation.
