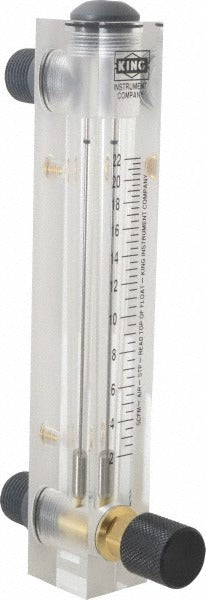

King 75302115C-07 Panel Mount Flowmeter 22 Scfm 125 Psi

Product Description

The KING 75302115C-07 is a block-style, panel-mount flowmeter designed for measuring air and water flow in OEM and industrial applications. It features a 0.5-inch NPT tube connection and a horizontal mounting orientation, making it suitable for integration into control panels and custom equipment enclosures. The acrylic housing provides direct visual flow readings without additional instrumentation. With a maximum working pressure of 125 psi and a maximum flow capacity of 22 SCFM, this flowmeter is well-suited for compressed air systems and low-pressure water circuits. Installation and commissioning are typically handled by mechanical contractors, OEM equipment assemblers, or instrumentation technicians.

This flowmeter is intended for OEM and panel-build applications where a compact, block-style instrument must be mounted flush to a panel surface. Its horizontal mounting requirement should be accounted for during panel layout. Compatible working fluids include air and water. The NPT port thread style and PVC fittings make it compatible with standard tubing and piping configurations common in light industrial and process equipment builds.

Key Features

• Block-style panel mount design integrates directly into equipment enclosures
• 22 SCFM maximum flow rate for air and water service
• 125 psi maximum working pressure
• 0.5-inch NPT tube connection for standard piping compatibility
• Acrylic housing provides direct visual flow indication
• Plus or minus 3 percent accuracy for reliable flow monitoring

Compatibility

Designed for OEM and panel-mount installations with air and water service. The 0.5-inch NPT tube connection suits standard light industrial piping configurations. Confirm horizontal mounting orientation and maximum working conditions before installation.

Installation Notes

This flowmeter must be mounted horizontally for accurate readings — do not install in a vertical orientation. Shut off and depressurize the system completely before connecting or disconnecting the unit. Use appropriate thread sealant on NPT connections and verify that system pressure does not exceed 125 psi during operation. Installation should be performed by a qualified technician familiar with pneumatic or fluid piping systems.
