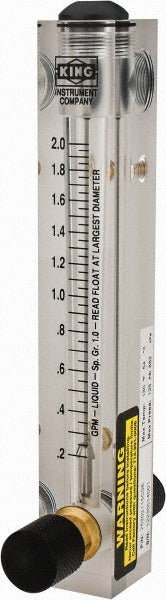

King 75302115C-06 Panel Mount Flowmeter 2 Gpm Npt

Product Description

The KING 75302115C-06 is a block-style panel mount flowmeter rated for up to 2 GPM and 100 psi maximum working pressure. The acrylic housing provides a clear view of flow rate without tools. Built for horizontal panel mounting with a 0.5 inch NPT tube-style port, this flowmeter is suited for OEM integration and field installations where visible flow indication is required. A 3 percent accuracy rating makes it reliable for monitoring air and water flow in process, HVAC, and light industrial systems. Licensed technicians and OEM equipment assemblers are the primary installers of this type of instrument.

This flowmeter is designed for use with air and water media in panel-mounted configurations. The block body style allows direct panel installation, keeping the unit flush and secure. The 0.5 inch NPT connection integrates into standard plumbing and instrumentation tubing runs. At 8.45 inches overall length, the unit fits standard panel cutout arrangements common in OEM equipment builds and light commercial system panels. The acrylic body and PVC fittings make it appropriate for non-corrosive fluid and gas monitoring applications.

Key Features

• 2 GPM maximum flow rate for air and water service
• 100 psi maximum working pressure
• 3 percent accuracy rating for reliable flow indication
• Acrylic housing with clear visual flow reading
• 0.5 inch NPT tube-style port for standard plumbing integration
• Horizontal panel mount orientation for fixed equipment installations

Compatibility

Designed for use with air and water media in OEM and panel-mounted instrumentation applications requiring a 0.5 inch NPT block-style flowmeter rated to 100 psi.

Installation Notes

Installation should be performed by a qualified technician or OEM assembler familiar with fluid instrumentation and panel fabrication practices. Shut off and depressurize the system completely before connecting or removing the flowmeter. Mount the unit in a horizontal orientation as specified for accurate flow readings. Do not exceed the 100 psi maximum working pressure rating, and ensure all fittings are compatible with the acrylic body to avoid chemical degradation or over-torquing.
