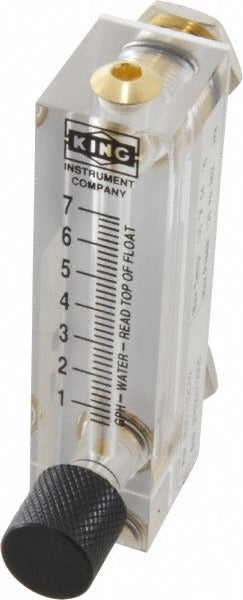

King 75301112C-02 Panel Mount Flowmeter 7 Gph 100 Psi

Product Description

The KING 75301112C-02 is a block-style, panel-mount flowmeter designed for horizontal installation in OEM and field-service applications. Rated to 100 psi maximum working pressure and sized for flow measurement up to 7 gallons per hour (GPH), this unit accepts 1/4-inch female NPT connections with brass fittings. The acrylic housing provides clear, direct visual reading of flow rate without additional instrumentation. Accuracy is rated at plus or minus 6 percent. Licensed technicians and OEM integrators who need a compact, readable flow indicator for air or water circuits will find this meter straightforward to spec and install.

This flowmeter is suited for light-duty OEM panel installations and service equipment where monitoring low-volume air or water flow is required. The horizontal mounting orientation and panel-mount block-style body allow for clean integration into equipment enclosures or control panels. The 4.125-inch overall length keeps the footprint minimal. Typical applications include water treatment systems, HVAC auxiliary circuits, and pneumatic equipment requiring flow verification at or below 7 GPH and 100 psi.

Key Features

• 100 psi maximum working pressure for air and water service
• 7 GPH maximum flow rate with direct visual indication through clear acrylic housing
• 1/4-inch female NPT port with tube connection and brass fittings
• Plus or minus 6 percent accuracy rating
• Horizontal panel-mount orientation with block-style body for secure equipment integration
• Compact 4.125-inch overall length

Compatibility

Designed for use with air and water circuits in OEM panel and equipment installations requiring 1/4-inch NPT female connections at pressures not exceeding 100 psi and flow rates up to 7 GPH.

Installation Notes

Installation is typically performed by licensed plumbers, HVAC technicians, or OEM equipment assemblers. Shut off and depressurize the supply line fully before installing or removing this flowmeter. Ensure the unit is mounted in a true horizontal orientation as specified for accurate float-based readings. Apply appropriate thread sealant to NPT connections per the equipment manufacturer and applicable plumbing code requirements; do not overtighten acrylic-bodied fittings.
