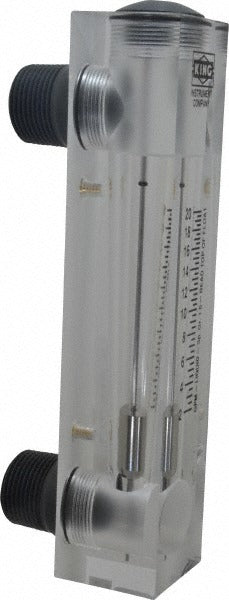

King 75202106C-06 Panel Mount Flowmeter 20 Gpm 1 in Npt

Product Description

The KING 75202106C-06 is a block-style, panel-mount flowmeter designed for monitoring flow rates in air and water systems. It reads up to 20 GPM at a maximum working pressure of 100 psi, making it suitable for OEM installations and field service applications where reliable flow measurement is required. The acrylic housing provides direct visual readout without secondary instrumentation. Connections are 1-inch NPT tube-style ports, and the meter mounts horizontally on a panel surface. Installation is handled by plumbing, HVAC, and OEM equipment technicians in both commercial and light industrial environments.

This flowmeter is suited for panel-mounted installations in systems handling air or water. Its block-style body integrates directly into a panel cutout for a clean, low-profile installation. The 1-inch NPT connection size fits standard trade piping and tubing configurations. With a 4 percent accuracy rating and a 20 GPM maximum flow capacity, it provides adequate measurement resolution for process monitoring, equipment protection, and performance verification in OEM and service applications.

Key Features

• Maximum flow rate of 20 GPM for air and water service
• Maximum working pressure of 100 psi
• 1-inch NPT tube-style port connections
• Acrylic housing and body for direct visual flow reading
• Horizontal, panel-mount orientation with block-style design
• 4 percent accuracy rating suitable for OEM and service monitoring

Compatibility

Designed for use with air and water systems requiring panel-mounted flow measurement. Compatible with 1-inch NPT tube connections in OEM equipment and field-installed piping assemblies.

Installation Notes

This flowmeter is installed by licensed plumbers, HVAC technicians, or OEM equipment assemblers. Shut off flow and depressurize the system fully before making or breaking any connections. Verify that the mounting orientation is horizontal as specified, and confirm that upstream and downstream piping is clear of obstructions that could affect reading accuracy. Thread connections should be sealed with appropriate thread sealant compatible with the fluid media in service.
