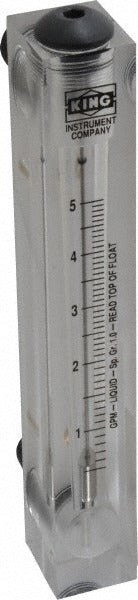

King 75202105C-08 Panel Mount Flowmeter 5 Gpm 1/2 Inch

Product Description

The KING 75202105C-08 is a block-style, panel-mount flowmeter designed for monitoring liquid flow rates in plumbing, industrial, and fluid-handling systems. Built with an acrylic housing, it provides a clear visual indication of flow through the meter body. The unit handles up to 5 GPM and is rated for a maximum working pressure of 100 psi. The 1/2-inch male port thread style makes installation straightforward in standard line configurations. Licensed plumbers and fluid-system technicians are the typical installers for this type of metering device.

This flowmeter is suited for panel-mount applications where inline flow monitoring is required. The block-style body mounts directly to a panel surface, keeping the flow path visible and the installation compact. It is commonly used in water treatment, cooling systems, chemical feed lines, and similar low-to-moderate pressure fluid circuits where visual flow verification is needed at a glance without additional instrumentation.

Key Features

• Maximum flow rate of 5 GPM for low-to-moderate flow monitoring
• Rated to 100 psi maximum working pressure
• Acrylic housing provides clear visual flow indication
• Block-style body designed for panel-mount installation
• 1/2-inch M (male) port thread for standard line connections

Compatibility

Designed as an OEM-style replacement or direct-install flowmeter for panel-mount fluid-handling systems requiring a 1/2-inch male port connection and a maximum 5 GPM flow capacity at up to 100 psi.

Installation Notes

Installation is typically performed by a licensed plumber or qualified fluid-systems technician. Shut off and depressurize the supply line completely before installing or removing the flowmeter. Ensure the flow direction through the meter body matches the marked direction on the unit. Acrylic housings are sensitive to overtightening — use thread sealant tape and hand-tighten before applying only minimal additional torque to avoid cracking the body.
