Kindorf E-760-2 2 Galvanized Krom Steel Single U Channel to Beam Clamp

Product Description

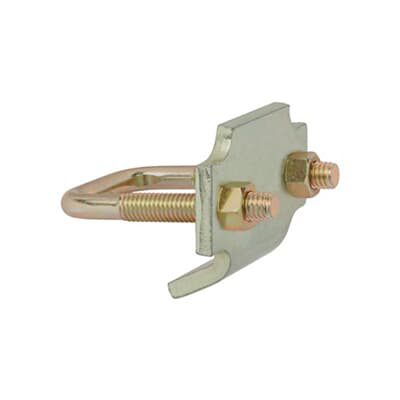

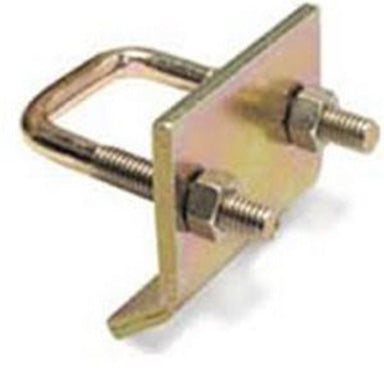

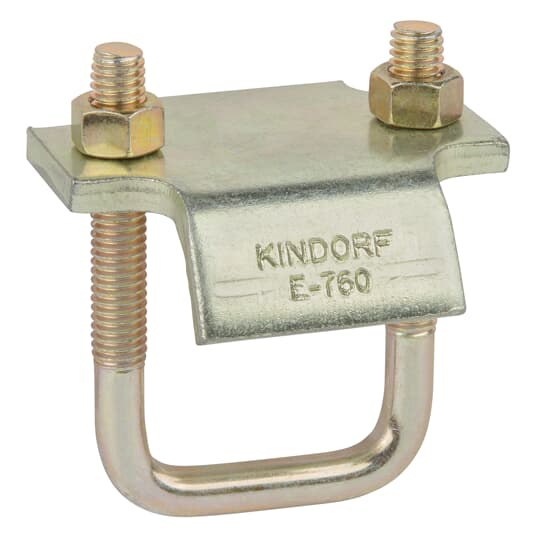

The Kindorf E-760-2 is a beam clamp designed for use with B 900, B 905, B 906, and B 907 series channels. This beam clamp is made of steel with a galvanized finish to provide durability and resistance to rust. It can fit all I-beams with a flange thickness of up to point eight inches. The hardened points of the clamp bite into the beam flange for a secure attachment.

• Beam clamp made from galvanized steel.
• Compatible with multiple series channels.
• Effective for I-beam flanges up to point eight inches thick.

Product Highlights

The Kindorf E-760-2 is suitable for various electrical fittings applications, providing a robust solution for securing u channels to beams.

Product Information

Standard Information

• Brand: Kindorf
• Manufacturer: Steel City-Kindorf / Thomas & Betts

Technical Specifications

• Material: Steel
• Finish: Galvanized
• Width: 3 inches
• Length: 3 and one quarter inches
• Type: Beam Clamps & Hanger Rod Supports
• UPC: 78599177810
• Applications: Hardened points bite into beam flange, fits I-beams with flange thickness up to point eight inches.
