Killeen Security Products 408SARGENT10BCP Mortise Rim Lfic Housing

Product Description

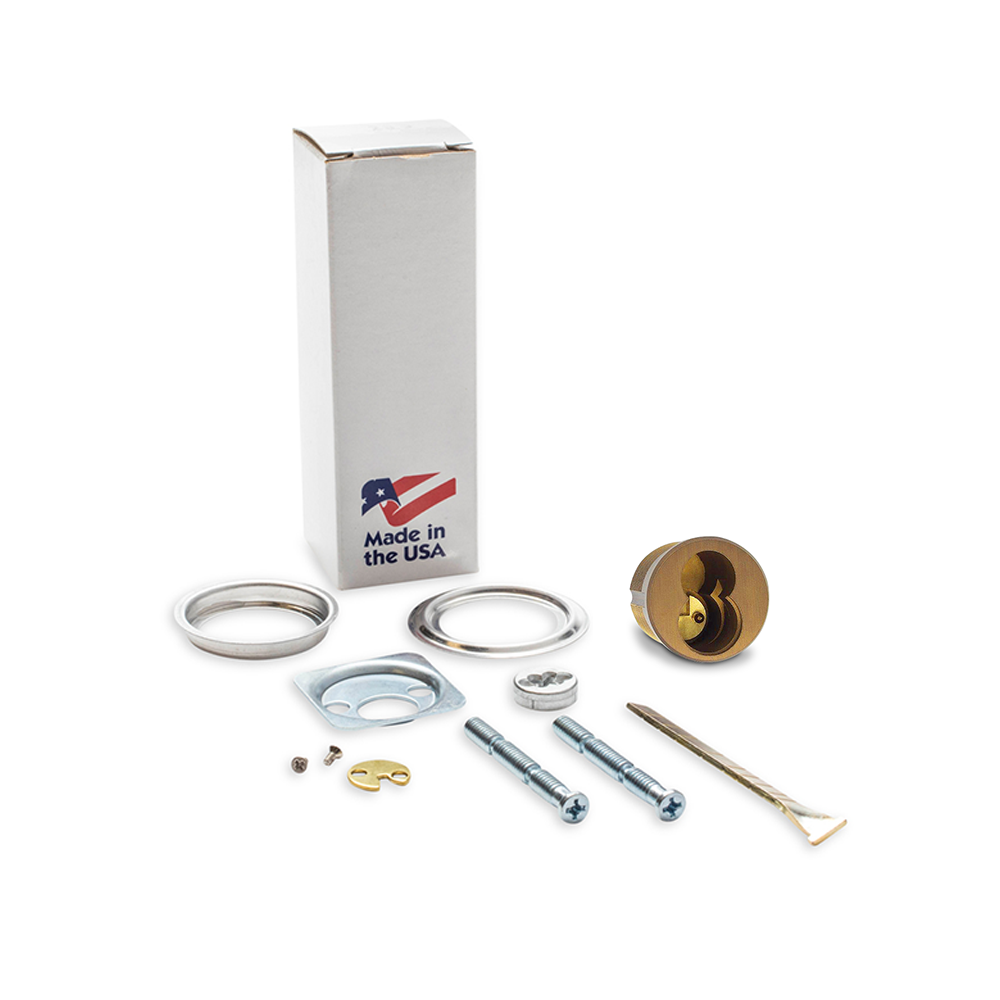

The KILLEEN SECURITY PRODUCTS 408SARGENT10BCP is a convertible mortise and rim LFIC cylinder housing designed for use with Sargent Large Format Interchangeable Core (LFIC) cylinders. The housing ships as a complete pack including both the mortise cam and rim cylinder tailpiece, giving the installer everything needed to configure the cylinder for either mortise or rim applications without sourcing separate components. At 4.5 inches in length and 1.5 inches in both width and height, this housing fits standard commercial door prep dimensions. Finished in oil rubbed dark bronze, it suits retrofit and new-install projects where a darker hardware finish is specified. Licensed locksmiths and commercial door hardware technicians are the primary installers.

This housing is intended for commercial and institutional door hardware applications where Sargent LFIC cores are already deployed or being installed as part of a master key or interchangeable core system. The convertible design allows the same housing to serve in either a mortise lockset or a rim device application, reducing inventory requirements on multi-door projects. It is sold individually (each) and is appropriate for single-door service calls or new construction where Sargent LFIC cores are the specified cylinder platform.

Key Features

• Convertible design accepts either mortise or rim cylinder configuration from one housing
• Engineered specifically for Sargent LFIC core format
• Complete pack includes mortise cam and rim cylinder tailpiece
• Oil rubbed dark bronze finish for consistent appearance with dark hardware sets
• Compact footprint: 4.5 inches long, 1.5 inches wide, 1.5 inches tall

Compatibility

Designed for use with Sargent Large Format Interchangeable Core (LFIC) cylinders. KILLEEN SECURITY PRODUCTS also manufactures convertible mortise and rim housings for Medeco, Schlage, Yale, Corbin Russwin, and KSP SFIC core formats, but this part number is specific to the Sargent LFIC platform.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician familiar with LFIC cylinder systems. Verify that the door prep and lockset are compatible with the chosen mortise or rim configuration before finalizing the housing orientation. Remove all cylinder cores and ensure the door hardware is secured or removed from the door before disassembling or reassembling the cylinder housing. Follow the lock manufacturer and local building code requirements for hardware installation in rated or access-controlled openings.
