Killeen Security Products 207CA04KA 7 Pin Sfic Core

Product Description

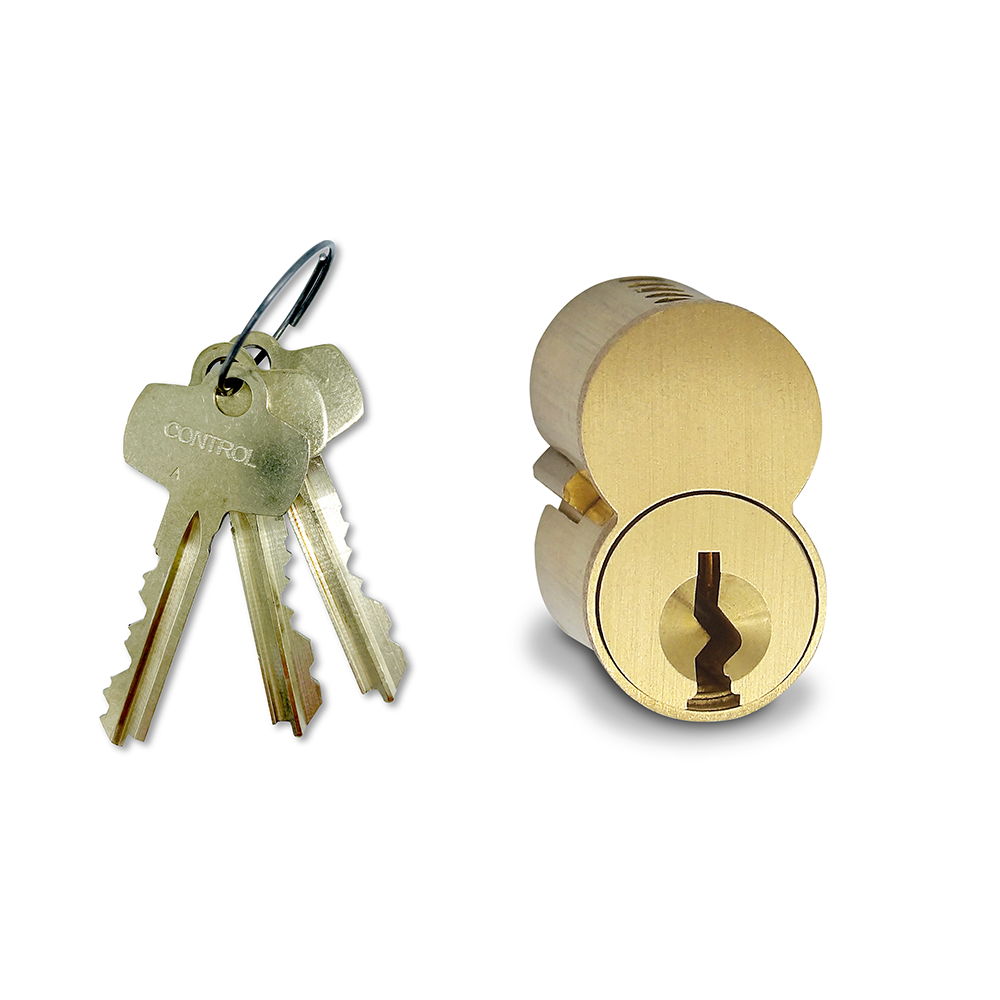

The KILLEEN SECURITY PRODUCTS 207CA04KA is a 7-pin Small Format Interchangeable Core (SFIC) cylinder in an A keyway configuration, finished in satin brass. This core ships keyed alike and includes 2 cut keys and 1 control key. SFIC cores are designed for high-security master-key applications where individual cores can be swapped without removing the lock housing, making re-keying fast and tool-free in the field. The unit measures 2 inches in length and 1.5 inches in width and height, and weighs 0.2 pounds. Locksmiths and institutional facility managers are the primary installers for this type of hardware.

SFIC cores are commonly specified in commercial, institutional, and government facilities where rapid re-keying and master-key control are required. This core fits SFIC-compatible housings including mortise cylinders, rim cylinders, knobs, levers, and padlocks that accept the small format interchangeable core format. The A keyway restricts key duplication to authorized channels, supporting key control programs. Installation requires only a control key to insert or remove the core from any compatible housing, making it well suited for large facilities with frequent keying changes.

Key Features

• 7-pin SFIC cylinder for enhanced key-combination depth and security
• A keyway configuration for controlled key duplication
• Keyed alike configuration with 2 cut operating keys and 1 control key included
• Satin brass finish for corrosion resistance in standard interior applications
• Tool-free core removal and installation using control key
• Compact form factor: 2 inches x 1.5 inches x 1.5 inches

Compatibility

Designed for use in SFIC-compatible housings that are interchangeable with Best, Arrow, and Falcon small format interchangeable core systems, per the manufacturer.

Installation Notes

Installation and removal of SFIC cores should be performed by a licensed locksmith or qualified security professional. Always use the correct control key to rotate the core to the removal position before extracting it from the housing; forcing the core without the control key can damage the housing. Verify that the host housing accepts the small format interchangeable core profile before installation. Follow applicable building and fire codes when specifying hardware for rated egress doors.
