Killeen Security 408YALE26DCP Mortise Rim Lfic Housing Yale

Product Description

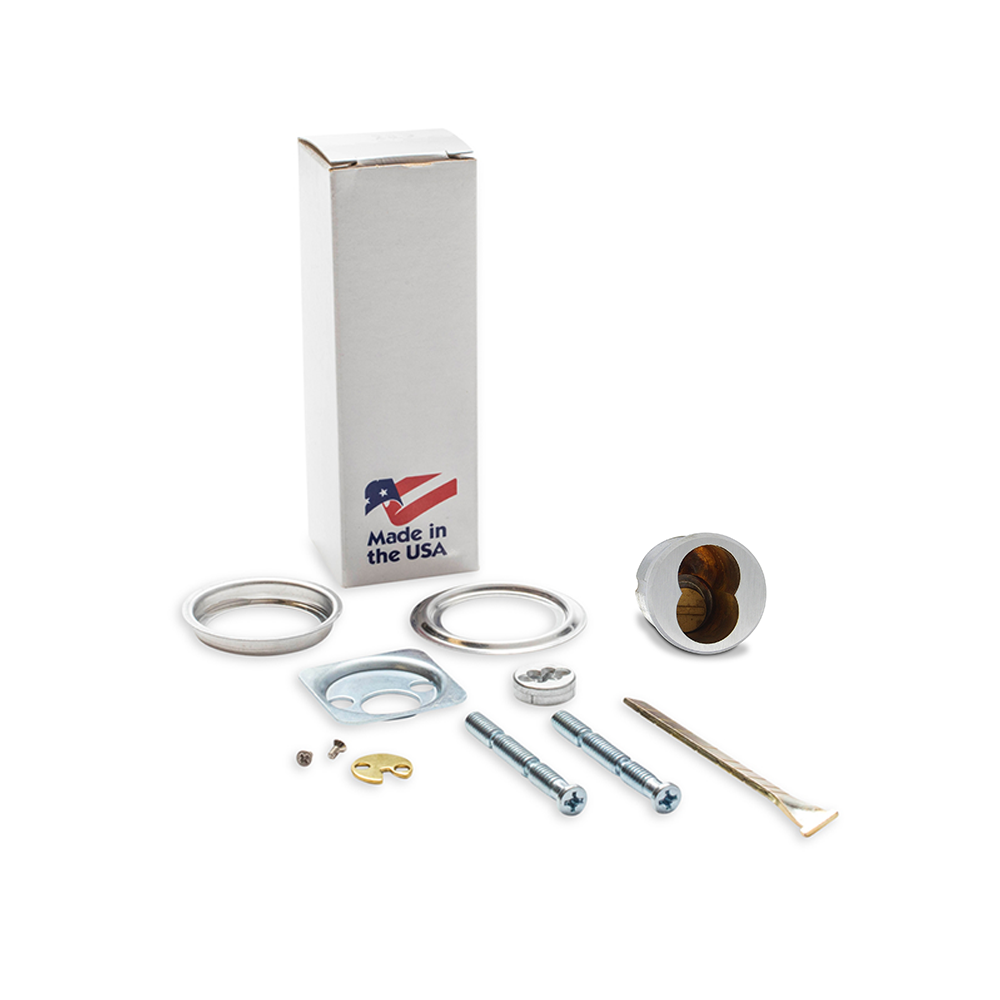

The KILLEEN SECURITY PRODUCTS 408YALE26DCP is a convertible mortise and rim LFIC cylinder housing designed to accept Yale 6-pin Large Format Interchangeable Core (LFIC) cores. The housing ships as a complete pack that includes both the mortise cam and the rim cylinder tailpiece, giving the technician everything needed to configure the unit for either application on the job. Finished in satin chrome, the housing measures 4.5 inches in length and 1.5 inches in both width and height. It weighs 0.37 pounds. Licensed locksmiths and commercial door hardware technicians are the primary installers for this type of cylinder housing.

This housing is suited for commercial and institutional door hardware applications where LFIC cores are specified. The convertible design allows the same housing to function as either a mortise cylinder or a rim cylinder depending on which tailpiece configuration is installed. The satin chrome finish is appropriate for standard commercial hardware specifications. KILLEEN SECURITY PRODUCTS also manufactures housings in additional styles including Medeco, Sargent, Schlage, Corbin Russwin, and their own KSP SFIC format, and the brand produces compatible key blanks and locksmith tooling for these product lines.

Key Features

• Convertible design accepts either mortise cam or rim cylinder tailpiece configuration
• Designed for Yale 6-pin LFIC cores
• Complete pack includes mortise cam and rim cylinder tailpiece
• Satin chrome finish meets common commercial hardware specifications
• Compact housing: 4.5 inches long, 1.5 inches wide, 1.5 inches high

Compatibility

Designed to accept Yale 6-pin Large Format Interchangeable Core (LFIC) cores. This housing is part of a convertible mortise and rim platform. KILLEEN SECURITY PRODUCTS manufactures similar housings for Medeco, Sargent, Schlage, Corbin Russwin, and KSP SFIC cores.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician familiar with LFIC cylinder systems. Remove the door from service or ensure it is secured open before disassembling the existing cylinder. Select and install either the mortise cam or the rim tailpiece based on the application before seating the housing in the door. Verify proper core seating and function before returning the door to service.
