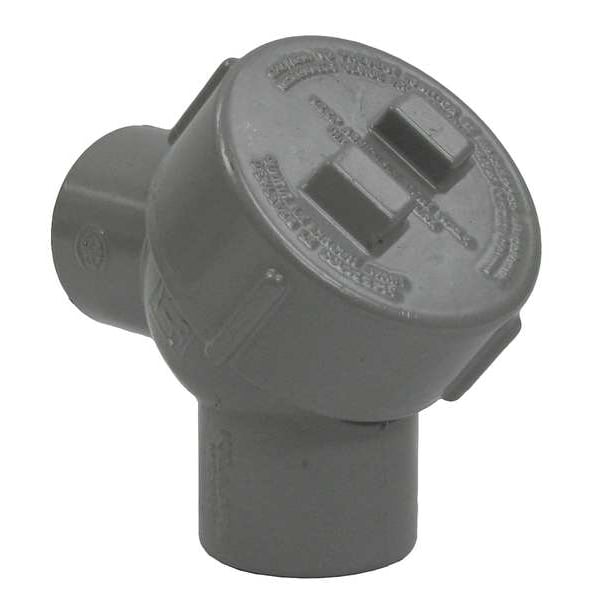

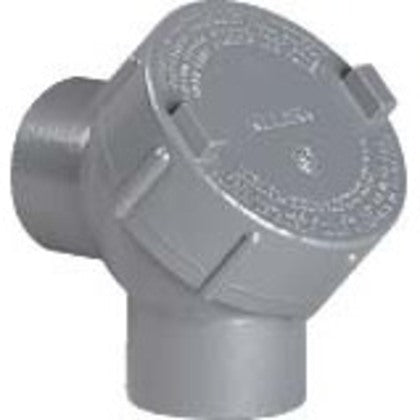

Killark Y-4 90° 1-1/4 inches Aluminum Capped Elbow

Product Description

The Killark Y-4 is a 90° 1-1/4" aluminum capped elbow, threaded for rigid conduit or IMC. It is designed to change direction 90 degrees in rigid or IMC conduit systems where space is limited. It allows access for pulling conductors or maintenance. Features smooth integral bushings to prevent damage to wires.

• Threaded for rigid conduit or IMC
• Smooth integral bushings to prevent damage to wires
• Suitable for hazardous locations

Product Highlights

The Killark Y-4 is ideal for use in hazardous locations where space is limited.

Product Information

Standard Information

• Brand: Killark
• Manufacturer Part Number: Y-4
• Country of Origin: United States

Technical Specifications

• Application: To change direction 90 Degrees in Conduits
• Catalog Number: Y-4
• Color: Gray
• Cover Type: Threaded
• Finish Type: Powder Epoxy Paint
• Material: Aluminum
• Series: Y Series
• Type: Capped Elbow
• UPC: 783936970042
• Finish: Powder Coated
• Hazardous Rating(s): Class I, Divisions 1 & 2, Groups C, D Class II, Divisions 1 & 2, Groups E, F, G Class III, Divisions 1 & 2
• Trade Size: 1-1/4 in
• Connection Type: Threaded
• Standards: CSA Certified File (LR11716), UL Listed File (E10514)
• Ends - Hazardous Fittings: 1 1/4 in FNPT x 1 1/4 in FNPT
• Hazardous Location: Yes
• Connector Type: 90 Degrees
• Features: Smooth Integral Bushings to Prevent Damage to Wires
• Body Style: Y
• Connection Orientation: 90 Degrees
• Seal Type: Vertical and Horizontal Conduit Sealing Fittings
• Thread Gender: Female to Female
• Thread Type: NPT
• Number of Pieces: 1
• Shape: Round
• Fitting Type: Elbow
• Fitting Sub-Category: Elbows
• Conduit Fitting Material: Copper Free Aluminum
• Item - Conduit Fitting: 90 Degrees , Capped Elbow
• Conduit Outlet Body Hub Style: Threaded
• Connection: Female to Female
• Brand: KILLARK
• Country of Origin: United States
• Category: Business & Industrial > Industrial Automation & Motion Controls > PLCs & HMIs > PLC Processors
• Hub Size: 1-1/4"
• Item: IMC
