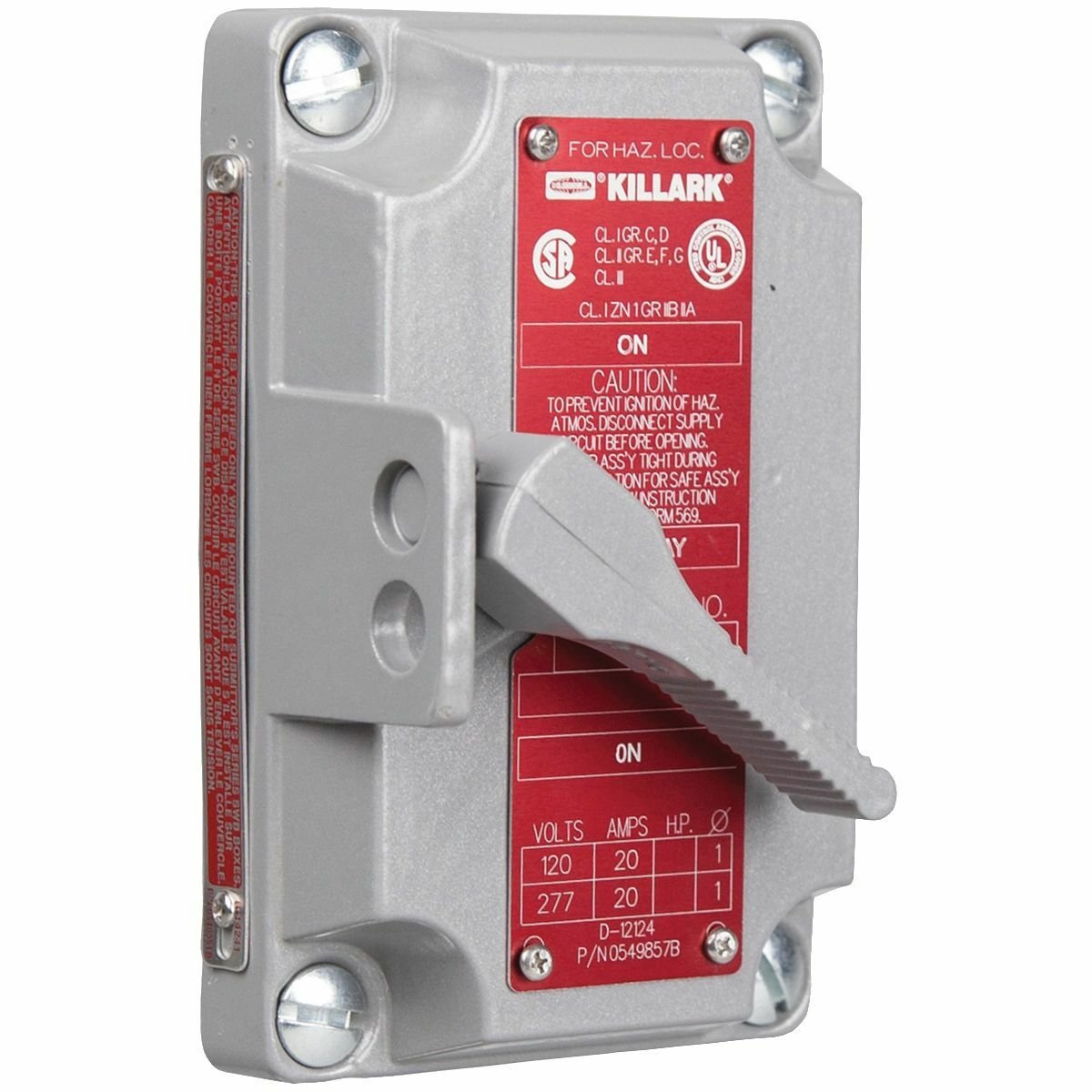

Killark XS-1C COVER SW TBLR 120/277VAC 20A SPST 1 1PH

Product Description

Killark XS-1C is an explosion-proof tumbler switch cover designed for control applications in hazardous locations. It operates at 120/277 VAC and features a single pole, double throw (SPDT) configuration rated for 20 Amperes. The unit is suitable for operation in Class 1 Division 1 and 2 environments, making it ideal for controlling motors, lights, and fans in industrial settings.

• Meets NEMA 7/9 standards for hazardous conditions
• SPST (Single Pole Single Throw) contact configuration
• Durable cast aluminum construction with gray finish

Product Highlights

This switch cover allows for effective control in explosive environments while ensuring safety and reliability.

Product Information

Standard Information

• Brand: Killark
• Manufacturer Part Number: XS-1C

Technical Specifications

• Voltage Rating: 120/277 VAC
• Amperage Rating: 20 A
• Number of Poles: 1
• Contact Configuration: SPST
• Enclosure Type: NEMA 7/9
• Actuator Type: Front Lever
• Size: 3 inches wide x 1 and 13/16 inches deep x 4 and 5/8 inches high
• Material: Cast Aluminum
• Special Features: Designed for use in hazardous locations
