Killark XCS-0K2A1 XCS Series AL Maintained Contact 2-Pos Keyed Selector Switch

Product Description

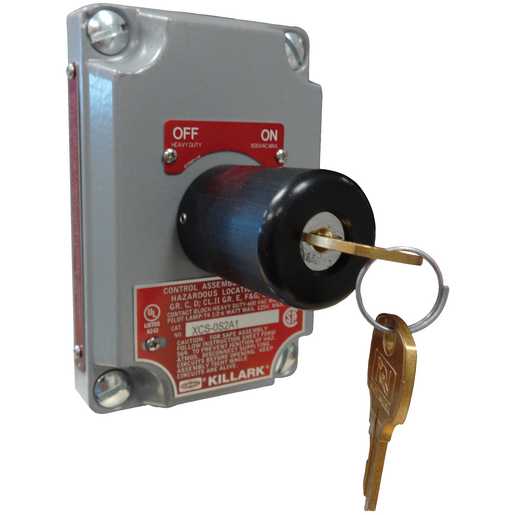

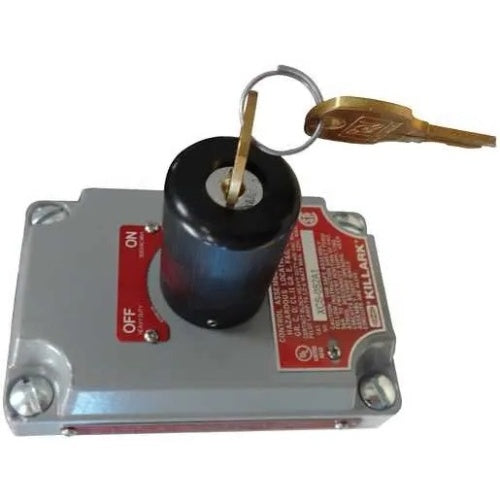

The Killark XCS-0K2A1 is an aluminum maintained contact 2-position keyed selector switch cover with device. It features keyed different with key removal in both positions and an "Off - On" nameplate with 1NO/1NC contact rating. It is suitable for hazardous locations with flammable gases, vapors, combustible dusts, or ignitable fibers.

• Copper free cast aluminum alloy.
• Ground flange joint between bolted cover and box provide required flame path.
• Push button, selector switches and pilot light operator bodies are copper-free aluminum.

Product Highlights

This Killark selector switch provides control solutions in hazardous locations, ideal for START/STOP motor functions and LED pilot light indications.

Product Information

Standard Information

• Brand: Killark
• Manufacturer Part Number: XCS-0K2A1

Technical Specifications

• Action: Rotary
• Actuator: 2 Position Selector Switch
• Application: Hazardous locations due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fiber or flyings. Installations at petroleum refineries, chemical and petrochemical plants, and other processing or storage facilities where simil
• Back Box Type: SWB
• Catalog Number: XCS-0K2A1
• Color: Black
• Material: Copper-free aluminum
• Series: XCS Series
• Type: Aluminum Cover With 2-Position Key Selector Switch
• UPC: 783936890432
• Depth: 2-3/4 in
• Height: 4.125 in
• Length: 7.625 in
• Width: 5.875 in
• Amperage Rating: 10 A
• Contact Rating: 60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC;
• Frequency Rating: 50/60 Hz
• Number Of Poles: 1
• CSA File Number: LR11714
• Hazardous Rating(s): Class I, Divisions 1 & 2, Groups C, D Class I, Zones 1 & 2, Groups IIB, IIA Class II, Divisions 1 & 2, Groups E, F, G Class III, Divisions 1 & 2
• UL File Number: E53360
• Amperage: 10 Amp
• Sub Component: Cover
• Component: Accessories
• Manufacturer: Killark
• Composition: Copper-Free Aluminum
• Actuator Type: Selector Switch
