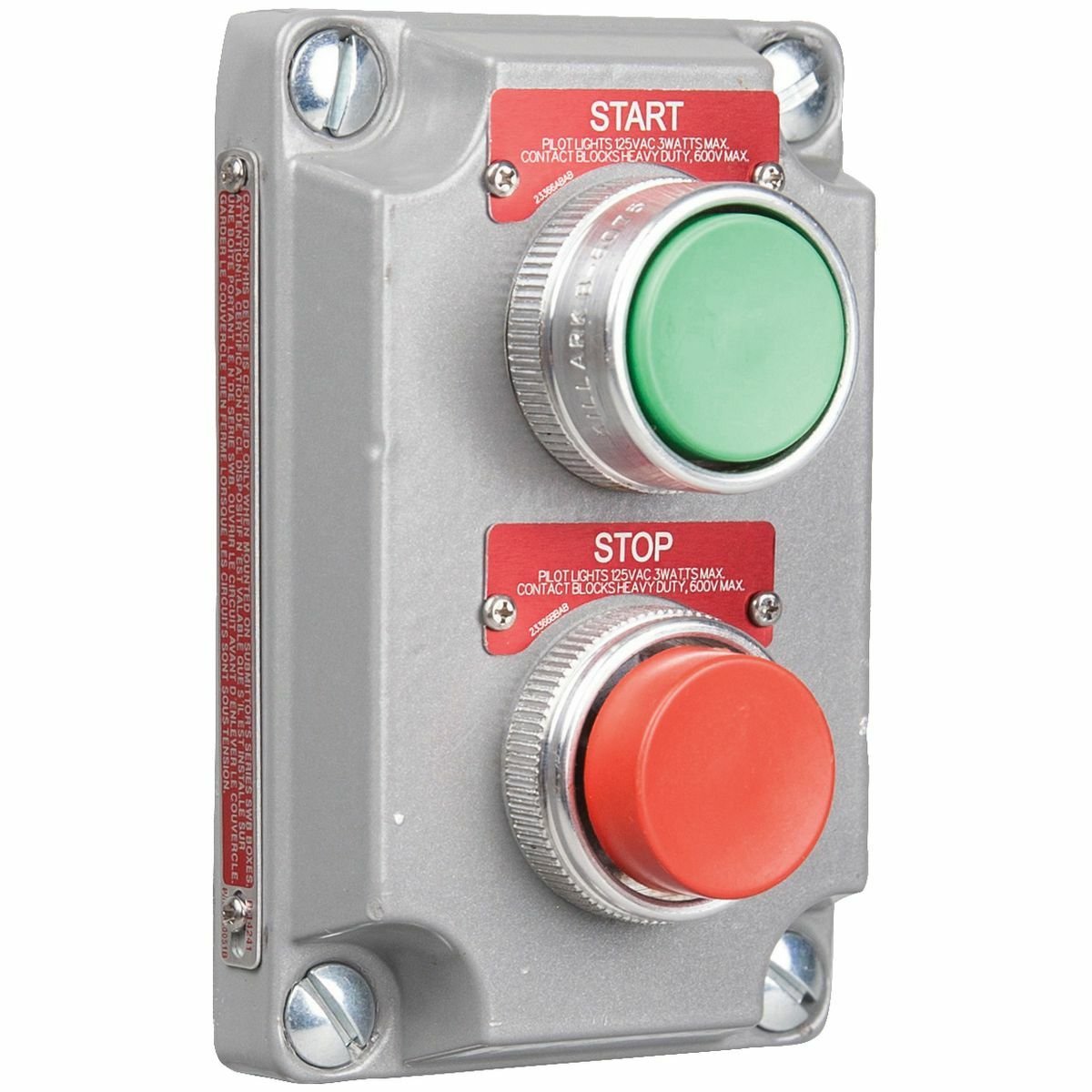

Killark XCS-0B4 Assembly Cover Pushbutton 600VAC 1NC-1NO

Product Description

The Killark XCS-0B4 is a pushbutton control cover assembly designed for use in hazardous environments. With a voltage rating of six hundred VAC, this assembly features a momentary pushbutton actuator with a contact configuration of one normally closed and one normally open. It is suitable for various applications, including petrochemical and chemical processing.

• Operating voltage: six hundred VAC
• Contact rating: twelve amps
• NEMA rating: seven CD/nine EFG

Product Highlights

This product provides effective control solutions for motor functions in hazardous locations, ensuring compliance with safety standards.

Product Information

Standard Information

• Brand: Killark
• MPN: XCS-0B4

Technical Specifications

• Amperage Rating: ten amps
• Material: copper-free aluminum
• Dimensions: four and five-eighths inches height, three inches width, and one and one-sixteenth inches depth
• Color: green and red
• Number of Poles: two
• Contact Configuration: one normally open, one normally closed
• Country of Origin: United States
• Environmental Conditions: designed for hazardous locations
