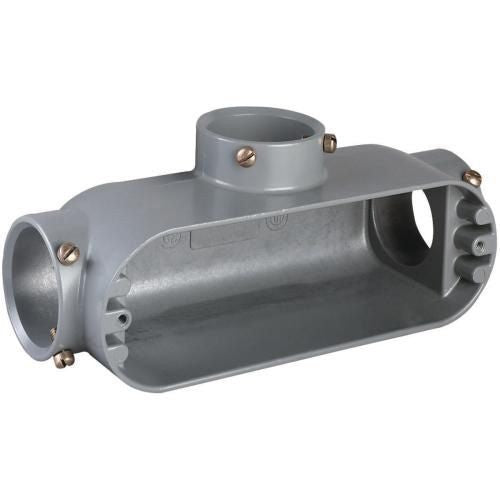

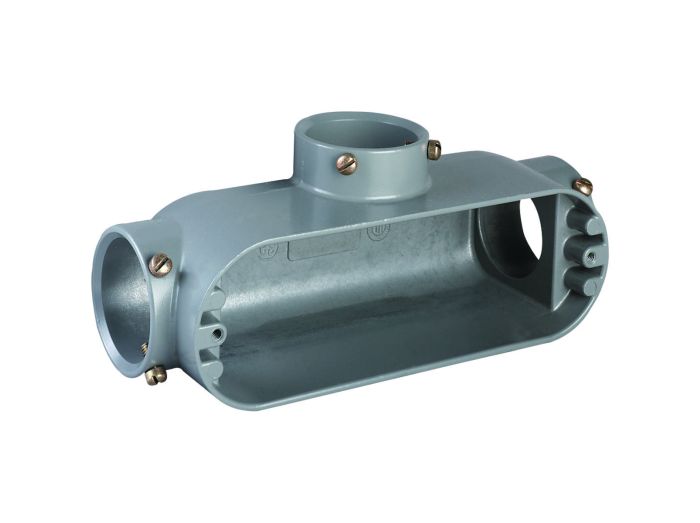

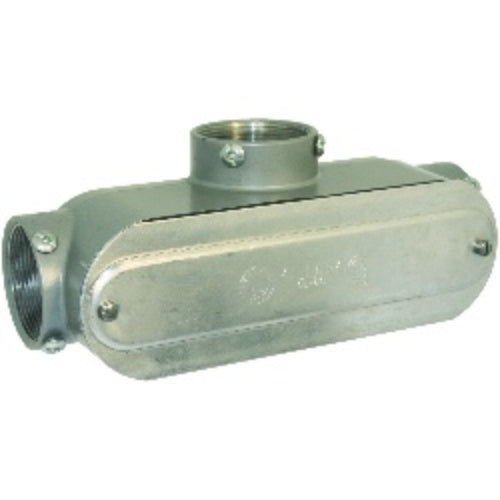

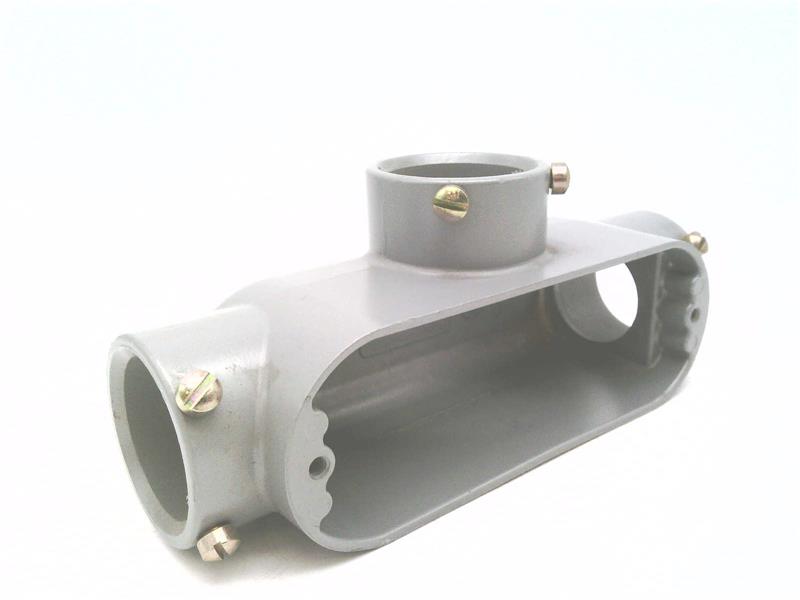

Killark TWOT-5 two type t combination conduit body 1-1/2 inches

Product Description

The Killark TWOT-5 is a TWO Type T Combination Conduit Body. Constructed from copper-free aluminum with an electrostatic powder-coated finish. It provides access to conductors for pulling, splicing, maintenance, and future changes. Suitable for use with EMT or Rigid/IMC conduit.

• Combination bodies have threaded and set screw hubs
• Prepackaged with body, cover and gasket
• Covers Furnished With Stainless Steel Screws

Product Highlights

Combination conduit body with threaded and set screw hubs for easy installation and maintenance.

Product Information

Standard Information

• Brand: Killark
• Manufacturer Part Number: TWOT-5

Technical Specifications

• Hub Size: 1-1/2 in
• Material: Copper Free Aluminum
• Number of Hubs: 3
• Connection Type: Threaded/Set Screw
• Series: TWO
• Type: Type T Combination
• Application: To provide access to conductors for pulling, splicing, maintenance and for future changes or upgrades, for use with EMT or Rigid/IMC conduit
• Standard & Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL File No. E3397, CSA File No. LR11852
• Finish: Electrostatic Powder Coated
• Product Series: TWO
• Family Series: Killark Conduit Outlet Bodies, TWO Series
• Style: Set Screw
• Shape: T
• Cover Included: No
• Gasket Included: No
• Conduit Type: EMT (Electrical Metallic Tubing)
• Trade Size: 1-1/2 "
• Composition: Aluminum
• Protection Rating: Indoor, Outdoor
• Hazardous Location: Yes
• Approvals: CSA, UL
• Manufacturer: Killark
• Component: Fittings
• Size: 1-1/2"
• Sub Component: Conduit Body
• Connection: Screw
• Part #: TWOT-5
• Category: Conduit/Fitting
