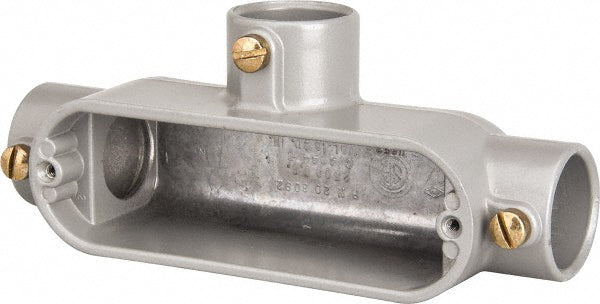

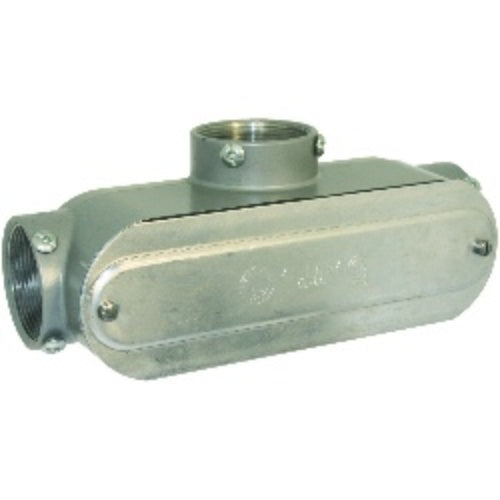

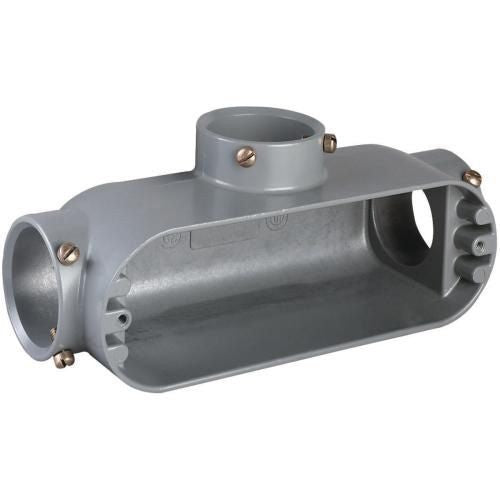

Killark TWOT-3 two type t combination conduit body, 1 in hub, 10 cu-in

Product Description

The Killark TWOT-3 TWO Type T Combination Conduit Body with a 1 in Hub and 10 cu-in capacity, made from copper-free aluminum with an electrostatic powder coating. It provides access to conductors for pulling, splicing, maintenance, and future changes. It is suitable for use with EMT or Rigid/IMC conduit.

• Combination bodies have threaded and set screw hubs
• Easy installation (screwdriver is only tool required)
• Complete selection of sizes and hub configurations

Product Highlights

This conduit body is ideal for providing access to conductors for maintenance and upgrades, suitable for both indoor and outdoor applications.

Product Information

Standard Information

• Brand: Killark
• Manufacturer Part Number: TWOT-3

Technical Specifications

• Hub Size: 1 in
• Material: Copper Free Aluminum
• Number of Hubs: 3
• Series: TWO
• Type: Type T Combination
• Application: To provide access to conductors for pulling, splicing, maintenance and for future changes or upgrades, for use with EMT or Rigid/IMC conduit
• Standard & Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL File No. E3397, CSA File No. LR11852
• Capacity: 10 cu-in
• Color: Gray
• Connection Type: Threaded/Set Screw
• Finish: Electrostatic Powder Coated
• Manufacturer Part Number: TWOT-3
• Manufacturer: Killark
• Product Series: TWO
• Family Series: Killark Conduit Outlet Bodies, TWO Series
• Description: 1in. T CONDUIT BODY THINWALL
• Style: Set Screw
• Shape: Oval
• Cover Included: No
• Gasket Included: No
• Conduit Type: EMT (Electrical Metallic Tubing)
• Trade Size: 1 "
• Composition: Aluminum
• Protection Rating: Indoor, Outdoor
• Approvals: CSA, UL
• Conduit Form Type: Set Screw
• Conduit Body Type: T
• Volume Capacity (Cu. In.): 12
• Resistance Features: Corrosion-Resistant
• Includes: Set Screws
• Standards Met: UL Listed; CSA Certified
• Size: 1"
• Component: Fittings
• Sub Component: Conduit Body
• Connection: Screw
