Killark TWOLRL-2 Type LRL Conduit Body 3/4 in Hub

Product Description

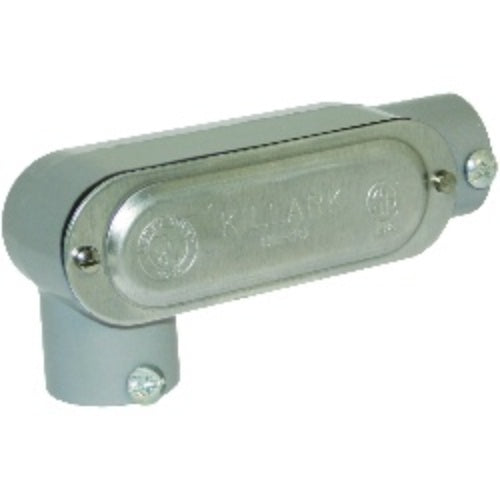

The Killark TWOLRL-2 Type LRL Conduit Body has a 3/4 in Hub and 7.5 cu-in Capacity. It is made of copper-free aluminum with an electrostatic powder-coated finish. This conduit body provides access to conductors for pulling, splicing, maintenance, and future changes or upgrades. It is designed for use with EMT conduit only (not threaded).

• Made of Copper Free Aluminum
• Features threaded and set screw hubs
• Provides access to conductors for maintenance

Product Highlights

The Killark TWOLRL-2 is ideal for providing access to conductors in EMT conduit systems for maintenance and upgrades.

Product Information

Standard Information

• Brand: Killark
• Manufacturer Part Number: TWOLRL-2
• Country of Origin: Mexico

Technical Specifications

• Hub Size: 3/4 in
• Material: Aluminum
• Number of Hubs: 2
• Color: Gray
• Connection Type: Threaded/Set Screw
• Series: TWO
• Standard & Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL File No. E3397, CSA File No. LR11852
• Application: To provide access to conductors for pulling, splicing, maintenance and for future changes or upgrades, for use with EMT conduit only (not threaded)
• Type: Type LRL
• Finish: Electrostatic Powder Coated
• Catalog ID: KLRTWOLRL-2
• Capacity: 7.5
• Conduit Outlet Body Type: Conduit Outlet Body
• Hazardous Location: No
• Conduit Outlet Body Style: LR
• Back Type: Flat
• Standards: CSA, UL
• Form: Form 8
• Shape: LR
• Connection Orientation: 90 Degrees
• Hub Style: Threaded
• Thread Type: NPT
• Body Type: Conduit Outlet Body
• Body Capacity: 7 cu in
• Conduit Outlet Body Hub Size: 3/4 in
• Conduit Outlet Hub Size: 3/4"
• Trade Size: 3/4 in
• Compatible Conduit Trade Size: 1/2 in
• Thread Size: 3/4 in
• Sheath Color: Gray
• MPN: TWOLRL-2
• Brand: Hubbell
• Manufacturer: Killark
• Component: Fittings
• Size: 3/4"
• Sub Component: Conduit Body
• Connection: Screw
• Product Series: TWO
• Family Series: Killark Conduit Outlet Bodies, TWO Series
• Description: TW SERIES 3/4in. AL CONDUIT BODY
• Style: Set Screw
• Cover Included: No
• Gasket Included: No
• Conduit Type: EMT (Electrical Metallic Tubing)
• Composition: Aluminum
• Protection Rating: Indoor, Outdoor
• Approvals: CSA, UL
