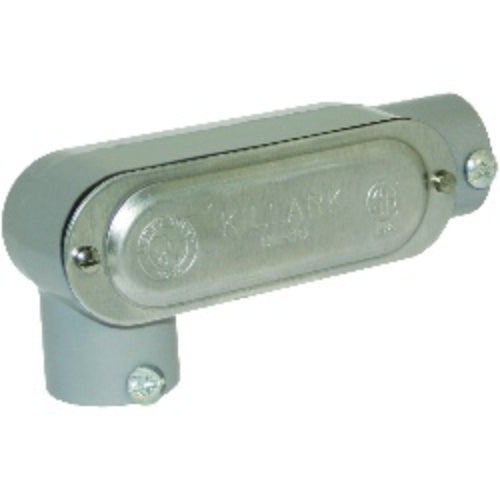

Killark TWOLRL-1 Type LRL Conduit Body 1/2 in Hub

Product Description

The Killark TWOLRL-1 Type LRL Conduit Body with a 1/2 in Hub. It provides access to conductors for pulling, splicing, maintenance, and future changes or upgrades. Designed for use with EMT conduit only (not threaded).

• Combination bodies have threaded and set screw hubs
• Pre-packaged with body, cover and gasket.
• Covers furnished with stainless steel screws

Product Highlights

This conduit body is ideal for providing access to conductors in EMT conduit systems.

Product Information

Standard Information

• Brand: Killark
• Manufacturer Part Number: TWOLRL-1
• Country of Origin: United States

Technical Specifications

• Hub Size: 1/2 in
• Material: Copper Free Aluminum
• Number of Hubs: 2
• Capacity: 4.8
• Catalog ID: KLRTWOLRL-1
• Color: Gray
• Connection Type: Threaded
• Dimensions: 4-17/32 in L x 1-5/16 in W x 1-3/8 in H
• Finish: Electrostatic Powder Coated
• Series: TWO
• Type: Type LRL
• Application: To provide access to conductors for pulling, splicing, maintenance and for future changes or upgrades, for use with EMT conduit only (not threaded)
• Standard & Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL File No. E3397, CSA File No. LR11852
• Manufacturer: Killark
• Size: 1/2"
• Component: Fittings
• Sub Component: Conduit Body
• Connection: Screw
• Product Series: TWO
• Family Series: Killark Conduit Outlet Bodies, TWO Series
• Description: TW SERIES 1/2in. AL CONDUIT BODY
• Style: Set Screw
• Shape: LRL
• Cover Included: No
• Gasket Included: No
• Conduit Type: EMT (Electrical Metallic Tubing)
• Trade Size: 1/2 in
• Composition: Aluminum
• Protection Rating: Indoor, Outdoor
• Approvals: CSA, UL
• Compatible Conduit Trade Size: 1/2 in
• Conduit Outlet Body Type: Conduit Outlet Body
• Item: Conduit Outlet Body
• Hazardous Location: No
• Conduit Outlet Body Material: Aluminum
• Conduit Outlet Body Style: LR
• Special Features: Set Screw Hubs
• Back Type: Flat
• Form: Form 5
• Body Style: LR
• Body Type: Conduit Outlet Body
• Thread Type: NPT
• Hub Style: Threaded
• Connection Orientation: 90 Degrees
• Body Capacity: 4 cu in
• Brand: HUBBELL KILLARK
• Features: Conduit Outlet Body, Hazardous Location No, Conduit Outlet Body M
• UPC: 0783936650197
• Country of Origin: United States
