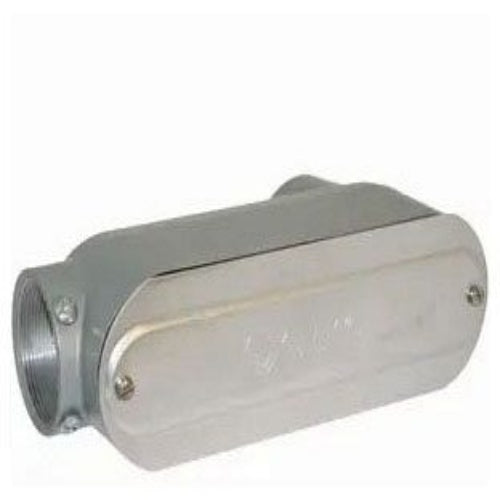

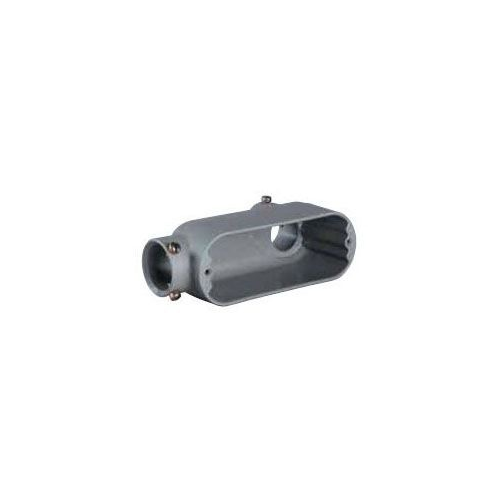

Killark TWOLB-7 two type lb conduit body with cover and gasket, 2-1/2 in hub

Product Description

The Killark TWOLB-7 conduit body provides access to conductors for pulling, splicing, maintenance, and future changes. It is designed for use with EMT only (not threaded). This conduit body features a combination of threaded and set screw hubs and has a volume of 142 cu-in.

• Combination bodies have threaded and set screw hubs
• Easy installation
• Complete selection of sizes and hub configurations

Product Highlights

Provides easy access to conductors for maintenance and upgrades with a durable, corrosion-resistant design.

Product Information

Standard Information

• Brand: Killark
• Manufacturer Part Number: TWOLB-7
• Country of Origin: US

Technical Specifications

• Application: To provide access to conductors for pulling, splicing, maintenance, and for future changes or upgrades. For use with EMT only (not threaded).
• Catalog Number: TWOLB-7
• Color: Gray
• Connection Type: Set Screw/Threaded
• Country of Origin: US
• Dimensions: 13-15/16 in L x 4-3/8 in W x 6-1/8 in H
• Series: TWO
• Standard: UL, CSA
• Type: Conduit Body
• UNSPSC: 39131708
• Brand: Killark
• Manufacturer: Hubbell
• Capacity: 142 cu-in
• Finish: Powder Epoxy Paint
• Hub Size: 2.5 in
• Material: Aluminum
• Number of Hubs: 2
• Standard & Approvals: UL E3397 Listed, CSA LR11852 Certified, RoHS Compliant
• Trade Size: 2-1/2"
• Installation: Screw (EMT)
• Hub Location: 90 Deg
• Access Opening: Back
• Configuration: LB
