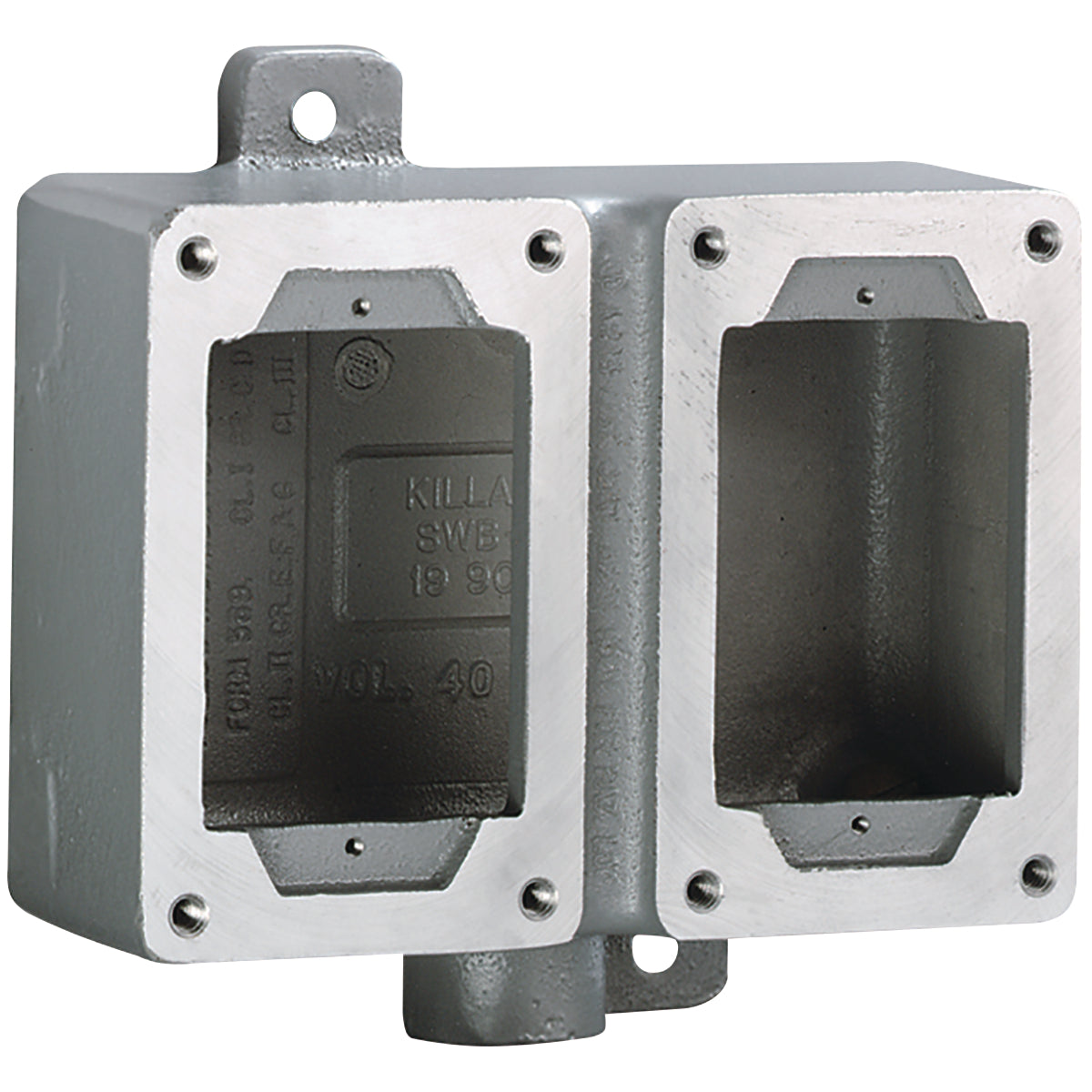

Killark SWB-8 SWB Series Dead-End Double-Gang Device Body 3/4 Inch

Product Description

The Killark SWB-8 SWB Series control station back boxes provide control solutions in hazardous locations. These aluminum device bodies are for use with XCS/XS/XT cover assemblies. Suitable for Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use and are non-factory sealed, requiring a conduit seal fitting.

• Aluminum Dead-End Double-Gang Device Body For Use With XCS/XS/XT Cover Assemblies - Hub Size 3/4 Inch
• Copper free cast aluminum alloy.
• Ground flange joint between bolted cover and box provide required flame path.

Product Highlights

The Killark SWB-8 device body is ideal for hazardous locations, providing a reliable solution for control functions. It features a copper-free aluminum alloy construction and internal ground screw.

Product Information

Standard Information

• Brand: Killark
• Manufacturer Part Number: SWB-8
• Country of Origin: USA

Technical Specifications

• Application: Hazardous locations due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fiber or flyings. Installations at petroleum refineries, chemical and petrochemical plants, and other processing or storage facilities where similar hazards exist. Use in conjunction with magnetic starters or contactors for remote control of motors.
• Catalog Number: SWB-8
• Color: Gray
• Material: Aluminum, Copper Free (less than 4/10 of 1%)
• Mounting Type: Wall
• Series: SWB Series
• Type: Aluminum Device Body
• UPC: 783936630083
• Depth: 2.25 in
• Width: 7.5 in
• CSA File Number: LR11712
• Hazardous Rating(s): Class I, Divisions 1 & 2, Groups C, D Class I, Zones 1 & 2, Groups IIB, IIA Class II, Divisions 1 & 2, Groups E, F, G Class III, Divisions 1 & 2
• UL File Number: E53360
• Hub Size: 3/4 in
• Number of Gangs: 2 Gang
• Used With: XCS/XS/XT Cover Assemblies
• Length: 11.75 in
• Height: 4 in
• Mounting: Wall
• Enclosure: Aluminum enclosure
• Country of Origin: United States
• Gangs: 2
