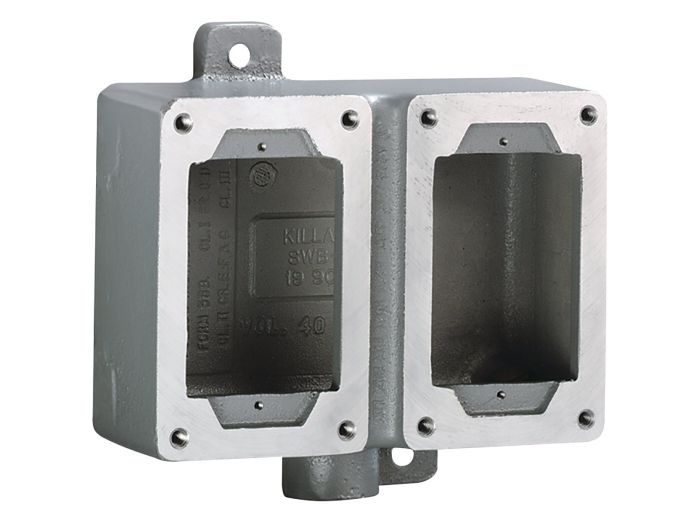

Killark SWB-7 swb series dead-end double-gang device body 1/2 inch

Product Description

The Killark SWB-7 is a SWB Series dead-end double-gang device body with a 1/2 inch hub size, designed for use with XCS/XS/XT cover assemblies. These control station back boxes provide control solutions in hazardous locations. It is UL Listed and CSA Certified. For use in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use.

• Aluminum Dead-End Double-Gang Device Body For Use With XCS/XS/XT Cover Assemblies - Hub Size 1/2 Inch
• Copper free cast aluminum alloy.
• Ground flange joint between bolted cover and box provide required flame path.

Product Highlights

The SWB-7 device body is ideal for hazardous locations requiring control solutions, offering a durable and certified design for various industrial applications.

Product Information

Standard Information

• Brand: Killark
• Manufacturer Part Number: SWB-7
• Country of Origin: United States

Technical Specifications

• Catalog Number: SWB-7
• Series: SWB Series
• Type: Aluminum Device Body
• Hub Size: 1/2 "
• Material: Aluminum, Copper Free (less than 4/10 of 1%)
• Mounting Type: Wall
• Hazardous Rating(s): Class I, Divisions 1 & 2, Groups C, D Class I, Zones 1 & 2, Groups IIB, IIA Class II, Divisions 1 & 2, Groups E, F, G Class III, Divisions 1 & 2
• UL File Number: E53360
• CSA File Number: LR11712
• Application: Hazardous locations due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fiber or flyings. Installations at petroleum refineries, chemical and petrochemical plants, and other processing or storage facilities where similar hazards exist. Use in conjunction with magnetic starters or contactors for remote control of motors.
• Color: Gray
• UPC: 783936630076
• Depth: 2-1/4 in
• Height: 4.125 in
• Length: 11.75 in
• Weight: 3.05 lb
• Width: 7.5 in
• Product Series: SWB
• Manufacturer Part Number: SWB-7
• Manufacturer: Killark
• Family Series: Killark Electrical Boxes, SWB Series
• Description: 1/2in. SWB DEVBODY 5 7/8X6 1/2X2 1/4in. DEND
• Number of Gangs: 2
• Grounding: Yes
• Composition: Copper-Free Aluminum
• Hazardous Location: Yes
• Approvals: CSA, UL
• Net Weight: 0 lbs
