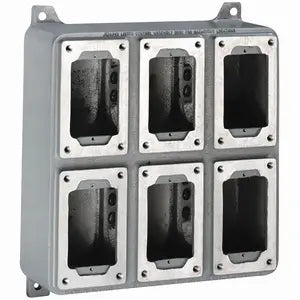

Killark SWB-32 SWB Series Deep Device Body 1-1/2 Inch Max

Product Description

The Killark SWB-32 SWB series control station back boxes provide control solutions in hazardous locations. These back boxes are suitable for START/STOP motor functions and LED pilot light indications, and are used with Killark XCS and XS cover assemblies. They are UL Listed and CSA Certified.

• Copper free cast aluminum alloy.
• Designed for custom drilled and tapped conduit openings on all four sides and the back.
• Ground flange joint between bolted cover and box provide required flame path.

Product Highlights

The SWB series is ideal for hazardous locations with flammable gases, vapors, or combustible dusts. It is suitable for petroleum refineries, chemical plants, and storage facilities.

Product Information

Standard Information

• Brand: Killark
• Manufacturer Part Number: SWB-32
• Country of Origin: MX

Technical Specifications

• Catalog Number: SWB-32
• Color: Gray
• Material: Aluminum, Copper Free (less than 4/10 of 1%)
• Mounting Type: Wall
• Series: SWB Series
• Type: Aluminum Device Body
• UPC: 783936631028
• Depth: 3-5/16 in
• Height: 9.75 in
• Hub Size: Max. 1-1/2"
• Length: 15.25 in
• Width: 13.5 in
• CSA File Number: LR11712
• Hazardous Rating(s): Class I, Divisions 1 & 2, Groups C, D Class I, Zones 1 & 2, Groups IIB, IIA Class II, Divisions 1 & 2, Groups E, F, G Class III, Divisions 1 & 2
• UL File Number: E53360
• Carton Quantity: 1
• Brand: Killark
• Country of Origin: MX
• Manufacturer Name: Hubbell
• NEMA Rating: NEMA 7CD/9EFG
• Suitable For Use With: XCS/XS/XT Cover Assemblies
