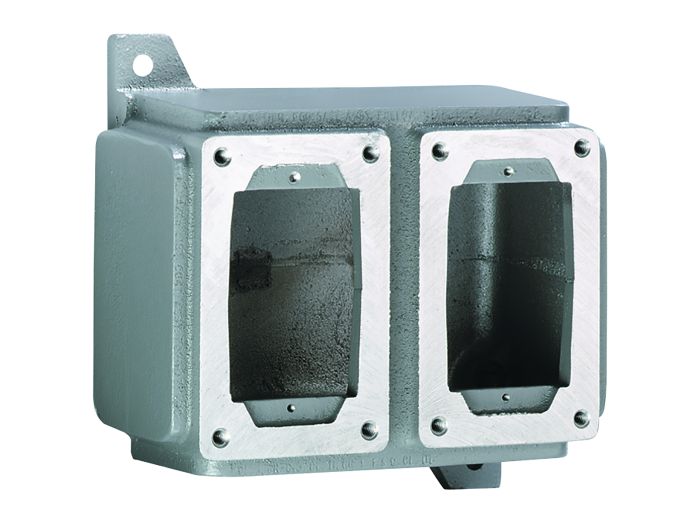

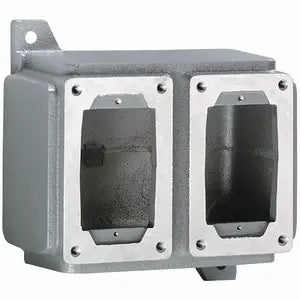

Killark SWB-18 swb series double-gang deep device body 1-1/2 inch max

Product Description

The Killark SWB-18 SWB Series control station back boxes provide control solutions in hazardous locations. They supply start/stop motor functions and LED pilot light indications for use with Killark XCS and XS cover assemblies. Suitable for Class 1 Division 1 & 2, and Class 1 Zone 1 & 2 areas for indoor use. Non-Factory Sealed, requiring a conduit seal fitting.

• Copper free cast aluminum alloy
• Designed for custom drilled and tapped conduit openings on all four sides and the back
• Ground flange joint between bolted cover and box provide required flame path

Product Highlights

Designed for hazardous locations, Killark SWB series device bodies are suitable for use with XCS, XS, and XST cover assemblies. UL Listed and CSA Certified.

Product Information

Standard Information

• Brand: Killark
• Manufacturer Part Number: SWB-18
• Country of Origin: United States

Technical Specifications

• Application: Hazardous locations due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fiber or flyings. Installations at petroleum refineries, chemical and petrochemical plants, and other processing or storage facilities where similar hazards exist. Use in conjunction with magnetic starters or contactors for remote control of motors.
• Catalog Number: SWB-18
• Color: Gray
• Material: Aluminum, Copper Free (less than 4/10 of 1%)
• Mounting Type: Wall
• Series: SWB Series
• Type: Aluminum Device Body
• UPC: 783936630205
• Depth: 3-5/16 in
• Dimensions: 8.75 in x 6 in x 6.75 in
• Height: 6.75 in
• Hub Size: Max. 1-1/2"
• Length: 8.75 in
• Weight: 5.44 lb
• Width: 6 in
• CSA File Number: LR11712
• Hazardous Rating(s): Class I, Divisions 1 & 2, Groups C, D Class I, Zones 1 & 2, Groups IIB, IIA Class II, Divisions 1 & 2, Groups E, F, G Class III, Divisions 1 & 2
• UL File Number: E53360
• Accessory Type: Conduit Bodies
• Country of Origin: United States
• Product Series: SWB
• Manufacturer Part Number: SWB-18
• Manufacturer: Killark
• Family Series: Killark Electrical Boxes, SWB Series
• Description: DEEP DEV BODY 1-1/2in. 2-GANG 1-1/2in. MAX
• Number of Gangs: 2
• Grounding: Yes
• Composition: Copper-Free Aluminum
• Hazardous Location: Yes
• Approvals: CSA, UL
