Killark SWB-10 swb Series Feed-Thru Double-Gang Device Body 1/2 Inch

Product Description

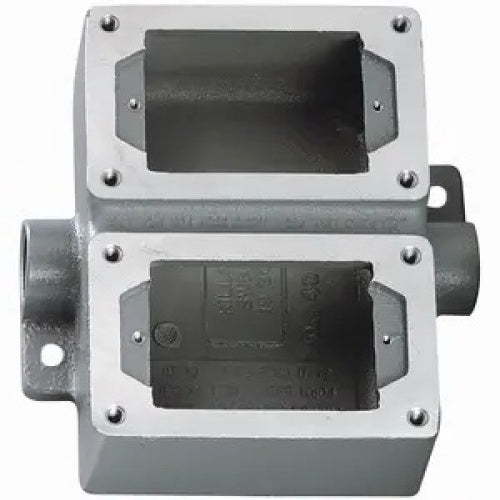

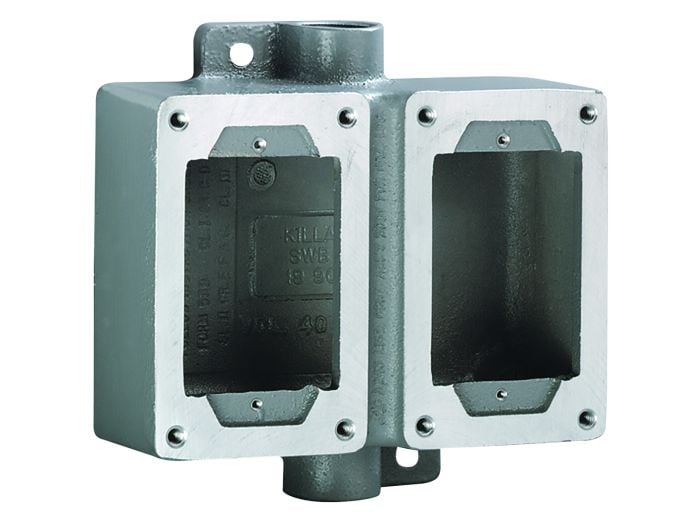

The Killark SWB-10 is an aluminum feed-thru double-gang device body for use with XCS/XS/XT cover assemblies with a 1/2 inch hub size. It is made from copper-free cast aluminum alloy and features a ground flange joint between the bolted cover and box to provide a flame path. It accepts both miniature and standard size push buttons and includes an internal ground screw.

• Copper free cast aluminum alloy
• Ground flange joint between bolted cover and box provide required flame path
• Accepts both miniature and standard size push buttons

Product Highlights

The Killark SWB-10 provides control solutions in hazardous locations and is UL Listed and CSA Certified.

Product Information

Standard Information

• Brand: Killark
• Manufacturer Part Number: SWB-10
• Country of Origin: United States

Technical Specifications

• Application: Hazardous locations due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fiber or flyings. Installations at petroleum refineries, chemical and petrochemical plants, and other processing or storage facilities where similar hazards exist. Use in conjunction with magnetic starters or contactors for remote control of motors.
• Catalog Number: SWB-10
• Color: Gray
• Material: Aluminum, Copper Free (less than 4/10 of 1%)
• Mounting Type: Wall
• Series: SWB Series
• Type: Aluminum Device Body
• UPC: 783936630106
• Depth: 2-1/4 in
• Height: 3.75 in
• Hub Size: 1/2"
• Length: 9.375 in
• Width: 6.25 in
• CSA File Number: LR11712
• Hazardous Rating(s): Class I, Divisions 1 & 2, Groups C, D Class I, Zones 1 & 2, Groups IIB, IIA Class II, Divisions 1 & 2, Groups E, F, G Class III, Divisions 1 & 2
• UL File Number: E53360
• Brand: KILLARK
• MPN: SWB-10
• Country of Origin: United States
• Product Series: SWB
• Manufacturer: Killark
• Family Series: Killark Electrical Boxes, SWB Series
• Description: 1/2in.SWB DEVBODY 5 7/8X6 1/2X2 1/4in. FDTHR
• Number of Gangs: 2
• Grounding: Yes
• Composition: Copper-Free Aluminum
• Hazardous Location: Yes
• Approvals: CSA, UL
