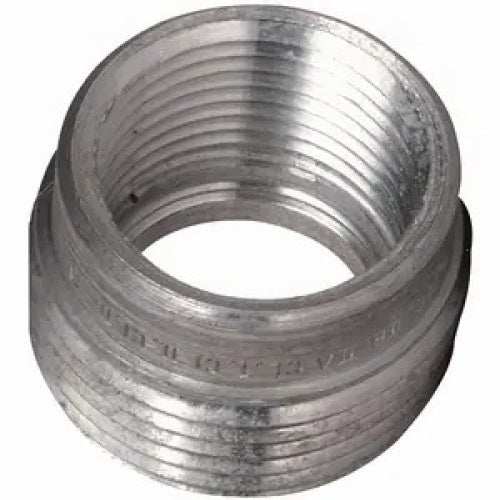

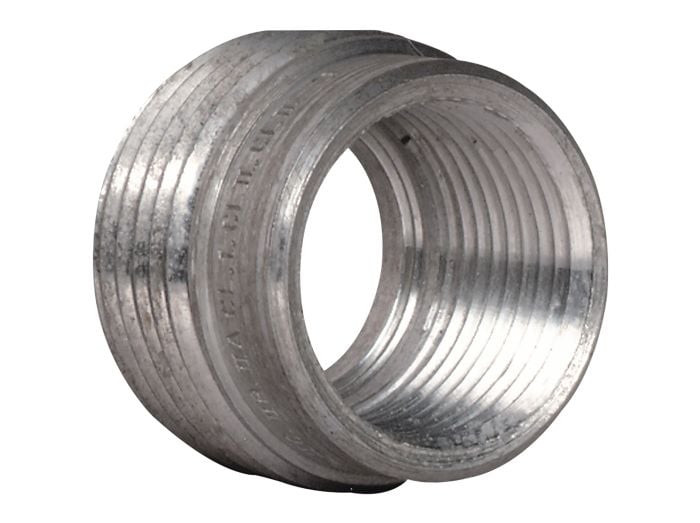

Killark R-41 Reducing Bushing 1-1/4 inches to 1/2 inches

Product Description

The Killark R-41 is a reducing bushing designed to reduce the trade size of tapped holes. It is threaded for rigid conduit or IMC. The smooth internal bushing protects conductors. It is available in copper-free aluminum. It is threaded for rigid conduit or IMC.

• Tapered threads (NPT)
• Smooth internal bushing protects conductors
• Threaded for Rigid Conduit or IMC

Product Highlights

The Killark R-41 reducing bushing assists in reducing the trade size of tapped holes. Its smooth internal bushing protects conductors.

Product Information

Standard Information

• Brand: Killark
• Manufacturer Part Number: R-41
• Country of Origin: US

Technical Specifications

• Catalog Number: R-41
• Series: R Series
• Type: Reducing Bushing
• Material: Aluminum, Copper Free (less than 4/10 of 1%)
• Hub Size: 1-1/4" to 1/2"
• Hazardous Rating(s): Class I, Divisions 1 & 2, Groups A, B, C, D Class I, Zones 1 & 2, Groups IIC, IIB, IIA Class II, Divisions 1 & 2, Groups E, F, G
• UL File Number: E10514
• CSA File Number: LR11716
• Connection Type: Male/Female
• External Thread: 1-1/4 NPT
• Internal Thread: 1/2 NPT
• Length: 0.81 "
• Approvals: CSA, UL
• Conduit Size: 1-1/4 x 1/2 in
• Trade Size: 1-1/4 x 1/2 in
• Finish Type: Natural
• Brand: KILLARK
• Country of Origin: United States
