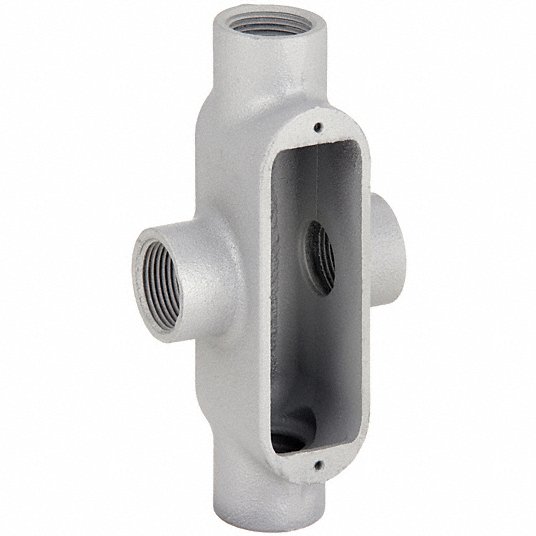

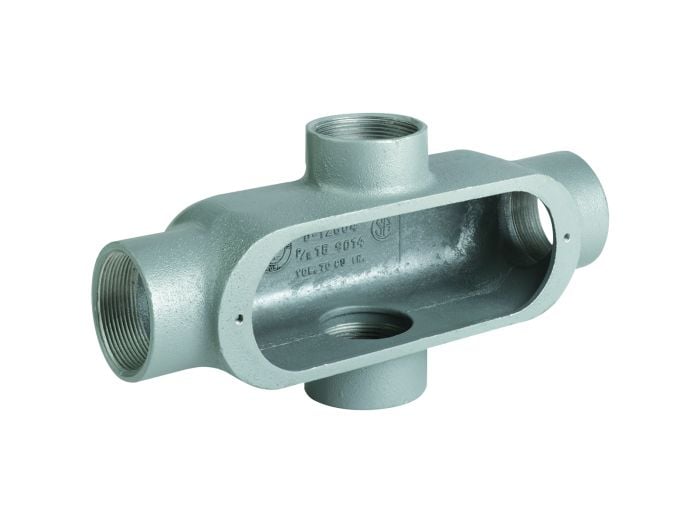

Killark OX-6M Conduit Body 2 inches X Hub, Iron O Series

Product Description

The KILLARK OX-6M is a 2" X Hub, Iron O Series Conduit Body designed to provide access to conductors for pulling, splicing, and maintenance. It is threaded for rigid conduit and IMC. The malleable iron construction is suitable for use in concrete, and it is raintight when used with gasketed covers. Volume is 70 cu. in.

• Raintight when used with gasketed covers.
• Malleable iron suitable for use in concrete.
• Interchangeable with competitive products.

Product Highlights

This conduit body features stainless steel screws on stamped and cast covers and tapered threaded hubs (NPT).

Product Information

Standard Information

• Brand: KILLARK
• Manufacturer Part Number: OX-6M
• Country of Origin: India

Technical Specifications

• Application: To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
• Catalog Number: OX-6M
• Color: Gray
• Material: Iron
• Series: O Series
• Type: Conduit Body
• UPC: 783936480961
• Height: 4 in
• Hub Size: 2"
• Length: 12.5 in
• Width: 6.375 in
• CSA File Number: LR11852
• Hazardous Rating(s): Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
• Capacity: 70 Cubic Inch
• Body Style: X
• Number of Hubs: 4
• Connection Orientation: Multi-Angle
• Connection Type: Threaded
• Body Capacity: 70 cu in
• Finish: Powder Coated
• Hub Style: Threaded
• Type of Body: Conduit Outlet Body
• Standards: CSA; UL
• Includes: Set Screw Hubs
• For Use With: IMC; RMC
• Back Type: Flat
• Overall Width: 6-3/8 in
• Overall Length: 12-1/2 in
• Overall Height: 4 in
• Thread Size: 2 in
• Thread Gender: Female
• Thread Type: NPT
• Hazardous Location: Yes
• Item: Conduit Outlet Body
• Manufacturer Part Number: OX-6M
• UNSPSC: 39121202
• Manufacturer: Killark
• Product Series: O
• Family Series: Killark Conduit Outlet Bodies, O Series
• Description: DURALOY 2in. X COND BDY FE
• Style: Threaded Iron
• Shape: X
• Cover Included: No
• Gasket Included: No
• Conduit Type: IMC (Intermediate Metal Conduit), RMC (Rigid Metal Conduit)
• Composition: Duraloy Iron
• Protection Rating: Indoor, Outdoor
• Compatible Conduit Type: IMC; RMC
• Compatible Conduit Trade Size: 2 in
• Trade Size: 2 "
