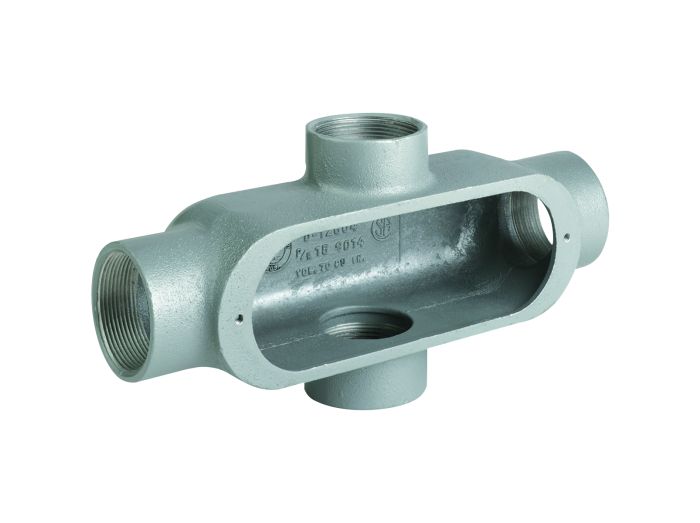

Killark OX-5M 1-1/2 inches X Hub, Iron O Series Conduit Body

Product Description

The KILLARK OX-5M 1-1/2" X Hub, Iron O Series Conduit Body provides access to conductors for pulling, splicing, and maintenance. It is threaded for rigid conduit and IMC. The malleable iron construction is suitable for use in concrete, and the design is interchangeable with competitive products. Volume is 36 cu. in.

• Tapered threaded hubs (NPT)
• Raintight when used with gasketed covers
• Malleable iron suitable for use in concrete

Product Highlights

This conduit body features tapered threaded hubs, raintight construction when used with gasketed covers, and malleable iron suitable for concrete applications.

Product Information

Standard Information

• Brand: KILLARK
• Manufacturer Part Number: OX-5M
• Country of Origin: India

Technical Specifications

• Catalog Number: OX-5M
• Manufacturer: Killark, a Hubbell affiliate
• Brand: KILLARK
• Sub Brand: DURALOY 5
• Country of Origin: India
• Made in USA: No
• Application: To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
• Color: Gray
• Finish: Powder Epoxy Paint
• Material: Iron
• Special Features: Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Malleable iron suitable for use in concrete. Interchangeable with competitive products. Volume is 36 cu. in.
• Standard: UL, CSA
• UPC: 783936480954
• GTIN: 00783936480954
• Item Type: Conduit Body
• Length: 10.75 Inch
• Width: 5.75 Inch
• Height: 5.875 Inch
• Form: Form 5
• Type: Conduit Body
• Shape: X
• Series: O
• Hub Size: 1 1/2 in
• Includes: Set Screw Hubs
• Back Type: Flat
• Body Type: Conduit Outlet Body
• Hub Style: Threaded
• Trade Size: 1 1/2 in
• Finish Type: Powder Epoxy Paint
• Hub Pattern: X
• Thread Size: 1 1/2 in
• Thread Type: NPT
• Overall Width: 5 3/4 in
• Thread Gender: Female
• Number of Hubs: 4
• Overall Height: 5 7/8 in
• Overall Length: 10 3/4 in
• Connection Type: Threaded
• Compatible Cover: OL-45M
• Hazardous Location: Yes
• Hazardous Rating(s): Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
• Connection Orientation: Multi-Angle
• Compatible Conduit Type: IMC, RMC
• Conduit Outlet Hub Size: 1-1/2"
• Conduit Outlet Body Type: Conduit Outlet Body
• Conduit Outlet Body Style: X
• Hazardous Location Rating: Class I, Division 2, Class I, Zone 2
• Conduit Outlet Body Capacity: 36.0 cu in
• Conduit Outlet Body Hub Size: 1 1/2 in
• Conduit Outlet Body Material: Iron
• Compatible Conduit Trade Size: 1 1/2 in
• Conduit Outlet Body Hub Style: Threaded
• EU RoHS Indicator: Contact Manufacturer
• CSA File Number: LR11852
• Buy America(n) Qualified: Contact Manufacturer
• Capacity: 36 Cubic Inch
• Product Series: O
• Family Series: Killark Conduit Outlet Bodies, O Series
• Description: DURALOY 1 1/2in. X COND BDY FE
• Style: Threaded Iron
• Composition: Duraloy Iron
• Protection Rating: Indoor, Outdoor
• Approvals: CSA, UL
