Killark OX-4 type x conduit body 1-1/4 in.

Product Description

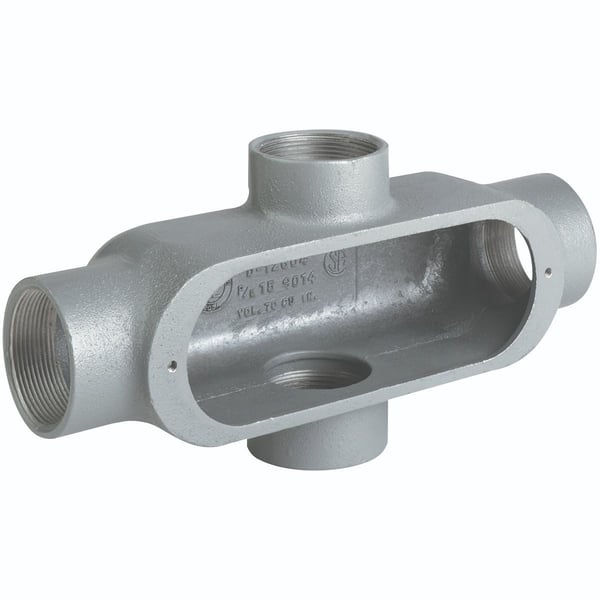

The Killark OX-4 is a type X conduit body made of aluminum with a 1-1/4 inch hub. It provides access to conductors for pulling, splicing, and maintenance. It is threaded for Rigid and IMC Conduit. Designed to withstand harsh conditions, this conduit body is suitable for use in hazardous locations.

• Features tapered threaded hubs (NPT)
• Raintight when used with gasketed covers
• Interchangeable with competitive products

Product Highlights

The Killark OX-4 conduit body is ideal for providing access to conductors in harsh and hazardous environments.

Product Information

Standard Information

• Brand: Killark
• Manufacturer Part Number: OX-4
• Country of Origin: United States

Technical Specifications

• Type: Type X
• Configuration: X
• Hub Size: 1-1/4 in.
• Installation: Threaded
• Cover: Cover and Gasket Included
• Material: Aluminum
• Number of Hubs: 3
• Hub Placement: Cross
• Access: Side
• Application: For used to provide access to conductors for pulling, splicing and maintenance and threaded for Rigid and IMC Conduit
• Standard & Approvals: CSA LR11852 Certified, UL E3397 Listed, RoHS Compliant
• Capacity: 32 cu-in
• Color: Gray
• Connection Type: Threaded
• Finish: Powder Coated
• Form: 5
• Country of Origin: United States
