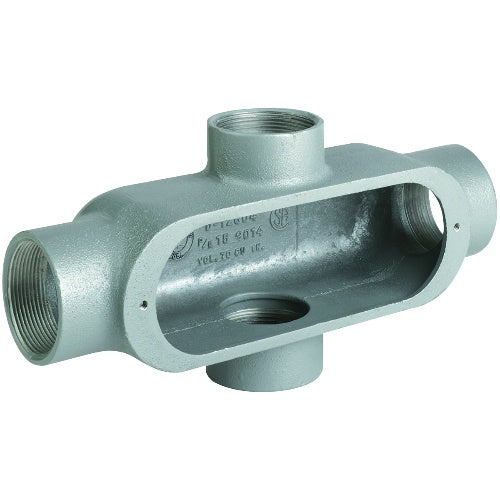

Killark OX-3M Conduit Body 12.0 cu. in. Capacity

Product Description

The KILLARK OX-3M conduit outlet body has a capacity of 12.0 cu. in. It is threaded for rigid conduit and IMC, providing access to conductors for pulling, splicing, and maintenance. This iron conduit body is powder coated and features set screw hubs. Suitable for hazardous locations when installed according to NEC articles.

• Set Screw Hubs
• Hazardous Location
• Raintight when used with gasketed covers

Product Highlights

The Killark OX-3M is an iron conduit body with a 12.0 cu. in. capacity, suitable for hazardous locations and provides access for wire maintenance.

Product Information

Standard Information

• Brand: KILLARK
• Manufacturer Part Number: OX-3M
• Country of Origin: India

Technical Specifications

• Item: Conduit Outlet Body
• Type: Conduit Body
• Color: Gray
• Shape: X
• Width: 4 in
• Finish: Powder Coated
• Height: 3 in
• Length: 8 in
• Series: O Series
• Hub Size: 1 in
• Material: Iron
• Body Type: Conduit Outlet Body
• Hub Style: Threaded
• Standards: CSA, UL
• Body Style: X
• Trade Size: 1 in
• Application: To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
• Finish Type: Powder Epoxy Paint
• Hub Pattern: X
• Thread Size: 1 in
• Thread Type: NPT
• Thread Gender: Female
• Number of Hubs: 4
• Connection Type: Threaded
• Compatible Cover: OL-30M
• Special Features: Set Screw Hubs
• Hazardous Location: Yes
• Hazardous Rating(s): Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
• Connection Orientation: Multi-Angle
• Compatible Conduit Type: IMC, RMC
• Conduit Outlet Body Type: Conduit Outlet Body
• Conduit Outlet Body Style: X
• Hazardous Location Rating: Class I, Division 2, Class I, Zone 2
• Conduit Outlet Body Capacity: 12.0 cu in
• Conduit Outlet Body Hub Size: 1 in
• Conduit Outlet Body Material: Iron
• Compatible Conduit Trade Size: 1 in
• Conduit Outlet Body Hub Style: Threaded
• Country of Origin (subject to change): India
• UPC: 783936480930
• CSA File Number: LR11852
• UL File Number: E3397
• Capacity: 12 cu-in
