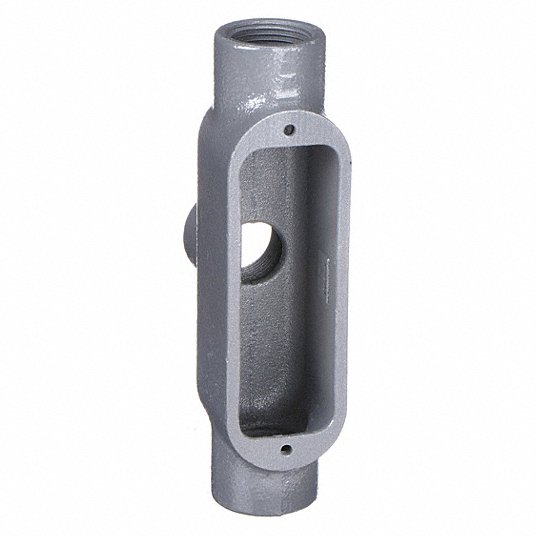

Killark OTB-6M Conduit Outlet Body Iron 2 inches TB

Product Description

The KILLARK OTB-6M conduit outlet body provides access to conductors for pulling, splicing, and maintenance. It is threaded for rigid conduit and IMC. The malleable iron construction is suitable for use in concrete. This conduit body has a volume of 70 cu. in.

• Threaded for rigid conduit and IMC
• Raintight when used with gasketed covers
• Malleable iron suitable for use in concrete
• Tapered threaded hubs (NPT)

Product Highlights

The Killark OTB-6M is ideal for providing access to conductors, with a 2" hub size and a durable iron construction.

Product Information

Standard Information

• Brand: KILLARK
• Manufacturer Part Number: OTB-6M
• Country of Origin: India

Technical Specifications

• Catalog Number: OTB-6M
• Manufacturer: Killark, a Hubbell affiliate
• Brand: KILLARK
• Sub Brand: DURALOY 5
• Country of Origin: India
• Made in USA: No
• Application: To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
• Color: Gray
• Finish: Powder Epoxy Paint
• Hub Size: 2"
• Material: Iron
• Special Features: Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Malleable iron suitable for use in concrete. Interchangeable with competitive products. Volume is 70 cu. in.
• Standard: UL, CSA
• UPC: 783936480909
• GTIN: 00783936480909
• Item Type: Conduit Body
• Length: 12 Inch
• Width: 6.75 Inch
• Height: 5.25 Inch
• Form: Form 7
• Type: Conduit Body
• Series: O Series
• Includes: Stainless Steel Screws
• Back Type: Flat
• Body Type: Conduit Outlet Body
• Hub Style: Threaded
• Body Style: TB
• Trade Size: 2 in
• Thread Size: 2 in
• Thread Type: NPT
• For Use With: IMC, RMC
• Style of Hub: Threaded
• Body Capacity: 70 cu in
• Overall Width: 6 3/4 in
• Thread Gender: Female
• Number of Hubs: 3
• Overall Height: 5 1/4 in
• Overall Length: 12 in
• Connection Type: Threaded
• Compatible Cover: OL-60M
• Hazardous Location: Yes
• Connection Orientation: Multi-Angle
• Compatible Conduit Type: IMC, RMC
• Conduit Outlet Hub Size: 2"
• Conduit Outlet Body Style: TB
• Hazardous Location Rating: Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
• Conduit Outlet Body Capacity: 70.0 cu in
• Conduit Outlet Body Hub Size: 2 in
• Conduit Outlet Body Material: Iron
• Compatible Conduit Trade Size: 2 in
• Conduit Outlet Body Hub Style: Threaded
• Capacity: 70 Cubic Inch
