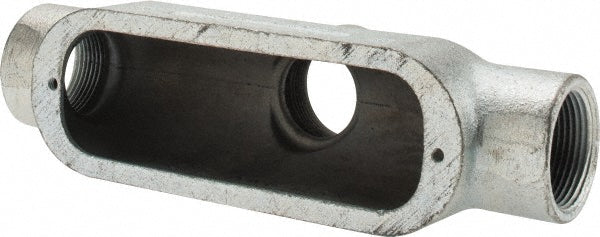

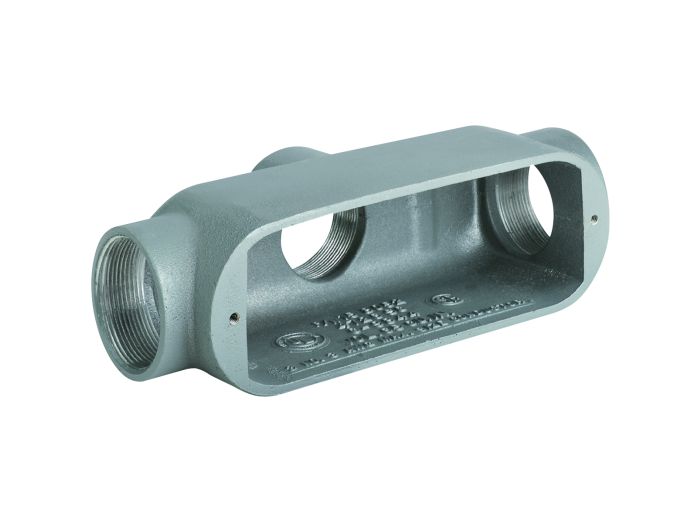

Killark OTB-4M Conduit Outlet Body, Iron, TB 1 1/4 in

Product Description

The KILLARK OTB-4M conduit outlet body provides access to conductors for pulling, splicing, and maintenance. This iron TB style conduit body has a trade size of 1 1/4 in and a body capacity of 32 cu in. It is suitable for use in hazardous locations and is compatible with IMC and RMC conduit types.

• Compatible Conduit Type: IMC, RMC
• Hazardous Location: Yes
• Connection Type: Threaded

Product Highlights

Iron conduit outlet body with 1 1/4 in trade size, suitable for hazardous locations and provides access for maintenance.

Product Information

Standard Information

• Brand: KILLARK
• Manufacturer Part Number: OTB-4M
• Country of Origin: India

Technical Specifications

• Item: Conduit Outlet Body
• Type: Conduit Body
• Color: Gray
• Shape: Oval
• Finish: Powder Epoxy Paint
• Series: O Series
• Hub Size: 1-1/4"
• Includes: Stainless Steel Screws
• Material: Iron
• Back Type: Flat
• Body Type: Conduit Outlet Body
• Hub Style: Threaded
• Standards: CSA, UL
• Body Style: TB
• Trade Size: 1 1/4 in
• Application: To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
• Thread Size: 1 1/4 in
• Thread Type: NPT
• For Use With: IMC, RMC
• Body Capacity: 32 cu in
• Overall Width: 5 7/8 in
• Thread Gender: Female
• Number of Hubs: 3
• Overall Height: 4 3/4 in
• Overall Length: 10 5/8 in
• Connection Type: Threaded
• Compatible Cover: OL-45M
• Hazardous Location: Yes
• Connection Orientation: Multi-Angle
• Compatible Conduit Type: IMC, RMC
• Hazardous Location Rating: Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
• Conduit Outlet Body Capacity: 32.0 cu in
• Conduit Outlet Body Hub Size: 1 1/4 in
• Conduit Outlet Body Material: Iron
• Compatible Conduit Trade Size: 1 1/4 in
• Conduit Outlet Body Hub Style: Threaded
• Country of Origin (subject to change): India
• Catalog Number: OTB-4M
• Height: 4.75 in
• Length: 10.625 in
• Width: 5.875 in
• Manufacturer: Hubbell
• Product Series: O
• Family Series: Killark Conduit Outlet Bodies, O Series
• Description: DURALOY 1 1/4in. TB COND BDY
• Style: Threaded Iron
• Composition: Duraloy Iron
• Protection Rating: Indoor, Outdoor
• Approvals: CSA, UL
• Conduit Body Type: TB
• Conduit Type: IMC; Rigid
• Volume Capacity (Cu. In.): 32
• Recommended Environment: Wet Locations; Hazardous Locations
• Resistance Features: Rain-Tight
• Standards Met: Federal Specification W-C-586D; NEC Article 501.10 (b) Class I Division 2; Federal Specification A-A-50563; CSA File LR11852 Certified; NEC Article 502.10; NEC Article 503.10; UL Listed File E3397
