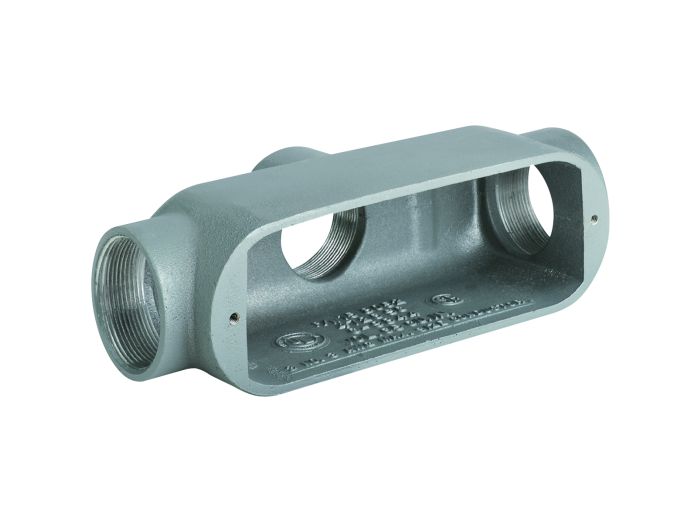

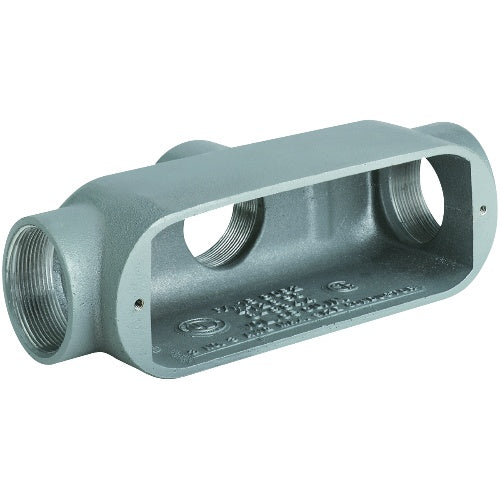

Killark OTB-3M 1 inches TB Hub Iron O Series Conduit Body

Product Description

The KILLARK OTB-3M is a 1" TB hub iron O series conduit body designed to provide access to conductors for pulling, splicing, and maintenance. It is threaded for rigid conduit and IMC. The malleable iron construction is suitable for use in concrete and is raintight when used with gasketed covers.

• Features tapered threaded hubs (NPT)
• Raintight when used with gasketed covers
• Malleable iron suitable for use in concrete

Product Highlights

This Killark conduit body is interchangeable with competitive products and has a volume of 12 cu. in. It is suitable for indoor and outdoor applications.

Product Information

Standard Information

• Brand: KILLARK
• Manufacturer Part Number: OTB-3M
• Country of Origin: India

Technical Specifications

• Catalog Number: OTB-3M
• Manufacturer: Killark
• Brand: Killark
• Sub Brand: DURALOY 5
• Country of Origin: India
• Made in USA: No
• Application: To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
• Color: Gray
• Finish: Powder Epoxy Paint
• Hub Size: 1"
• Material: Iron
• Special Features: Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Malleable iron suitable for use in concrete. Interchangeable with competitive products. Volume is 12 cu. in.
• Standard: UL, CSA
• UPC: 783936480879
• GTIN: 00783936480879
• Item Type: Conduit Body
• Length: 8
• Length UOM: Inch
• Width: 2
• Width UOM: Inch
• Height: 3
• Height UOM: Inch
• Form: Form 7
• Type: Conduit Body
• Shape: TB
• Series: O Series
• Includes: Stainless Steel Screws
• Back Type: Flat
• Body Type: Conduit Outlet Body
• Hub Style: Threaded
• Trade Size: 1 in
• Finish Type: Powder Epoxy Paint
• Hub Pattern: TB
• Thread Size: 1 in
• Thread Type: NPT
• Thread Gender: Female
• Number of Hubs: 3
• Compatible Cover: OL-30M
• Hazardous Location: Yes
• Body Capacity: 12 cu in
• Overall Width: 2 in
• Overall Height: 3 in
• Overall Length: 8 in
• Connection Type: Threaded
• Compatible Conduit Type: IMC, RMC
• Conduit Outlet Body Type: Conduit Outlet Body
• Conduit Outlet Body Style: TB
• Conduit Outlet Body Capacity: 12.0 cu in
• Conduit Outlet Body Hub Size: 1 in
• Conduit Outlet Body Material: Iron
• Compatible Conduit Trade Size: 1 in
• Conduit Outlet Body Hub Style: Threaded
• Product Series: O
• Family Series: Killark Conduit Outlet Bodies, O Series
• Description: 1in. DURALOY CONDUIT BODY TYPE TB
• Style: Threaded Iron
• Cover Included: No
• Gasket Included: No
• Conduit Type: IMC (Intermediate Metal Conduit), RMC (Rigid Metal Conduit)
• Composition: Duraloy Iron
• Protection Rating: Indoor, Outdoor
• Approvals: CSA, UL
• Capacity: 12 cu-in
