Product Description

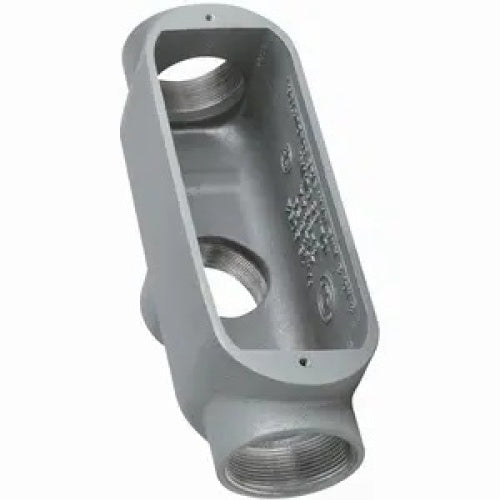

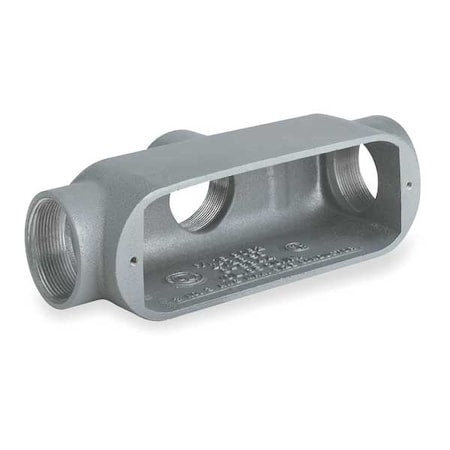

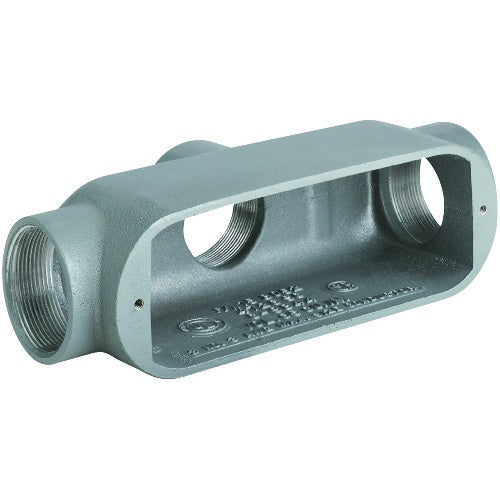

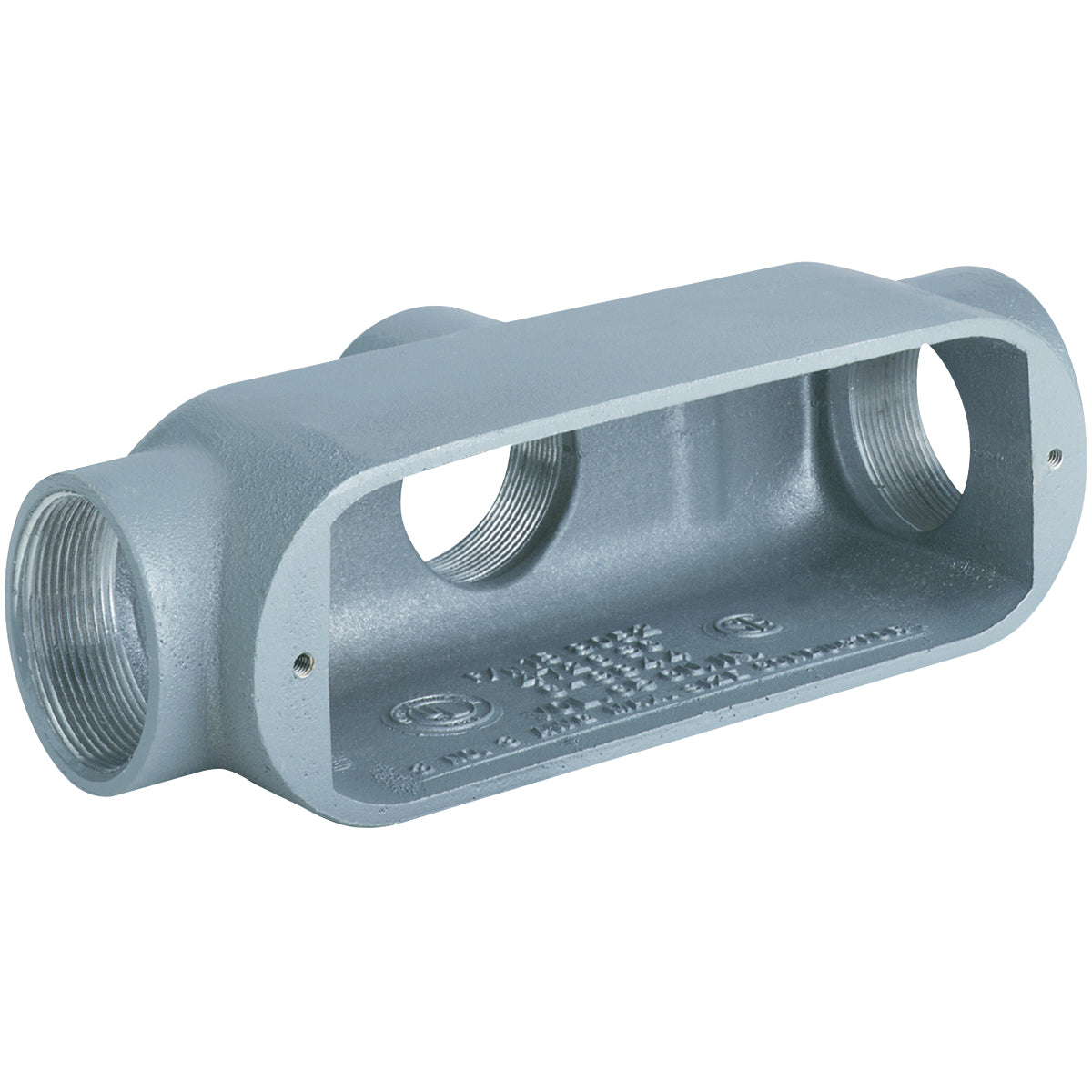

The KILLARK OTB-1M is an iron O series conduit body designed to provide access to conductors for pulling, splicing, and maintenance. This conduit body features 1/2 inch tapered threaded NPT hubs, making it suitable for rigid conduit and IMC applications. It is raintight when used with gasketed covers and constructed from malleable iron, allowing for use in concrete. With a body capacity of 4 cubic inches, it measures 6 inches in length, 2 inches in width, and 3 inches in height.
- Tapered threaded hubs (NPT) for secure connections.
- Raintight design when used with gasketed covers.
- Malleable iron construction suitable for concrete applications.
Product Highlights
This KILLARK OTB-1M conduit body offers convenient access for electrical wiring, features durable malleable iron construction, and is interchangeable with competitive products.
Product Information
Standard Information
-
Brand: KILLARK
-
Manufacturer Part Number: OTB-1M
-
Country of Origin: India
Technical Specifications
-
Catalog Number: OTB-1M
-
Manufacturer: Killark
-
Brand: KILLARK
-
Sub Brand: DURALOY 5
-
Country Of Origin: India
-
Made In USA: No
-
Application: To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
-
Color: Gray
-
Finish: Powder Epoxy Paint
-
Hub Size: 1/2"
-
Material: Iron
-
Special Features: Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Malleable iron suitable for use in concrete. Interchangeable with competitive products. Volume is 4 cu. in.
-
Standards: UL, CSA
-
UPC: 783936480855
-
GTIN: 00783936480855
-
Item Type: Conduit Body
-
Length: 6 Inch
-
Width: 2 Inch
-
Height: 3 Inch
-
Form: Form 7
-
Shape: TB
-
Series: O Series
-
Includes: Stainless Steel Screws
-
Back Type: Flat
-
Body Type: Conduit Outlet Body
-
Hub Style: Threaded
-
Body Style: TB
-
Trade Size: 1/2 Inch
-
Hub Pattern: TB
-
Thread Size: 1/2 Inch
-
Thread Type: NPT
-
For Use With: IMC, RMC
-
Body Capacity: 4 cu in
-
Thread Gender: Female
-
Number of Hubs: 3
-
Carton Quantity: 5
-
Connection Type: Threaded
-
Compatible Cover: OL-10M
-
Hazardous Location Rating: Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
-
Connection Orientation: Multi-Angle
-
Compatible Conduit Type: IMC, RMC
-
CSA File Number: LR11852
-
UL File Number: E3397
-
Component: Fittings
-
Sub Component: Conduit Body
