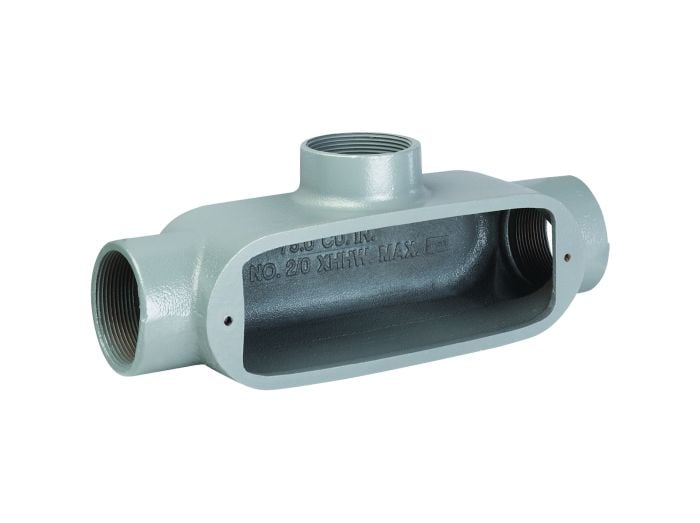

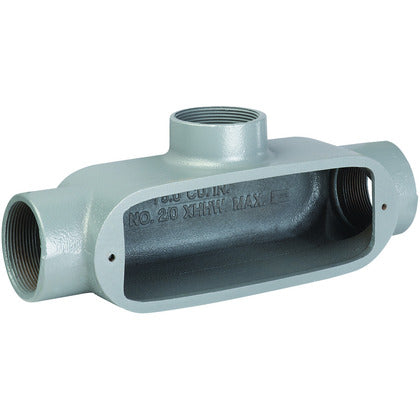

Killark OT-8M 3 inches T Hub, Iron O Series Conduit Body

Product Description

The KILLARK OT-8M is a 3" T Hub, Iron O Series Conduit Body designed to provide access to conductors for pulling, splicing, and maintenance. It is raintight when used with gasketed covers and features malleable iron suitable for use in concrete. This conduit body is interchangeable with competitive products and has tapered threaded hubs (NPT). Volume is 173 cu. in.

• Raintight when used with gasketed covers.
• Malleable iron suitable for use in concrete.
• Interchangeable with competitive products.

Product Highlights

Provides access to conductors with raintight malleable iron construction and tapered threaded hubs.

Product Information

Standard Information

• Brand: KILLARK
• Manufacturer Part Number: OT-8M

Technical Specifications

• Application: To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
• Catalog Number: OT-8M
• Color: Gray
• Material: Iron
• Series: O Series
• Type: Conduit Body
• UPC: 783936480794
• Height: 5 in
• Hub Size: 3"
• Length: 16 in
• Width: 6 in
• CSA File Number: LR11852
• Hazardous Rating(s): Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
• UL File Number: E3397
• Product Series: O
• Family Series: Killark Conduit Outlet Bodies, O Series
• Description: DURALOY 3in. T COND BDY FE
• Style: Threaded Iron
• Shape: T
• Number of Hubs: 3
• Cover Included: No
• Gasket Included: No
• Conduit Type: IMC (Intermediate Metal Conduit), RMC (Rigid Metal Conduit)
• Connection Type: Threaded
• Trade Size: 3 "
• Composition: Duraloy Iron
• Protection Rating: Indoor, Outdoor
• Hazardous Location: Yes
• Approvals: CSA, UL
