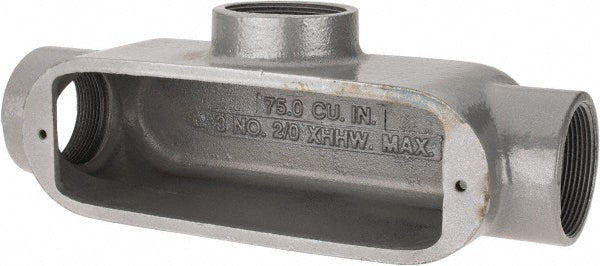

Killark OT-6M 2 inches T Hub, Iron O Series Conduit Body

Product Description

The KILLARK OT-6M 2" T Hub, Iron O Series Conduit Body provides access to conductors for pulling, splicing, and maintenance. It is threaded for rigid conduit and IMC. The malleable iron construction is suitable for use in concrete. This conduit body has a volume of 70 cu. in.

• Features tapered threaded hubs (NPT)
• Raintight when used with gasketed covers
• Malleable iron suitable for use in concrete
• Interchangeable with competitive products

Product Highlights

This iron conduit body is suitable for use in hazardous locations and wet locations when used with gasketed covers.

Product Information

Standard Information

• Brand: KILLARK
• Manufacturer Part Number: OT-6M
• Country of Origin: India

Technical Specifications

• Catalog Number: OT-6M
• Manufacturer: Killark, a Hubbell affiliate
• Brand: Killark
• Sub Brand: DURALOY 5
• Country of Origin: India
• Made in USA: No
• Application: To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
• Color: Gray
• Finish: Powder Epoxy Paint
• Hub Size: 2"
• Material: Iron
• Special Features: Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Malleable iron suitable for use in concrete. Interchangeable with competitive products. Volume is 70 cu. in.
• Standard: UL, CSA
• UPC: 783936480770
• GTIN: 00783936480770
• Item Type: Conduit Body
• Length: 13.875 Inch
• Width: 8.25 Inch
• Height: 5.375 Inch
• Series: O Series
• Form: Form 7
• Type: Conduit Body
• Shape: Oval
• Includes: Stainless Steel Screws
• Back Type: Flat
• Body Type: Conduit Outlet Body
• Hub Style: Threaded
• Body Style: T
• Trade Size: 2 in
• Finish Type: Powder Epoxy Paint
• Hub Pattern: T
• Thread Size: 2 in
• Thread Type: NPT
• For Use With: IMC, RMC
• Style of Hub: Threaded
• Body Capacity: 70 cu in
• Thread Gender: Female
• Number of Hubs: 3
• Connection Type: Threaded
• Compatible Cover: OL-60M
• Hazardous Location: Yes
• Hazardous Rating(s): Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
• Connection Orientation: Multi-Angle
• Compatible Conduit Type: IMC, RMC
• Conduit Outlet Hub Size: 2"
• Conduit Outlet Body Type: Conduit Outlet Body
• Conduit Outlet Body Style: T
• Conduit Outlet Body Capacity: 70.0 cu in
• Conduit Outlet Body Hub Size: 2 in
• Conduit Outlet Body Material: Iron
• Compatible Conduit Trade Size: 2 in
• Conduit Outlet Body Hub Style: Threaded
• CSA File Number: LR11852
• Capacity: 70 cu-in
• Material of Construction: Malleable Iron
• Conduit Form Type: 35
• Conduit Body Type: T
• Trade Size (Inch): 2 in
• Conduit Type: IMC; Rigid
• Volume Capacity (Cu. In.): 70
• Recommended Environment: Wet Locations; Hazardous Locations
• Resistance Features: Rain-Tight
• Standards Met: Federal Specification W-C-586D; NEC Article 501.10 (b) Class I Division 2; Federal Specification A-A-50563; CSA File LR11852 Certified; NEC Article 502.10; NEC Article 503.10; UL Listed File E3397
• UNSPSC Code: 39121300
• Item: Conduit Outlet Body
• Style: Conduit Outlet Body
