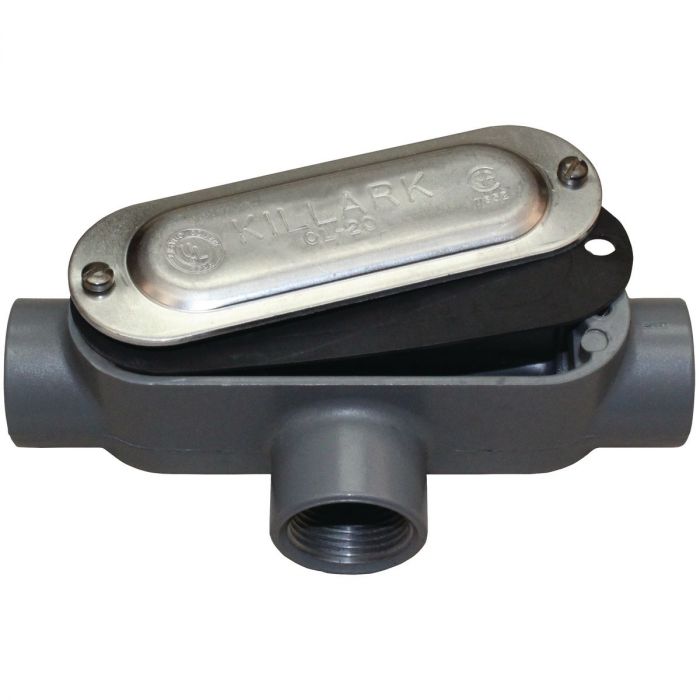

Killark OT-6CG O Series Type T Conduit Body 2 in 70 cu-in

Product Description

The KILLARK OT-6CG is an O Series Type T conduit body with a 2-inch hub and a 70 cu-in capacity. It provides access to conductors for pulling, splicing, and maintenance. This conduit body is threaded for rigid conduit and IMC. It features tapered threaded hubs and a raintight design.

• Features tapered threaded hubs (NPT)
• Raintight design
• Constructed from copper-free aluminum

Product Highlights

This aluminum conduit body is ideal for providing access to conductors for pulling, splicing, and maintenance.

Product Information

Standard Information

• Brand: KILLARK
• Manufacturer Part Number: OT-6CG

Technical Specifications

• Type: Type T
• Color: Gray
• Finish: Powder Coated
• Series: O Series
• Capacity: 70 cu-in
• Hub Size: 2 in
• Number of Hubs: 3
• Connection Type: Tapered NPT
• Application: To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
• Catalog Number: OT-6CG
• Material: Aluminum, Copper Free (less than 4/10 of 1%)
• UPC: 783936480145
• Standard & Approvals: UL Listed, CSA Certified, RoHS Compliant
