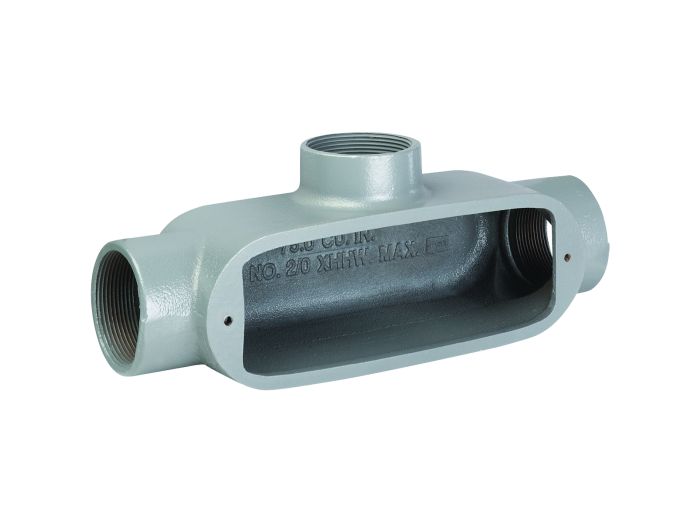

Killark OT-4M 1-1/4 inches T Hub, Iron O Series Conduit Body

Product Description

The KILLARK OT-4M is a 1-1/4" T hub, iron O series conduit body designed to provide access to conductors for pulling, splicing, and maintenance. It is threaded for rigid conduit and IMC. The body capacity is 32 cu in and features tapered threaded hubs (NPT). It is suitable for use in hazardous locations.

• Tapered threaded hubs (NPT)
• Raintight when used with gasketed covers
• Malleable iron suitable for use in concrete

Product Highlights

This iron conduit body is raintight when used with gasketed covers and interchangeable with competitive products. Stainless steel screws are included.

Product Information

Standard Information

• Brand: KILLARK
• Manufacturer Part Number: OT-4M
• Country of Origin: India

Technical Specifications

• Hub Size: 1-1/4"
• Series: O Series
• Material: Iron
• Body Type: Conduit Outlet Body
• Hub Style: Threaded
• Standards: CSA, UL
• Body Style: T
• Trade Size: 1 1/4 in
• Application: To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
• Hub Pattern: T
• Thread Size: 1 1/4 in
• Thread Type: NPT
• For Use With: IMC, RMC
• Body Capacity: 32 cu in
• Overall Width: 3 in
• Thread Gender: Female
• Number of Hubs: 3
• Compatible Cover: OL-45M
• Hazardous Location: Yes
• Connection Orientation: Multi-Angle
• Compatible Conduit Type: IMC, RMC
• Conduit Outlet Hub Size: 1-1/4"
• Conduit Outlet Body Type: Conduit Outlet Body
• Conduit Outlet Body Style: T
• Conduit Outlet Body Capacity: 32.0 cu in
• Conduit Outlet Body Hub Size: 1 1/4 in
• Conduit Outlet Body Material: Iron
• Compatible Conduit Trade Size: 1 1/4 in
• Conduit Outlet Body Hub Style: Threaded
• Finish: Powder Coated
• Connection Type: Threaded
• Item: Conduit Outlet Body
• Type: Conduit Body
• Width: 3.000 in
• Length: 10 in
• Includes: Stainless Steel Screws
• Form: Form 7
• UPC: 783936480756
• CSA File Number: LR11852
• Hazardous Rating(s): Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
• UL File Number: E3397
• Brand: Hubell Killark
• MPN: OT-4M
• Flexibility: Rigid
• Composition: Duraloy Iron
• Protection Rating: Indoor, Outdoor
