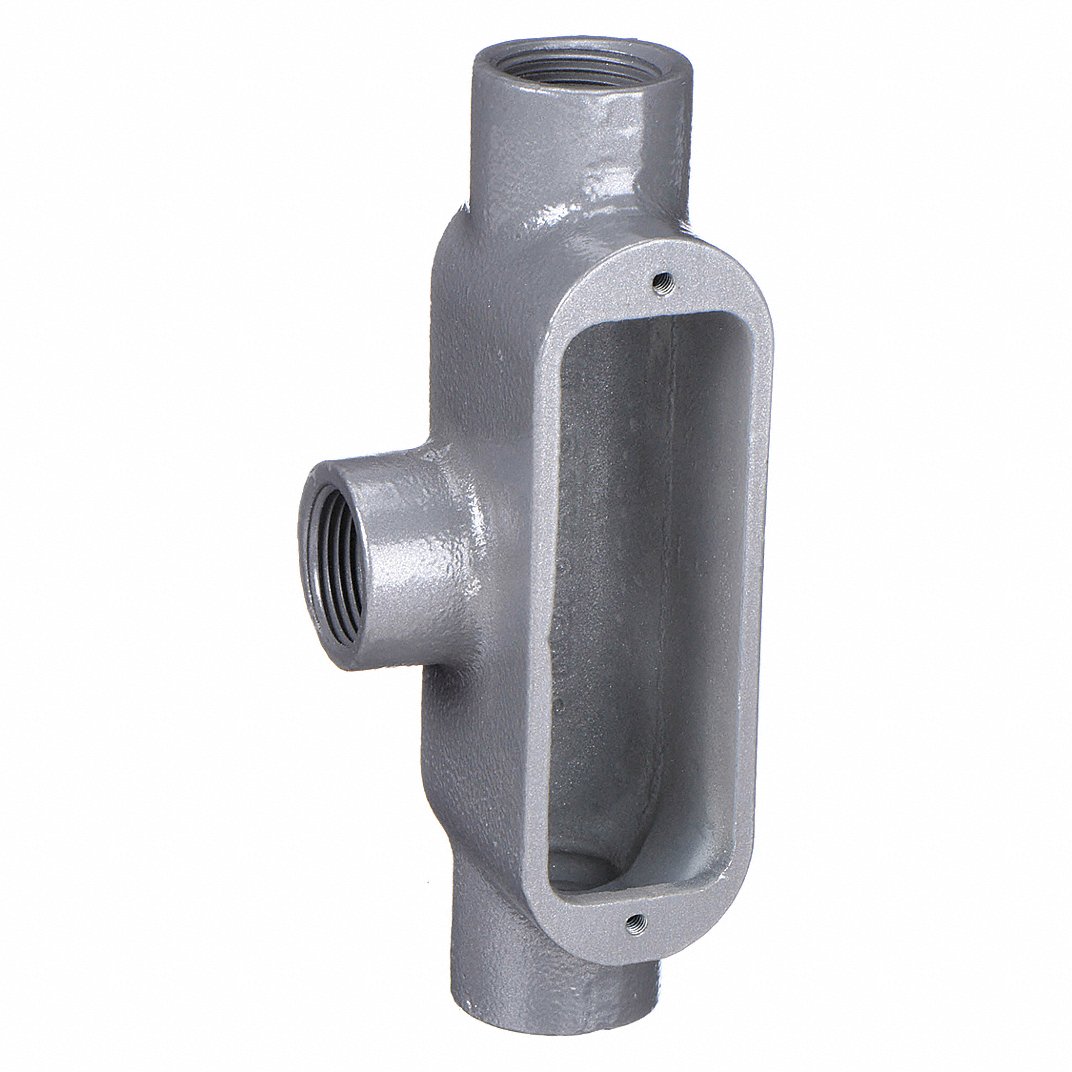

Killark OT-1M Conduit Body 1/2 inches T Hub, Iron O Series

Product Description

The KILLARK OT-1M 1/2" T Hub, Iron O Series Conduit Body provides access to conductors for pulling, splicing, and maintenance. It is threaded for rigid conduit and IMC. The malleable iron construction is suitable for use in concrete and is raintight when used with gasketed covers. Volume is 4 cu. in.

• Tapered threaded hubs (NPT)
• Raintight when used with gasketed covers
• Malleable iron suitable for use in concrete

Product Highlights

Provides access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC. Interchangeable with competitive products.

Product Information

Standard Information

• Brand: KILLARK
• Manufacturer Part Number: OT-1M
• Country of Origin: India

Technical Specifications

• Catalog Number: OT-1M
• Manufacturer: Killark, a Hubbell affiliate
• Brand: Killark
• Sub Brand: DURALOY 5
• Country of Origin: India
• Made in USA: No
• Application: To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
• Color: Gray
• Finish: Powder Epoxy Paint
• Hub Size: 1/2"
• Material: Iron
• Special Features: Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Malleable iron suitable for use in concrete. Interchangeable with competitive products. Volume is 4 cu. in.
• Standard: UL, CSA
• UPC: 783936480725
• GTIN: 00783936480725
• Item Type: Conduit Body
• Length: 6 inch
• Width: 2 inch
• Height: 2 inch
• Series: O Series
• Form: Form 7
• Type: Conduit Body
• Shape: T
• Includes: Stainless Steel Screws
• Back Type: Flat
• Body Type: Conduit Outlet Body
• Hub Style: Threaded
• Trade Size: 1/2 in
• Hub Pattern: T
• Thread Size: 1/2 in
• Thread Type: NPT
• For Use With: IMC, RMC
• Style of Hub: Threaded
• Body Capacity: 4 cu in
• Overall Width: 2 in
• Thread Gender: Female
• Number of Hubs: 3
• Overall Height: 2 in
• Overall Length: 6 in
• Connection Type: Threaded
• Hazardous Location: Yes
• Hazardous Rating(s): Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
• Connection Orientation: Multi-Angle
• Compatible Conduit Type: IMC, RMC
• Conduit Outlet Hub Size: 1/2"
• Conduit Outlet Body Type: Conduit Outlet Body
• Conduit Outlet Body Style: T
• Hazardous Location Rating: Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
• Conduit Outlet Body Capacity: 4.0 cu in
• Conduit Outlet Body Hub Size: 1/2 in
• Conduit Outlet Body Material: Iron
• Compatible Conduit Trade Size: 1/2 in
• Conduit Outlet Body Hub Style: Threaded
