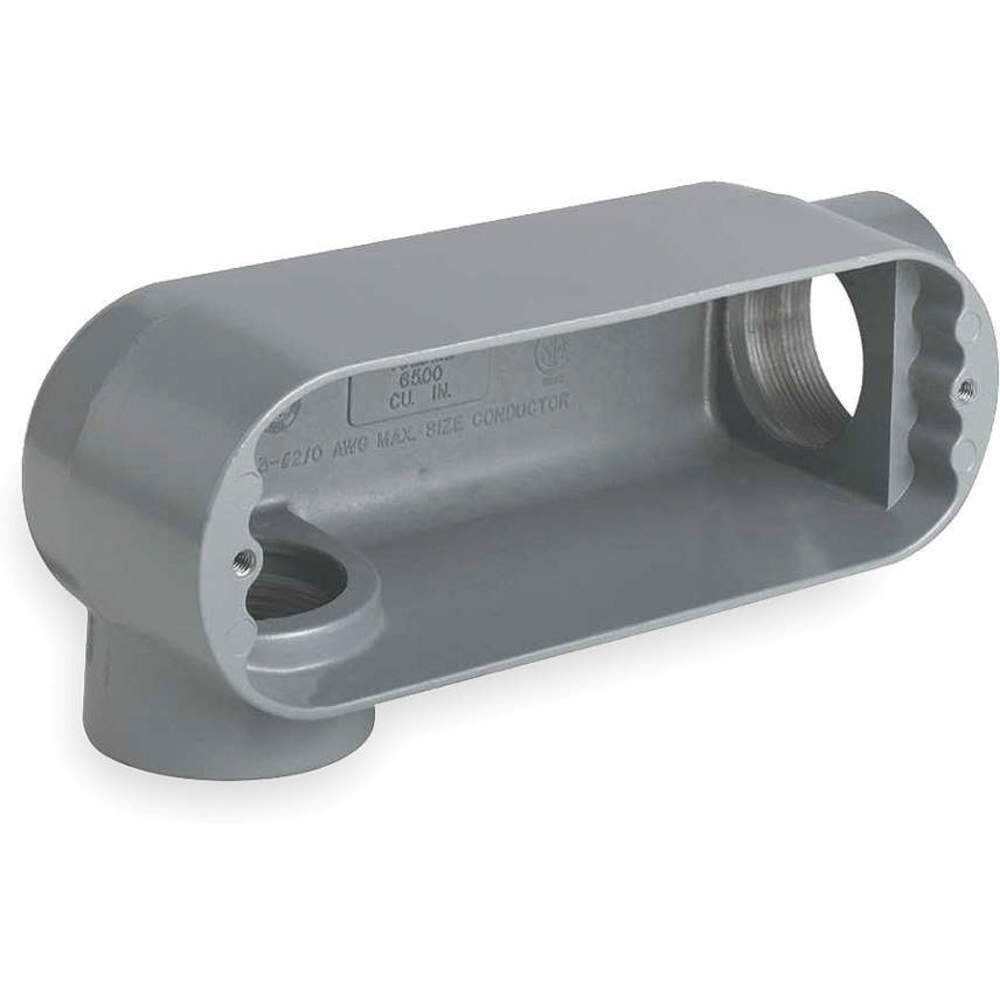

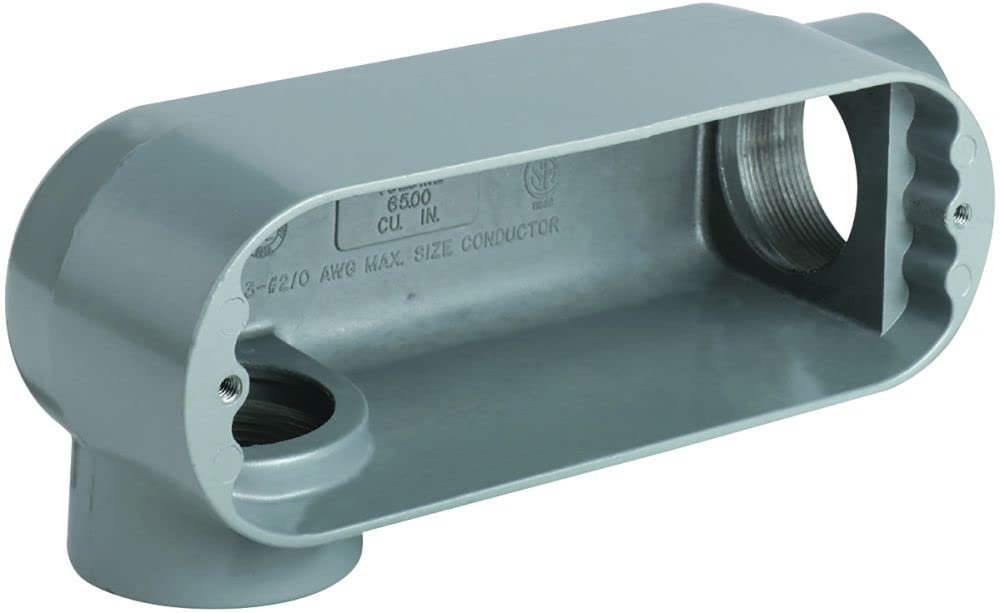

Killark OLR-4 lr type conduit body, aluminium, 1 1/4 inches hub

Product Description

The Killark OLR-4 LR Type Conduit Body is made of aluminum with a 1 1/4" hub. Designed for pulling, splicing, and maintenance, it provides access to conductors. It is raintight when used with gasketed covers and interchangeable with competitive products.

• Tapered threaded hubs (NPT)
• Raintight when used with gasketed covers
• Interchangeable with competitive products

Product Highlights

Aluminum construction ensures durability, while the threaded hubs and raintight design offer secure and reliable performance in various environments.

Product Information

Standard Information

• Brand: Killark
• Manufacturer Part Number: OLR-4
• Country of Origin: United States

Technical Specifications

• Brand: Killark
• Hub Size: 1 1/4"
• Material: Aluminum
• Number of Hubs: 2
• Capacity: 32 cu-in
• Catalog ID: KLROLR-4
• Color: Gray
• Connection Type: Threaded
• Finish: Powder Coated
• Series: O Series
• Type: Type LR
• Application: To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
• Catalog Number: OLR-4
• Hub Pattern: LR
• Hazardous Rating(s): Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
• UL File Number: E3397
• Back Type: Flat
• Body Capacity: 32 cu. in.
• Body Style: LR
• Compatible Conduit Trade Size: 1 1/4"
• Compatible Conduit Type: IMC, RMC
• Composition: Aluminum
• Connection Orientation: 90
• Cover Included: No
• Design Type: Flat Back
• Exposure Rating: Indoor, Outdoor
• For Use With: IMC, RMC
• Gasket Included: No
• Hazardous Location: Yes
• Hazardous Location Class: Yes
• Hazardous Rated: Yes
• Hub Style: Threaded
• Includes: Stainless Steel Screws
• Standards: Csa, Ul
• Thread Gender: Female
• Thread Size: 1 1/4"
• Thread Type: NPT
• Trade Size: 1 1/4"
• Threaded: Threaded
• Type Of Body: Conduit Outlet Body
• Country of Origin: United States
