Product Description

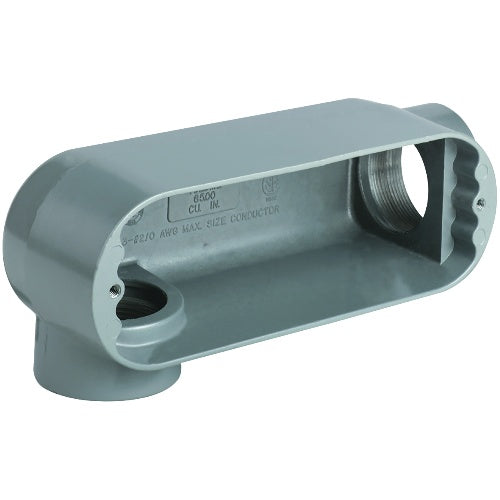

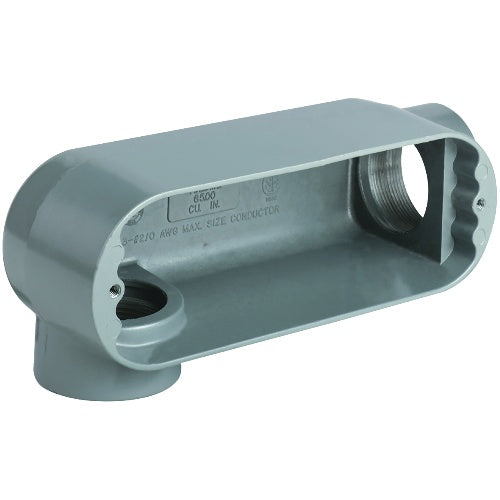

The KILLARK OLR-3M conduit outlet body provides access to conductors for pulling, splicing, and maintenance. This iron O series conduit body has a 1" LR hub and is threaded for rigid conduit and IMC. It is raintight when used with gasketed covers and suitable for use in concrete.
- Tapered threaded hubs (NPT)
- Raintight when used with gasketed covers
- Malleable iron suitable for use in concrete
Product Highlights
This 1-inch conduit outlet body is made of iron, features a powder-coated finish, and is suitable for hazardous locations. It has a body capacity of 12 cu in.
Product Information
Standard Information
-
Brand: KILLARK
-
Manufacturer Part Number: OLR-3M
-
Country of Origin: India
Technical Specifications
-
Item: Conduit Outlet Body
-
Type: Conduit Body
-
Series: O Series
-
Material: Iron
-
Body Type: Conduit Outlet Body
-
Body Style: LR
-
Connection Type: Threaded
-
Finish: Powder Coated
-
Standards: CSA, UL
-
Trade Size: 1 in
-
Hub Size: 1 in
-
Compatible Conduit Trade Size: 1 in
-
For Use With: IMC, RMC
-
Hazardous Location: Yes
-
Connection Orientation: 90 Degrees
-
Compatible Conduit Type: IMC, RMC
-
Number of Hubs: 2
-
Thread Size: 1 in
-
Thread Type: NPT
-
Thread Gender: Female
-
Overall Width: 3 in
-
Overall Height: 2 in
-
Overall Length: 7 in
-
Body Capacity: 12 cu in
-
Includes: Stainless Steel Screws
-
Finish Type: Powder Epoxy Paint
-
Hub Style: Threaded
-
Color: Gray
-
Manufacturer Part Number: OLR-3M
