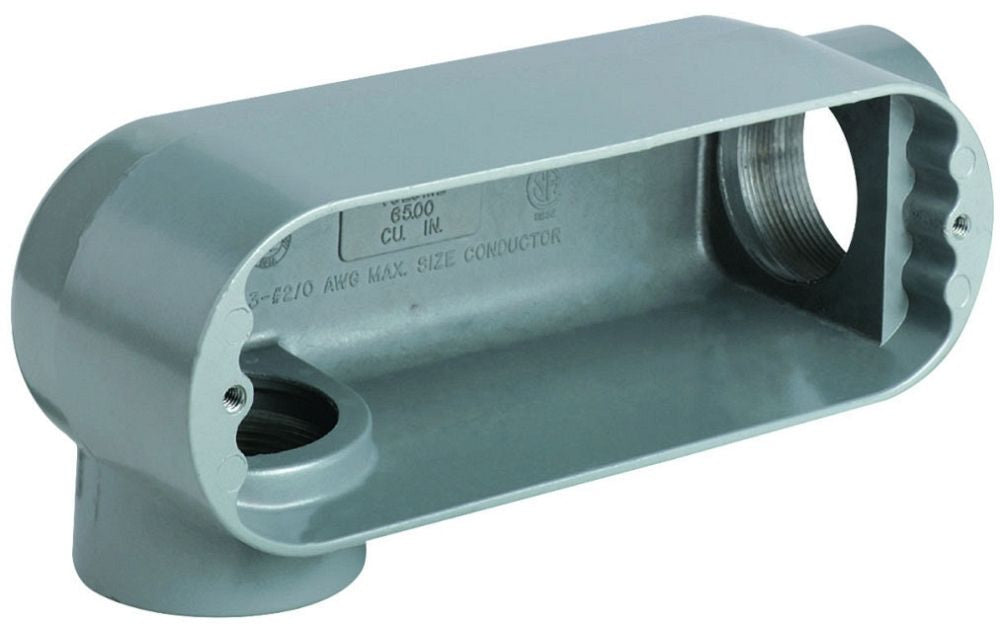

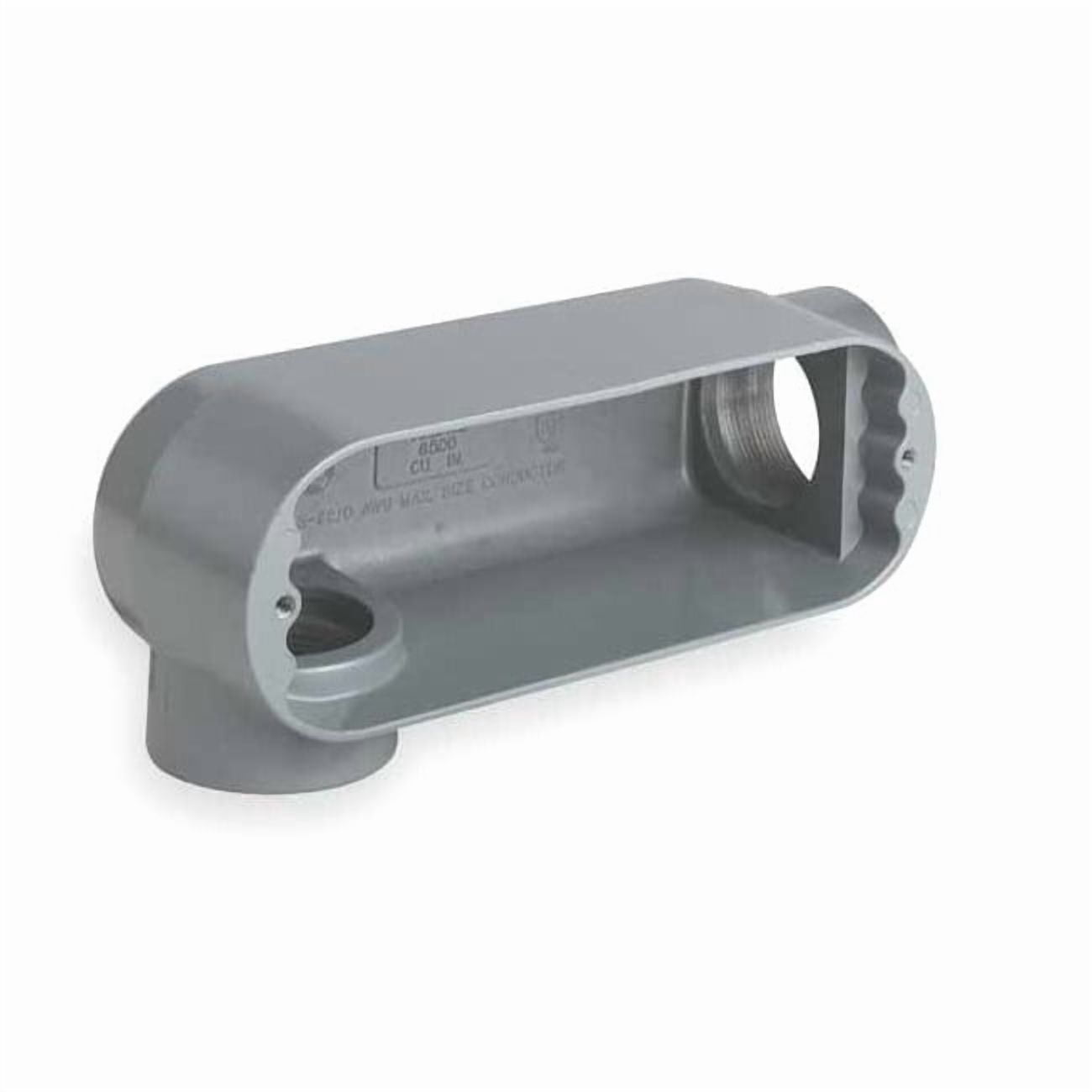

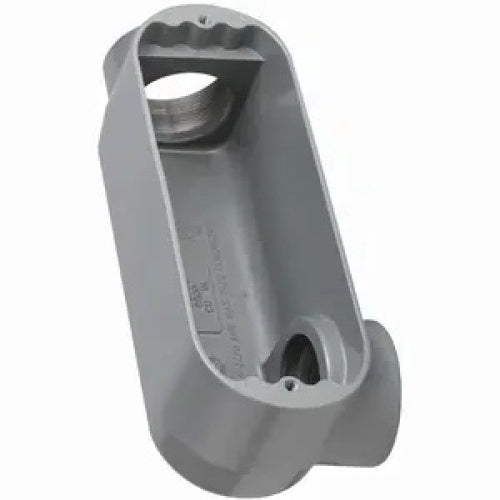

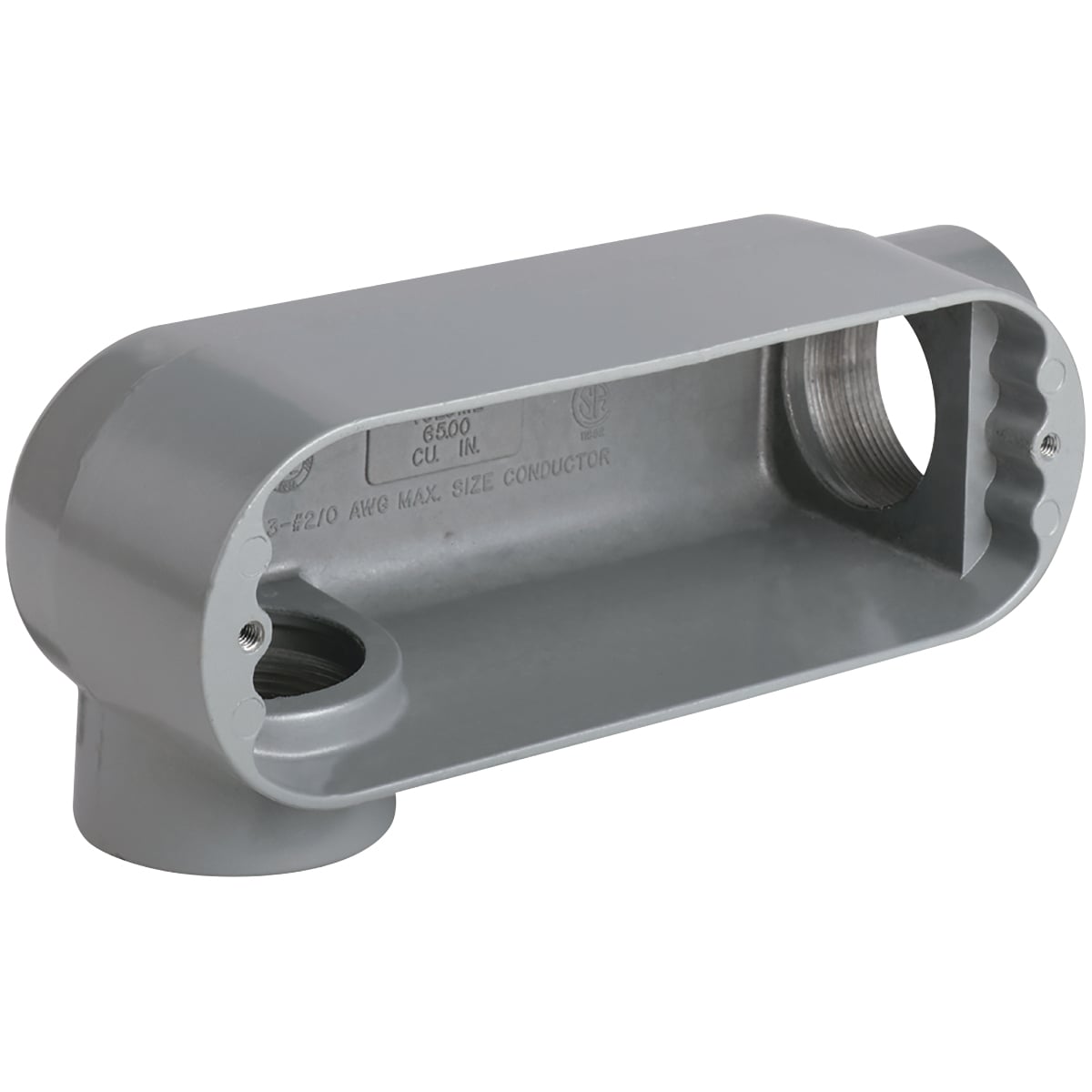

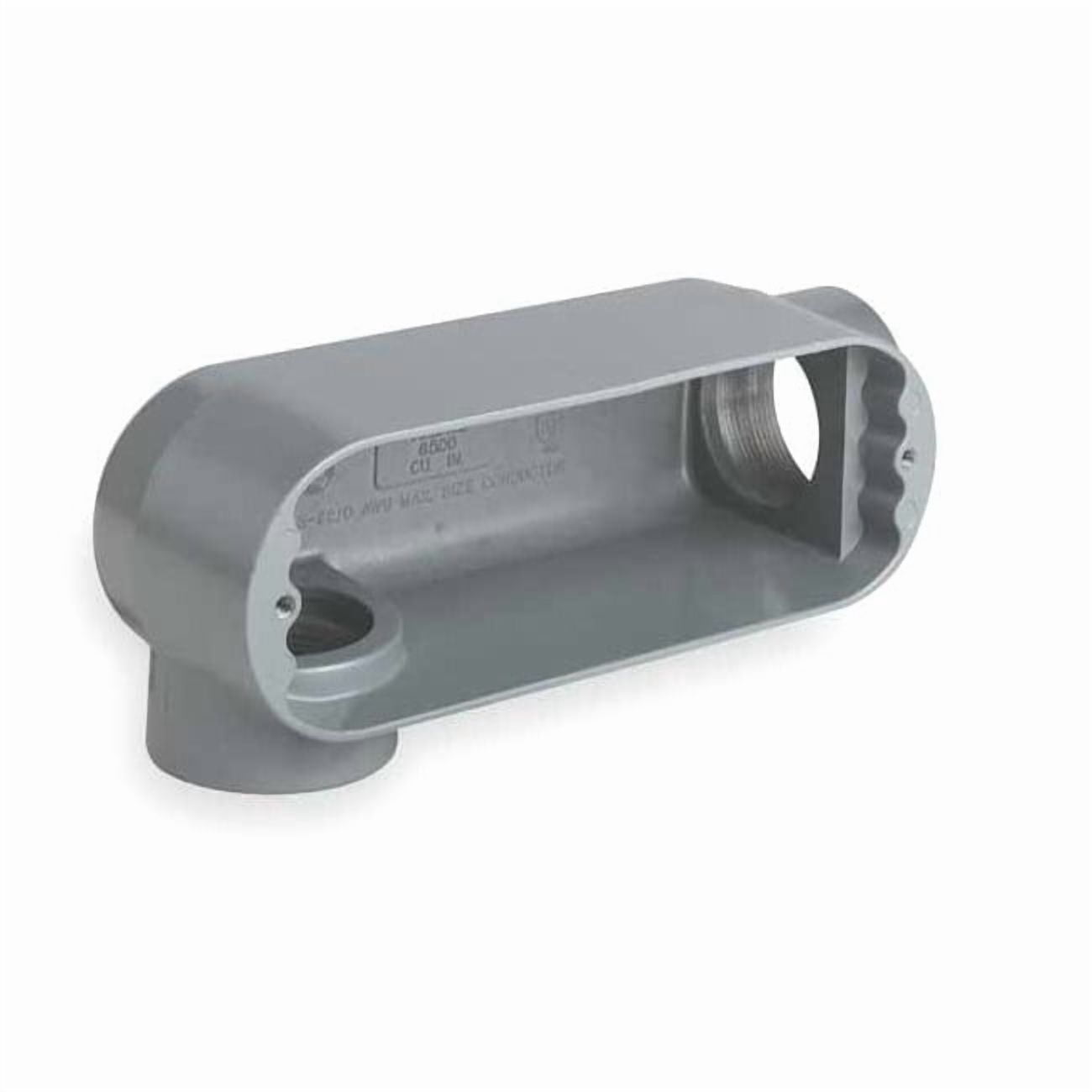

Killark OLR-2M 3/4 in LR hub iron O Series conduit body (3/4 in)

Product Description

The Killark OLR-2M is a 3/4 in LR hub iron O Series conduit body that provides access to conductors for pulling, splicing, and maintenance. It is constructed of malleable iron with a powder epoxy paint finish, features tapered NPT threaded hubs for IMC and rigid conduit, and has a 7 cu in internal capacity with overall dimensions of 6 in x 3 in x 2 in. The unit includes stainless steel screws and is raintight when used with gasketed covers. UL and CSA listed.

• Malleable iron construction with powder epoxy paint; suitable for use in concrete
• Two 3/4 in tapered NPT threaded hubs for IMC and rigid conduit; stainless steel screws; raintight with gasketed covers
• Body capacity 7 cu in; dimensions 6 in x 3 in x 2 in; UL and CSA certified

Product Highlights

3/4 in LR hub conduit body; malleable iron; tapered NPT threads; 7 cu in capacity; stainless steel screws; raintight with gasketed covers

Product Information

Standard Information

• Brand: KILLARK
• Manufacturer Part Number: OLR-2M
• Country of Origin: India

Technical Specifications

• Brand: Killark
• Manufacturer Part Number: OLR-2M
• Manufacturer: Killark (Hubbell affiliate)
• Product Type: Conduit body
• Series: O Series
• Body Style: LR
• Material: Malleable iron
• Finish: Powder epoxy paint
• Hub Size: 3/4 in
• Number of Hubs: 2
• Thread Type: Tapered NPT
• Connection Type: Threaded (IMC, rigid conduit/RMC)
• Body Capacity: 7 cu in
• Dimensions (L x W x H): 6 in x 3 in x 2 in
• Weight: 0.96 lb
• Includes: Stainless steel screws
• Cover Type: Stamped and cast stainless steel screw-on cover
• Compatible Cover: OL-20M
• Compatible Conduit Type: IMC, RMC (rigid conduit)
• Standards / Certifications: UL, CSA
• Application: Provides access to conductors for pulling, splicing, and maintenance; threaded for rigid conduit and IMC
• Country of Origin: India
• Form: 7
• Catalog Number: OLR-2M
• GTIN / UPC: 00783936480633 / 783936480633
