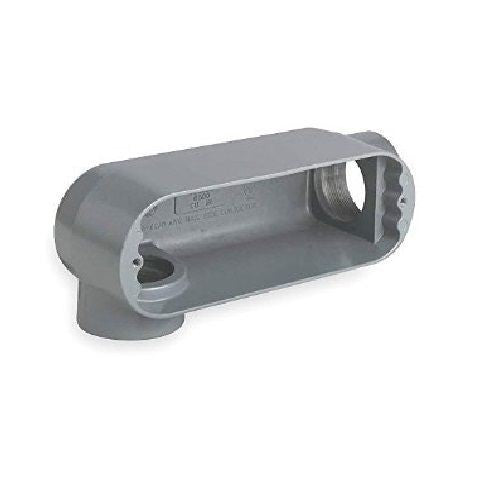

Killark OLR-1 Lr Conduit Body 1/2 in

Product Description

The Killark OLR-1 LR Conduit Body provides access to conductors for pulling, splicing, and maintenance. It is threaded for rigid conduit and IMC. This conduit body is raintight when used with gasketed covers and interchangeable with competitive products. Volume is 4 cu. in.

• Raintight when used with gasketed covers.
• Malleable iron suitable for use in concrete.
• Interchangeable with competitive products.

Product Highlights

The Killark OLR-1 is suitable for use in hazardous locations and features tapered threaded hubs (NPT).

Product Information

Standard Information

• Brand: Killark
• Manufacturer Part Number: OLR-1
• Country of Origin: United States

Technical Specifications

• Application: To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
• Catalog Number: OLR-1
• Color: Gray
• Hub Pattern: LR
• Material: Aluminum, Copper Free (less than 4/10 of 1%)
• Series: O Series
• Type: Conduit Body
• UPC: 783936490519
• Hub Size: 1/2 in
• Hazardous Rating(s): Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
• UL File Number: E3397
• Carton Quantity: 10
• Number of Hubs: 2
• Capacity: 4 cu-in
• Catalog ID: KLROLR-1
• Connection Type: Threaded
• Finish: Powder Coated
• Form: 7
• Standard & Approvals: UL E3397 Listed, CSA LR11852 Certified, RoHS Compliant
• Trade Size: 1/2 in
• Compatible Conduit Trade Size: 1/2 in
• Item: Conduit Outlet Body
• Hazardous Location: Yes
• Conduit Outlet Body Capacity: 4.0 cu in
• Includes: Stainless Steel Screws
• Conduit Outlet Body Hub Style: Threaded
• For Use With: IMC, RMC
• Special Features: Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Interchangeable with competitive products. Volume is 4 cu. in.
• Back Type: Flat
• Standards: CSA, UL
• Body Style: LR
• Thread Gender: Female
• Body Type: Conduit Outlet Body
• Connection Orientation: 90 Degrees
• Thread Type: NPT
• Body Capacity: 4 cu in
• Shape: LR
• Compatible Cover: OL-10
• Compatible Conduit Type: IMC, RMC
• Finish Type: Powder Epoxy Paint
