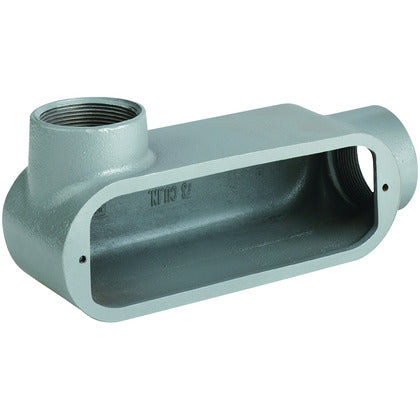

Killark OLL-8M Conduit Body, 181 cu. in. Capacity, 3 inches Hub

Product Description

The KILLARK OLL-8M conduit outlet body has a capacity of 181 cu. in. and a 3" hub. It is made of iron with a powder-coated gray finish and is suitable for use in hazardous locations. It provides access to conductors for pulling, splicing, and maintenance with threaded rigid conduit and IMC.

• Set Screw Hubs
• Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
• To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.

Product Highlights

Provides access to conductors for maintenance. Features threaded connection and is suitable for hazardous locations.

Product Information

Standard Information

• Brand: KILLARK
• Manufacturer Part Number: OLL-8M
• Country of Origin: India

Technical Specifications

• Item: Conduit Outlet Body
• Type: Conduit Body
• Color: Gray
• Shape: LL
• Width: 5.500 in
• Finish: Powder Coated
• Height: 8.25 in
• Length: 18.5 in
• Series: O
• Hub Size: 3 in
• Material: Iron
• Body Type: Conduit Outlet Body
• Hub Style: Threaded
• Standards: CSA, UL
• Body Style: LL
• Dimensions: 18.5 in x 5.5 in x 8.25 in
• Application: To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
• Finish Type: Powder Epoxy Paint
• Hub Pattern: LL
• Thread Size: 3 in
• Thread Type: NPT
• For Use With: IMC, RMC
• Style of Hub: Threaded
• Body Capacity: 173 cu in
• Thread Gender: Female
• Number of Hubs: 2
• Connection Type: Threaded
• Compatible Cover: OL-80M
• Special Features: Set Screw Hubs
• Hazardous Location: Yes
• Hazardous Rating(s): Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
• Connection Orientation: 90 Degrees
• Compatible Conduit Type: IMC, RMC
• Conduit Outlet Hub Size: 3"
• Conduit Outlet Body Type: Conduit Outlet Body
• Conduit Outlet Body Style: LL
• Hazardous Location Rating: Class I, Division 2, Class I, Zone 2
• Conduit Outlet Body Capacity: 173.0 cu in
• Conduit Outlet Body Hub Size: 3 in
• Conduit Outlet Body Material: Iron
• Compatible Conduit Trade Size: 3 in
• Conduit Outlet Body Hub Style: Threaded
• Catalog Number: OLL-8M
• UPC: 783936480596
• Part Number: OLL8M
• Brand: Killark
