Killark OLL-5 Ll Conduit Body 1-1/2 Inch Aluminum

Product Description

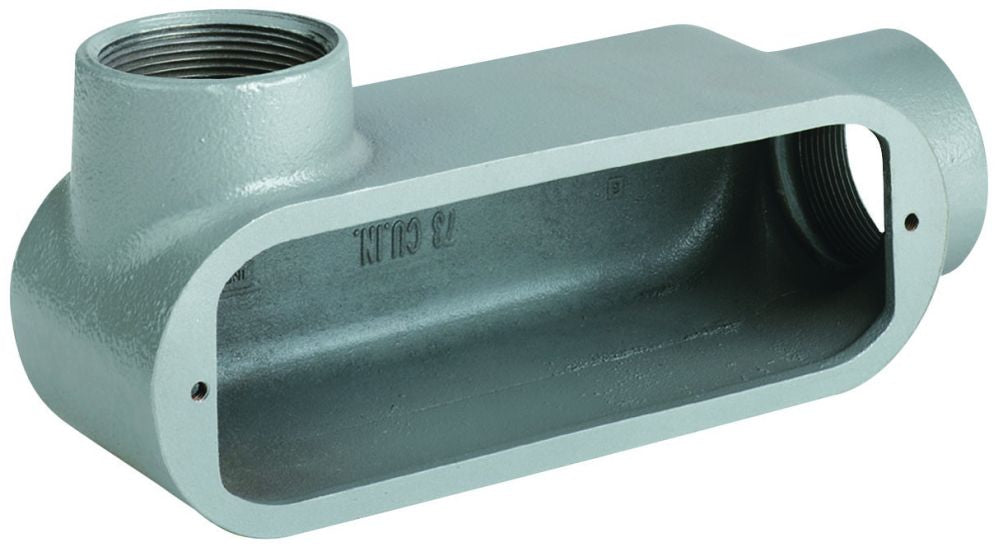

The KILLARK OLL-5 is a 1-1/2 inch aluminum LL-type conduit body designed for use in electrical conduit systems where a 90-degree directional change is required with two access points. Cast from aluminum, this conduit body provides a lightweight yet durable enclosure for pulling and splicing conductors at elbow transitions. Licensed electricians install this fitting in both exposed and concealed raceway systems. The LL configuration positions one cover on the back and routes conduit entries on two perpendicular sides, making it suitable for corner transitions along walls or structural surfaces.

This conduit body is used in commercial and industrial electrical installations where rigid metal conduit or intermediate metal conduit systems require direction changes at 90-degree corners. It is appropriate for use in dry, damp, or wet locations depending on the gasket and cover configuration used. Typical applications include panel feeds, motor branch circuits, and junction points along conduit runs in manufacturing facilities, warehouses, and commercial construction.

Key Features

• LL-type body allows 90-degree conduit transition with dual side-entry configuration
• 1-1/2 inch trade size fits standard rigid and IMC conduit fittings
• Aluminum construction provides corrosion resistance and reduced weight
• Removable cover plate allows conductor access for pulling and splicing
• Compact form factor suits tight corner installations along walls and ceilings

Compatibility

Designed as an OEM-style replacement and standard fitting for 1-1/2 inch rigid metal conduit and intermediate metal conduit raceway systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize all circuits before opening or working within any conduit body. Do not exceed the conductor fill capacity specified by NEC Article 314 for the trade size and body type. Secure the cover with all fasteners after conductor work is complete to maintain the enclosure rating.

Technical Specifications

• Trade Size: 1-1/2 inches
• Body Type: LL
• Material: Aluminum
• Package Dimensions (L x W x H): 10.25 inches x 5.00 inches x 5.25 inches
• Weight: 1.42 pounds
• UPC: 78393649045

Standard Information

• Brand: KILLARK
• Manufacturer Part Number: OLL-5
