Killark OLL-4M 1-1/4 inches LL Hub, Iron O Series Conduit Body

Product Description

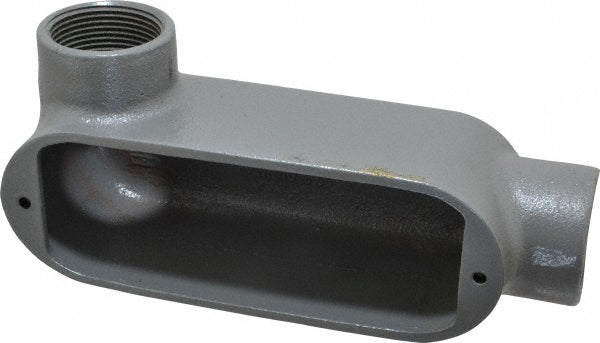

The KILLARK OLL-4M 1-1/4" LL Hub, Iron O Series Conduit Body provides access to conductors for pulling, splicing, and maintenance. It is threaded for rigid conduit and IMC. The malleable iron construction is suitable for use in concrete and is raintight when used with gasketed covers. The body capacity is 32 cu. in.

• Tapered threaded hubs (NPT)
• Raintight when used with gasketed covers
• Malleable iron suitable for use in concrete

Product Highlights

This iron conduit body features tapered threaded hubs, raintight construction, and is suitable for hazardous locations. It is designed for pulling, splicing, and maintenance of conductors.

Product Information

Standard Information

• Brand: KILLARK
• Manufacturer Part Number: OLL-4M
• Country of Origin: India

Technical Specifications

• Catalog Number: OLL-4M
• Manufacturer: Killark, a Hubbell affiliate
• Brand: KILLARK
• Sub Brand: DURALOY 5
• Country of Origin: India
• Made in USA: No
• Application: To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
• Color: Gray
• Finish: Powder Epoxy Paint
• Material: Iron
• Special Features: Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Malleable iron suitable for use in concrete. Interchangeable with competitive products. Volume is 32 cu. in.
• Standard: UL, CSA
• UPC: 783936480558
• GTIN: 00783936480558
• Item Type: Conduit Body
• Length: 8.125 inch
• Width: 3.5 inch
• Height: 2.625 inch
• Form: Form 7
• Type: Conduit Body
• Shape: LL
• Series: O Series
• Hub Size: 1-1/4
• Includes: Stainless Steel Screws
• Back Type: Flat
• Body Type: Conduit Outlet Body
• Hub Style: Threaded
• Trade Size: 1 1/4 in
• Thread Size: 1 1/4 in
• Thread Type: NPT
• Body Capacity: 32 cu in
• Thread Gender: Female
• Number of Hubs: 2
• Hazardous Location: Yes
• Hazardous Rating(s): Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
• Connection Orientation: 90 Degrees
• Compatible Conduit Type: IMC, RMC
• Conduit Outlet Hub Size: 1-1/4"
• Conduit Outlet Body Type: Conduit Outlet Body
• Conduit Outlet Body Style: LL
• Conduit Outlet Body Capacity: 32.0 cu in
• Conduit Outlet Body Hub Size: 1 1/4 in
• Conduit Outlet Body Material: Iron
• Compatible Conduit Trade Size: 1 1/4 in
• Conduit Outlet Body Hub Style: Threaded
• Recommended Environment: Wet Locations; Hazardous Locations
• Resistance Features: Rain-Tight
• Standards Met: Federal Specification W-C-586D; NEC Article 501.10 (b) Class I Division 2; Federal Specification A-A-50563; CSA File LR11852 Certified; NEC Article 502.10; NEC Article 503.10; UL Listed File E3397
• UNSPSC Code: 39121300
• Conduit Body Type: LL
• Conduit Type: IMC; Rigid
• Volume Capacity (Cu. In.): 32
