KILLARK Killark OLL-3M O-Series Conduit Body 1 inches LL Hub
KILLARK Killark OLL-3M O-Series Conduit Body 1 inches LL Hub

Killark OLL-3M O-Series Conduit Body 1 inches LL Hub

Brand: KILLARK
SKU: OLL-3M
Availability: In Stock

Ships same day if ordered by 12 pm
$30.77
$30.77
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

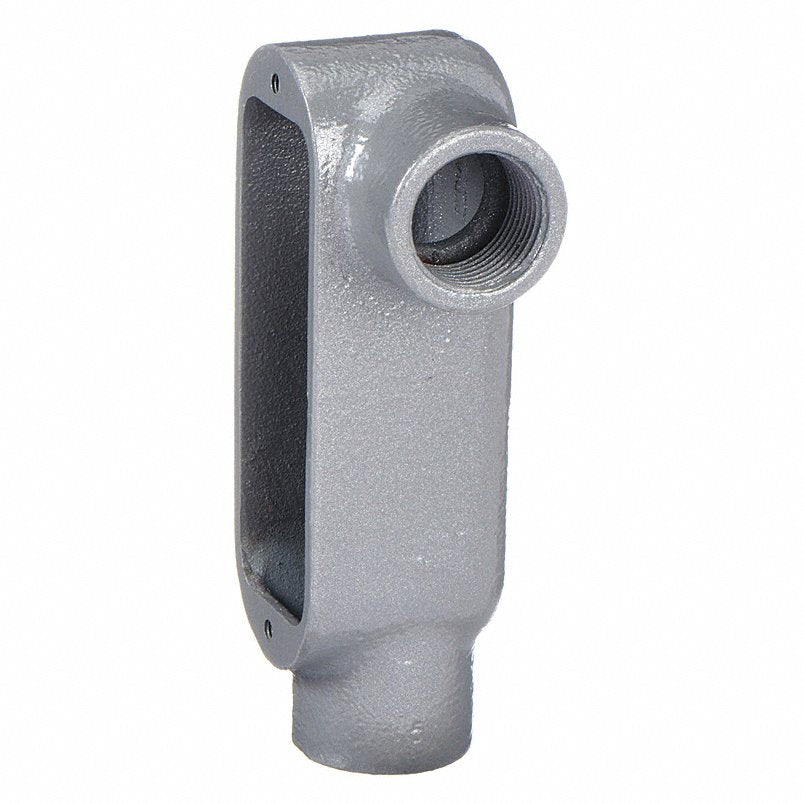

The KILLARK OLL-3M is a 1" LL Hub, Iron O Series Conduit Body. It provides access to conductors for pulling, splicing, and maintenance. This conduit body is threaded for rigid conduit and IMC. It is raintight when used with gasketed covers and suitable for use in concrete.

  • Threaded hubs (NPT)
  • Raintight when used with gasketed covers
  • Malleable iron suitable for use in concrete

Product Highlights

This conduit body features tapered threaded hubs and is raintight when used with gasketed covers. It is made of malleable iron and is suitable for use in concrete.

Product Information

Standard Information

  • Brand: KILLARK
  • Manufacturer Part Number: OLL-3M
  • Country of Origin: India
Technical Specifications
Series
O Series
Hub Size
1 in
Material
Malleable Iron
Body Style
LL
Connection Type
Threaded
Compatible Conduit Type
IMC, RMC
Trade Size
1 in
Application
To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
Number of Hubs
2
Overall Width
2 9/16 in
Overall Height
2 in
Overall Length
6 1/4 in
Compatible Cover
OL-30M
Hazardous Location
Yes
Connection Orientation
90 Degrees
Body Capacity
12 cu in
Form
Form 7
Item
Conduit Outlet Body
Type
Conduit Body
Width
2.563 in
Finish
Powder Epoxy Paint
Height
2 in
Length
6.25 in
Includes
Stainless Steel Screws
Back Type
Flat
Hub Style
Threaded
Standards
CSA, UL
Finish Type
Powder Epoxy Paint
Hub Pattern
LL
Thread Size
1 in
Thread Type
NPT
For Use With
IMC, RMC
Thread Gender
Female
Special Features
Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Malleable iron suitable for use in concrete. Interchangeable with competitive products. Volume is 12 cu. in.
Hazardous Rating(s)
Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
Conduit Outlet Hub Size
1"
Conduit Outlet Body Type
Conduit Outlet Body
Conduit Outlet Body Style
LL
Conduit Outlet Body Capacity
12.0 cu in
Conduit Outlet Body Material
Iron
Compatible Conduit Trade Size
1 in
Conduit Outlet Body Hub Style
Threaded
Country of Origin (subject to change)
India
Brand
Killark
Capacity
12 cu-in
